MR-J5 MR-JETMachine diagnosis (total travel distance)
Sample
screen End user Predictive
maintenance Maintenance
screen End user Predictive
maintenance Maintenance
GT27
GT25
GT21
GT SoftGOT2000
(Single-ch) GT SoftGOT2000
(Multi-ch)
(Single-ch) GT SoftGOT2000
(Multi-ch)
The on-site GOT provides information on when to replace and maintain servo motors and machine parts
Challenges
I want to know the replacement and maintenance timing for the servo motor and other mechanical parts.
Solutions

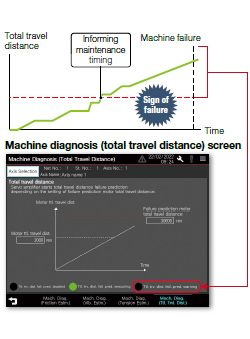

The GOT displays the total travel distance of the servo motor as an estimate for determining the timing of replacement and maintenance of both the servo motor and mechanical parts.
By setting [Pr. PF34.2 Servo motor total travel distance failure prediction warning selection], a warning will be displayed when the total travel distance of the servo motor exceeds the threshold.
- *The screen image shown is the connection sample screen of MR-J5-□G.
●: Supported - : Not supported
| No. | Function |
MR-J5-□G(-RJ) MR-J5W2-□G MR-J5W3-□G |
MR-J5D1-□G4 MR-J5D2-□G4 MR-J5D3-□G4 |
MR-J5-□B(-RJ) MR-J5W2-□B MR-J5W3-□B |
MR-J4-□B(-RJ) MR-J4W2-□B MR-J4W3-□B |
MR-J4-□A-RJ | MR-J4-□GF(-RJ) | MR-JET-□G | MR-JE-□B | MR-JE-□A | MR-JE-□C |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Machine diagnosis (total travel distance) | ● | ● | ● | - | - | - | ● | - | - | - |
