Heat Pipe
We provide both single-bore and double-bore types of heat pipes with various cross-section geometries available depending on the customer’s requirements, such as heat transport capability, width and height, flanges, proof and burst pressure, etc. Also, we can provide them as 3-D bent heat pipes with our precision bending techniques.
Heat Pipe
- More than 13,500 units have been delivered to global customers since 1987. No failure reported.
- Reduced wall thickness and grooves added for 10-20% mass reduction
- Fixed-conductance aluminum/ammonia heat pipes
- Single-bore and double-bore types are available as a standard.

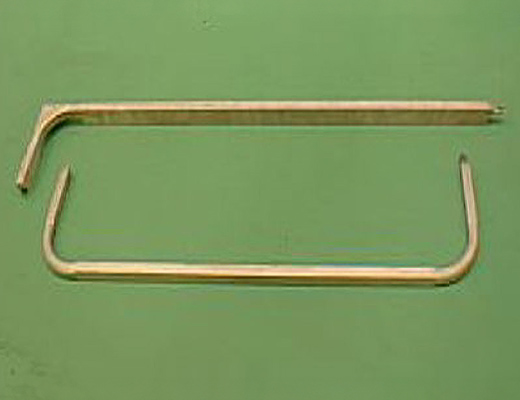

Single-bore Heat Pipe

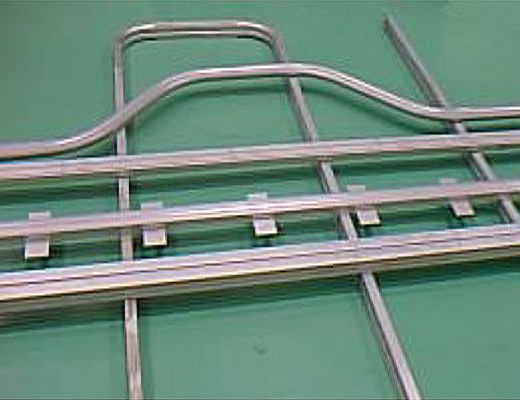

Double-bore Heat Pipe

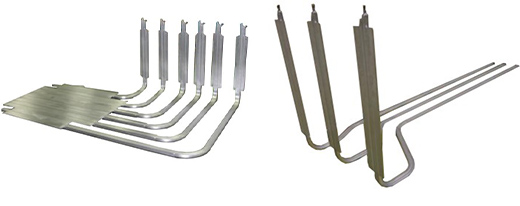

3-D bent Heat Pipe
Data Sheets
Heat Pipe (Single-bore/ Double bore)
3-D Printed Heat Pipe (Under Development)
- Developed through MELCO’s in-house research & development (R&D).
- Intended for use of thermal control inside the heat generating components.
- BBM of groove structure design has been built for assessment and will be qualified by 2025.

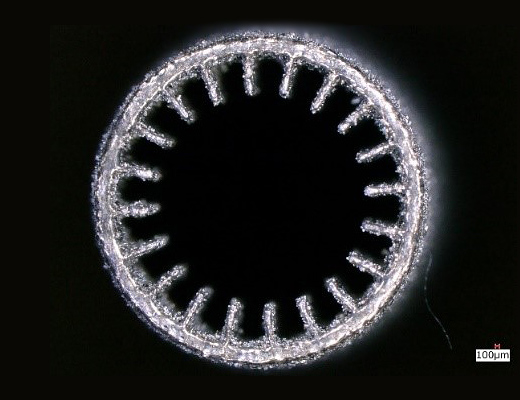

Cross-section of 3-D Heat Pipe
Data Sheets
Coming soon
