Basic operationBasic operation

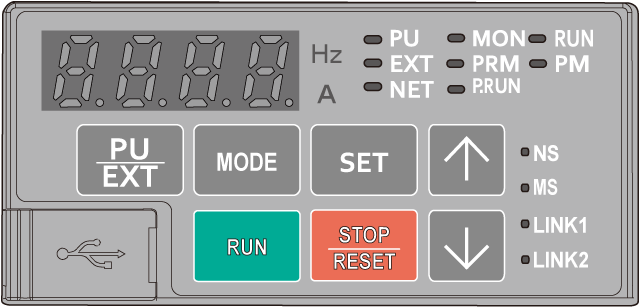

Components of the operation panel

PU/EXT key
Switches between the PU operation mode, the PUJOG operation mode, and the External operation mode.
MODE key
Switches the operation panel to a different mode.
SET key
Used to confirm each selection.
Switches the monitor screen in the monitor mode.
RUN key
Start command
The direction of motor rotation depends on the Pr.40 setting.
STOP/RESET key
Used to stop operation commands.
Used to reset the inverter when the protective function is activated.
UP/DOWN key ( ↑ ↓ )
Press this key to change the setting of frequency or parameter.

Basic operation

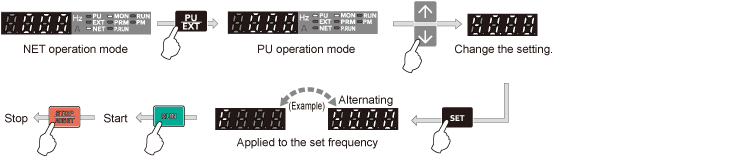

Starting/stopping the inverter on the operation panel

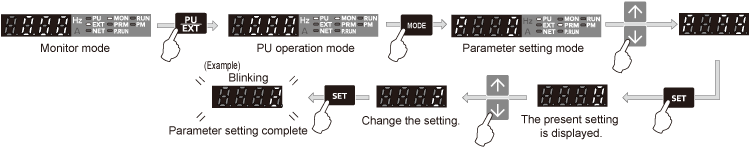

Parameter setting

Simple mode parameters

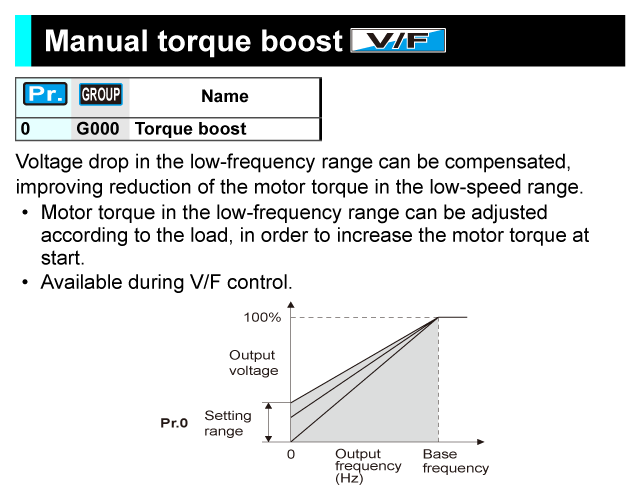

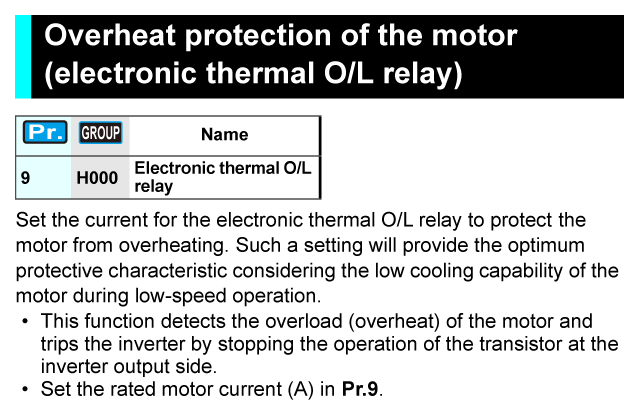

Pr.
Pr.group
Name
0
G000
Torque boost
Setting range
Minimum
setting increments
0 to 30%
0.1%
6%/4%/3%/2%/1%

Set the output voltage at 0Hz in %.

DetailsClose


Click to enlarge

Pr.
Pr.group
Name
1
H400
Maximum frequency
Setting range
Minimum
setting increments
0 to 120Hz
0.01Hz
120Hz

Set the upper limit of the output frequency.

DetailsClose


Click to enlarge

Pr.
Pr.group
Name
2
H401
Minimum frequency
Setting range
Minimum
setting increments
0 to 120Hz
0.01Hz
0Hz

Set the lower limit of the output frequency.

DetailsClose


Click to enlarge

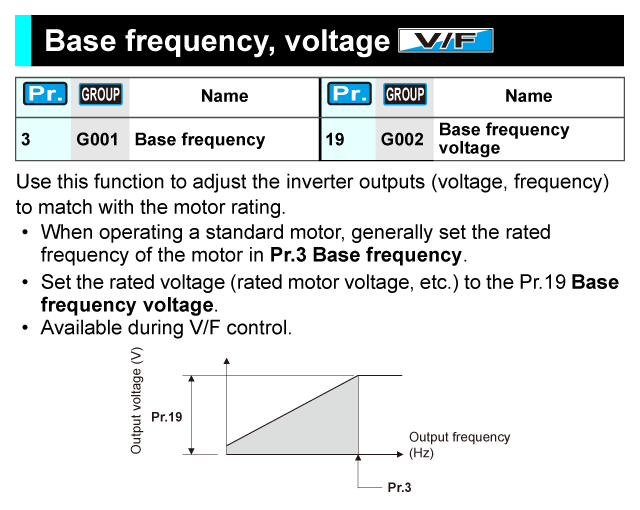

Pr.
Pr.group
Name
3
G001
Base frequency
Setting range
Minimum
setting increments
0 to 400Hz
0.01Hz
50Hz/60Hz

Set the frequency at the rated motor torque.(50Hz/60Hz)

DetailsClose


Click to enlarge

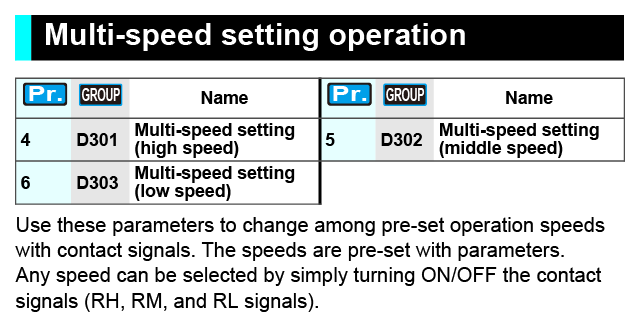

Pr.
Pr.group
Name
4
D301
Multi-speed setting (high speed)
Setting range
Minimum
setting increments
0 to 400Hz
0.01Hz
60Hz

Sets the frequency when RH is ON.

DetailsClose


Click to enlarge

Pr.
Pr.group
Name
5
D302
Multi-speed setting (middle speed)
Setting range
Minimum
setting increments
0 to 400Hz
0.01Hz
30Hz

Sets the frequency when RM is ON.

DetailsClose


Click to enlarge

Pr.
Pr.group
Name
6
D303
Multi-speed setting (low speed)
Setting range
Minimum
setting increments
0 to 400Hz
0.01Hz
10Hz

Sets the frequency when RL is ON.

DetailsClose


Click to enlarge

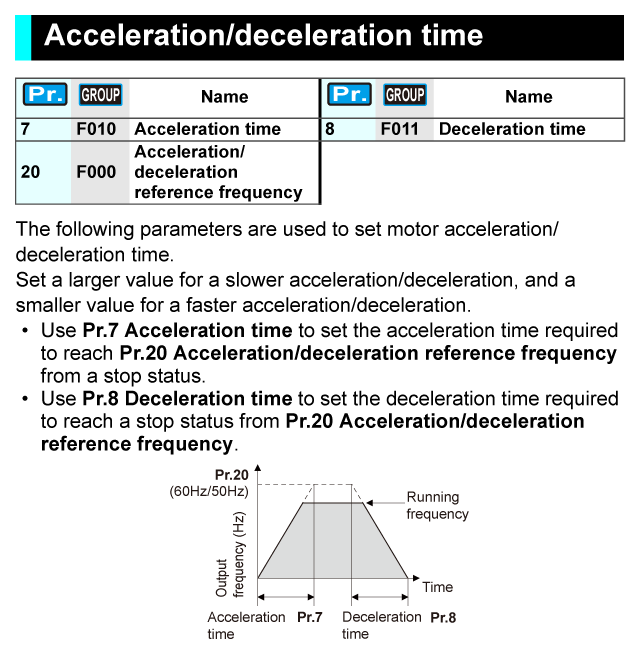

Pr.
Pr.group
Name
7
F010
Acceleration time
Setting range
Minimum
setting increments
0 to 3600s
0.1s
5s/15s

Set the motor acceleration time (from stop status to Pr.20).

DetailsClose


Click to enlarge

Pr.
Pr.group
Name
8
F011
Deceleration time
Setting range
Minimum
setting increments
0 to 3600s
0.1s
5s/15s

Set the motor deceleration time (from Pr.20 to stop status).

DetailsClose


Click to enlarge

Pr.
Pr.group
Name
9
H000
C103
Electronic thermal O/L relay
Setting range
Minimum
setting increments
0 to 500A
0.01A
Inverter rated current

Set the rated motor current. Electronic thermal O/L relay invalid

DetailsClose


Click to enlarge
