MELSERVO-J4 Series Direct Drive Motor

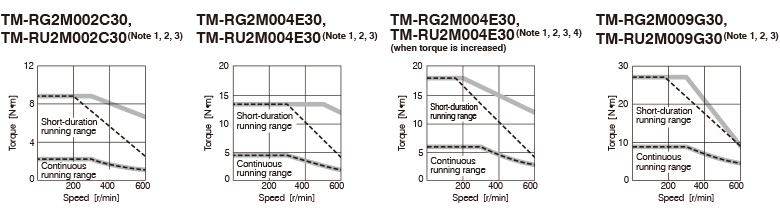

TM-RG2M/TM-RU2M Series Torque Characteristics

TM-RG2M/TM-RU2M Series Torque Characteristics

Notes:
  • 三相AC200V: For 3-phase 200 V AC or 1-phase 230 V AC.
  • AC100: For 1-phase 200 V AC or 1-phase 100 V AC.
  • Torque drops when the power supply voltage is below the specified value.
  • This value is applicable when the rated and maximum torques are increased with a combination with a larger-capacity servo amplifier. Refer to ”Combinations of Direct Drive Motor and Servo Amplifier”.
page top

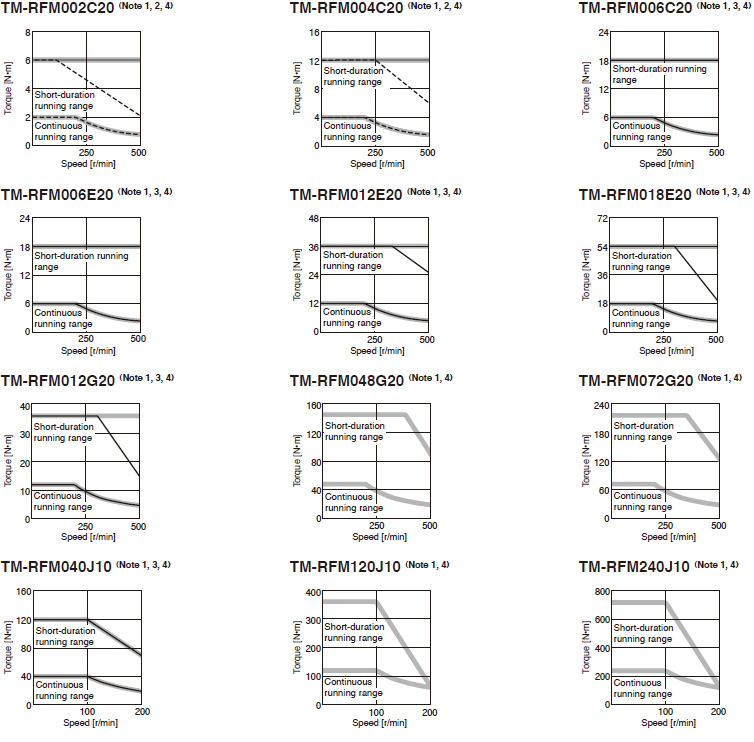

TM-RFM Series Torque Characteristics

TM-RFM Series Torque Characteristics

Notes:
  • 三相AC200V: For 3-phase 200 V AC or 1-phase 230 V AC.
    The following direct drive motors are compatible with 1-phase 230 V AC:
    TM-RFM002C20, TM-RFM004C20, TM-RFM006C20, TM-RFM006E20, TM-RFM012E20,
    TM-RFM018E20, TM-RFM012G20, TM-RFM040J10
  • AC100: For 1-phase 200 V AC or 1-phase 100 V AC.
  • AC200V: For 1-phase 200 V AC.
  • Torque drops when the power supply voltage is below the specified value.
page top
  • * The characteristics and numerical values without tolerances are representative values.
