Low-voltage Switchgear
Low-voltage Motor Control Center Type D-MCC
IEC61439 - 1/2 - compliant, space-saving and advanced utility and usability to meet the needs of the times.
Front Operation / Maintenance
- Enabling operation and maintenance from the front through revised part layout and installation method.
- Front operation/maintenance is possible, making this product optimal for wall mounting in general power rooms and package house-type power rooms*.
- The withdrawable unit is equipped with an autoconnect function for the main circuit and
control
circuit.

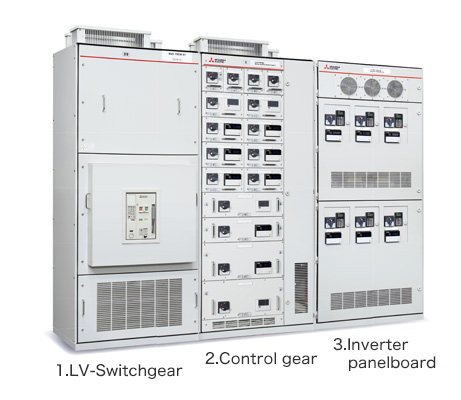

1. LV- Switchgear
2. Controlgear
*Needs to be at least 50mm from the wall
Space-saving
- By using the same frame for individual housings 1. LV-Switchgear through 3. Inverter panelboard, we have reduced the footprint compared to our conventional products with identical specifications. Footprint has been reduced by 45%.
High-capacity Storage
- Each panel stores up to 40 of the newly-developed compact units.
2. Controlgear - Busbar energizing current has been improved by 2-fold due to a new one-sided structure, and up to 6 units can be stored on each panel.
3 Inverter panelboard
Flexibility
-
Also responds flexibly to changes in unit rating on the shop floor.
2.Controlgear (Withdrawable unit)
3.Inverter panelboard (1/6 (DL6), 1/4 (DL4), 1/2 (DL2) unit)
Safety
- Complies with internal separation Form 4b of IEC 61439-1/2
1.LV- Switchgear 2.Controlgear - Complies with internal separation Form 2b of IEC 61439-1/2

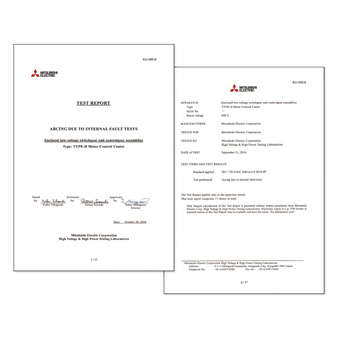

3.Inverter panelboard - Supports IEC TR61641 Internal Arc Fault (Option)Arcing class classification: Arcing
class
B
1.LV- Switchgear 2.Controlgear
Operation/maintenance/motor deterioration diagnosis support

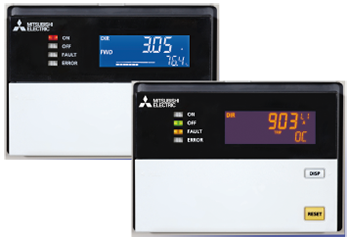

- EMC Type-B (EMC-B) not only enables direct operations and collection of operation-related information, but also features a transmission system making it possible to control the operations of devices and equipment remotely and collect information thereof. (Complies with the latest IEC61439-1)
- EMC Type-B (EMC-BA-PRO) can perform diagnosis to determine the level of deterioration of a motor’s mechanical components (bearing faults, etc.) and electrical components (layer short faults).
- Communication (Option)
2.Controlgear⇒CDL transmission system, Modbus®-RTU transmission system
3.Inverter panelboard⇒CDL transmission system
Secure
- Equipped with the latest security mechanisms
Easy Operation
- Simple to use
- Quick learning process
Energy-saving
- Features LCD “Normally OFF” mode
- Measures electrical energy
- Features 0-1mA DC current output
- Uses a low-capacity regulating transformer
Expanded User Support
- Provides 3-mode restart function after instantaneous voltage drops
- Provides running time/countbased alarms
- Permits setting of target current
- Ample test functions
Universal Design
- The visibility of the MCCB operation panel and color tone/writing on LED displays has been improved, making it possible to visually confirm operating status even from a distance.
Panel Specifications
Items | Switchgear | Controlgear | Inverter panelboard |
---|---|---|---|
Applied standard | IEC61439-1/2 | ||
Motor control center construction | Front access | ||
Insulation voltage | 1000V | ||
Busbar current (Horizontal) | 800A, 1000A, 1200A, 1600A, 2000A, 2500A, 3200A, 4000A | ||
Voltage | Up to 690V | ||
Bus system | 3φ3W/3φ4W | ||
Short-time withstand current (Horizontal busbar, Vertical busbar) | Up to 85kA/1sec | ||
Front of internal separation | 4b (*2) | 4b | 2b |
Frequency | 50/60Hz | ||
Degree of protection | Up to IP43 | Up to IP41 | |
Unit Connection method Main circuit | Automatic type | Automatic type/Fixed type | Fixed type |
Unit Connection method Control circuit | Automatic type | Automatic type/Fixed type | Fixed type |
Insulated busbar(*1) | Horizontal busbar | Horizontal busbar/Vertical busbar | Horizontal busbar |
Earth busbar | Horizontal | Horizontal/Vertical(*3) | Horizontal |
Internal arc withstand current (*1)(*4) | 85kA/0.3sec at 690V | 65kA/0.3sec, (85kA/0.3sec(*8) )at 480V | - |
Arcing class classification(*1)(*4) | Arcing class B | - | |
Unit capacity | By the unit capacity of the following | ||
Location | indoor | ||
Height(*5) | 2370mm | 2200mm | |
Depth(*5) | 600mm | ||
Width(*5) | 800 to 1300mm | 1000mm |
- *1 Option
- *2 The standard (From 4b) applies to "Incomer". "Outgoing feeder" and "Bus tie" (includes Bus riser).
- *3 Only Vertical Earth busbar is optional. Horizontal Earth busbar is a standard feature.
- *4 Applied standard: IEC TR61641
- *5 Please refer to P10 (2)Space-saving structure installation dimensions of the product catalog.
- *8 To be released later.
