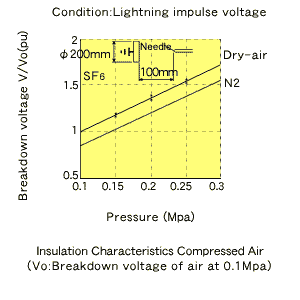

Adoption of dry air The use of compressed dry air provides the insulation resistance equivalent to the SF6 gas in non-uniform electric field. (0.07 MPa at 20°C)
BH-2 circuit breaker operation mechanism The adoption of new-type operation mechanism has further improved the reliability.
Plug-in cable termination (IEEE386) Compared with the conventional wedge clamping type cable end terminal box, the plug-in type mold terminal used here ensures easy connection.

Comparison of external shape based on model circuit
Main circuit configuration : Power transmission*2; Power receiving*1; Transformer primary*1; GPT*1 Specifications : Rated voltage 24kV, Rated current 630A, Rated frequency 50Hz, Installation place Outdoors
Appearance	Comparison of external shape Reduced by 35% of the conventional type

Specifications and structure
Specifications	HS-X structure

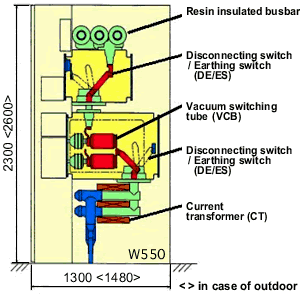

Rated voltage : 24kV Rated current : 630A Rated frequency : 50Hz Establishment : Outdoor Panel sizes : Width 550 Depth 1480 Height 2600
