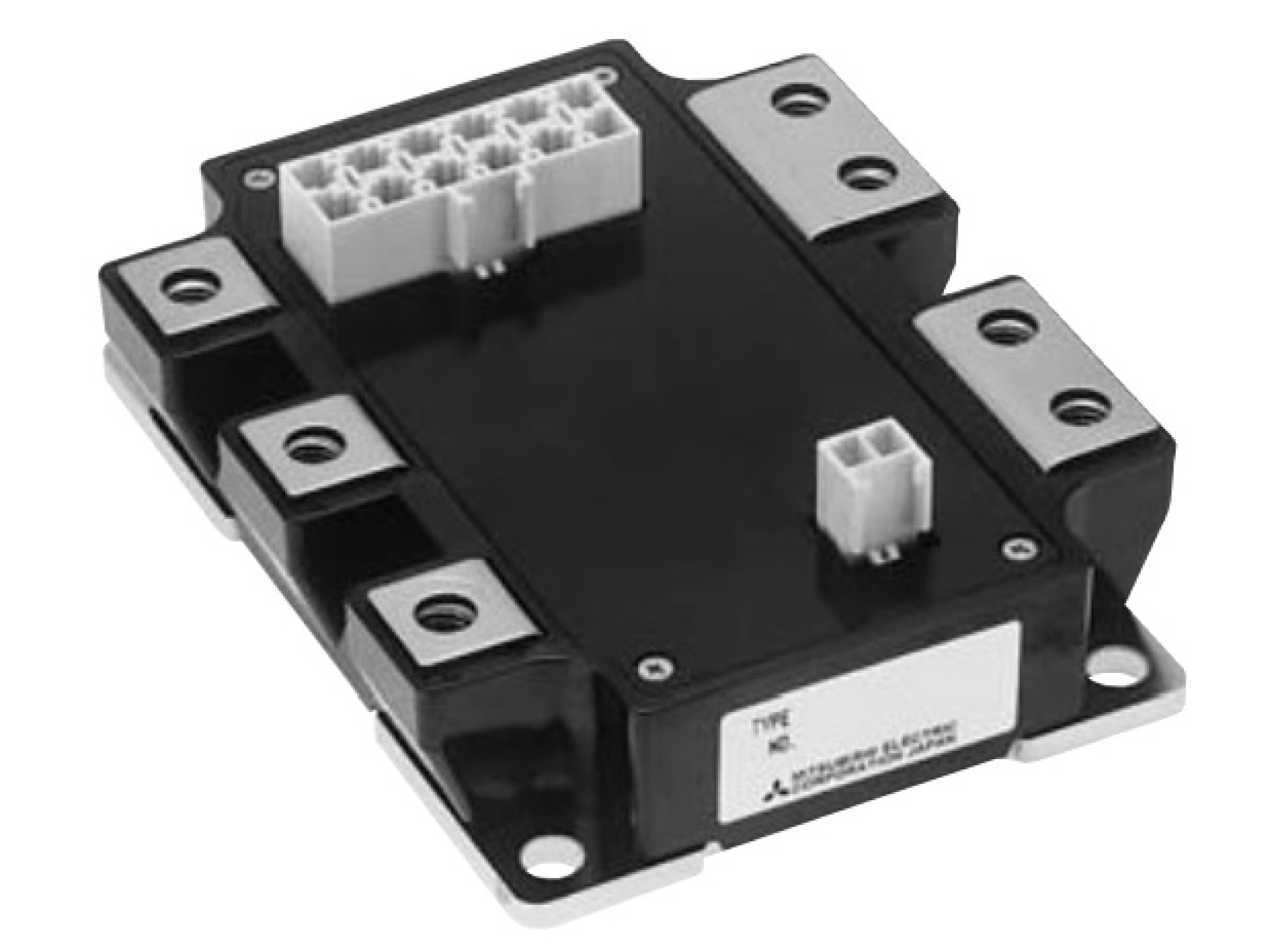

Power MOSFET Modules
In the power device market, which demands high-speed switching voltage drive and low loss, MOSFET (Metal Oxide Semiconductor Field Effect Transistor) has proven performance in low current, low withstand voltage fields. By utilizing a trench gate structure based on submicron technology, MOSFET has significantly improved low ON resistance (resistance in the region where drain current flows between drain and source) compared to planar type.
Features
- Equipped with a trench gate structure MOSFET
- Connector terminals are used for gate and source signal wiring
- Built-in temperature sensor
Applications
- Battery forklifts
- Uninterruptable power supply (UPS)
Lineup
MOSFET modules

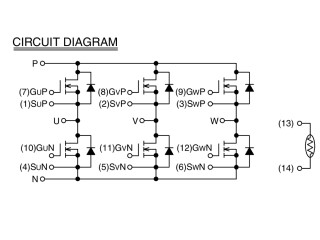

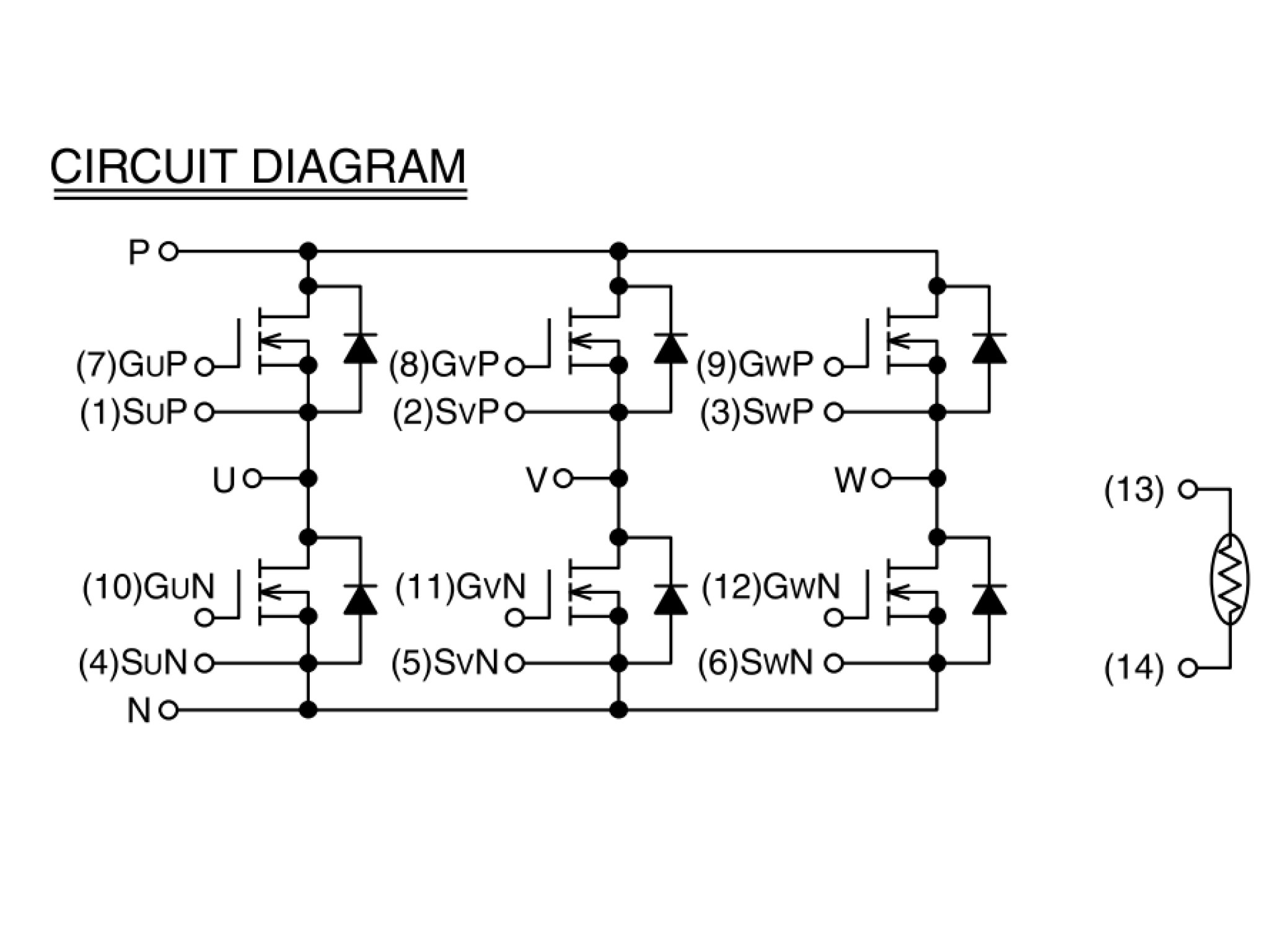

| ID (A) | Connection | Type name | ||
|---|---|---|---|---|
| VDSS=75V | VDSS=100V | VDSS=150V | ||
| 100 | ||||
| 200 | ||||
| 300 | ||||

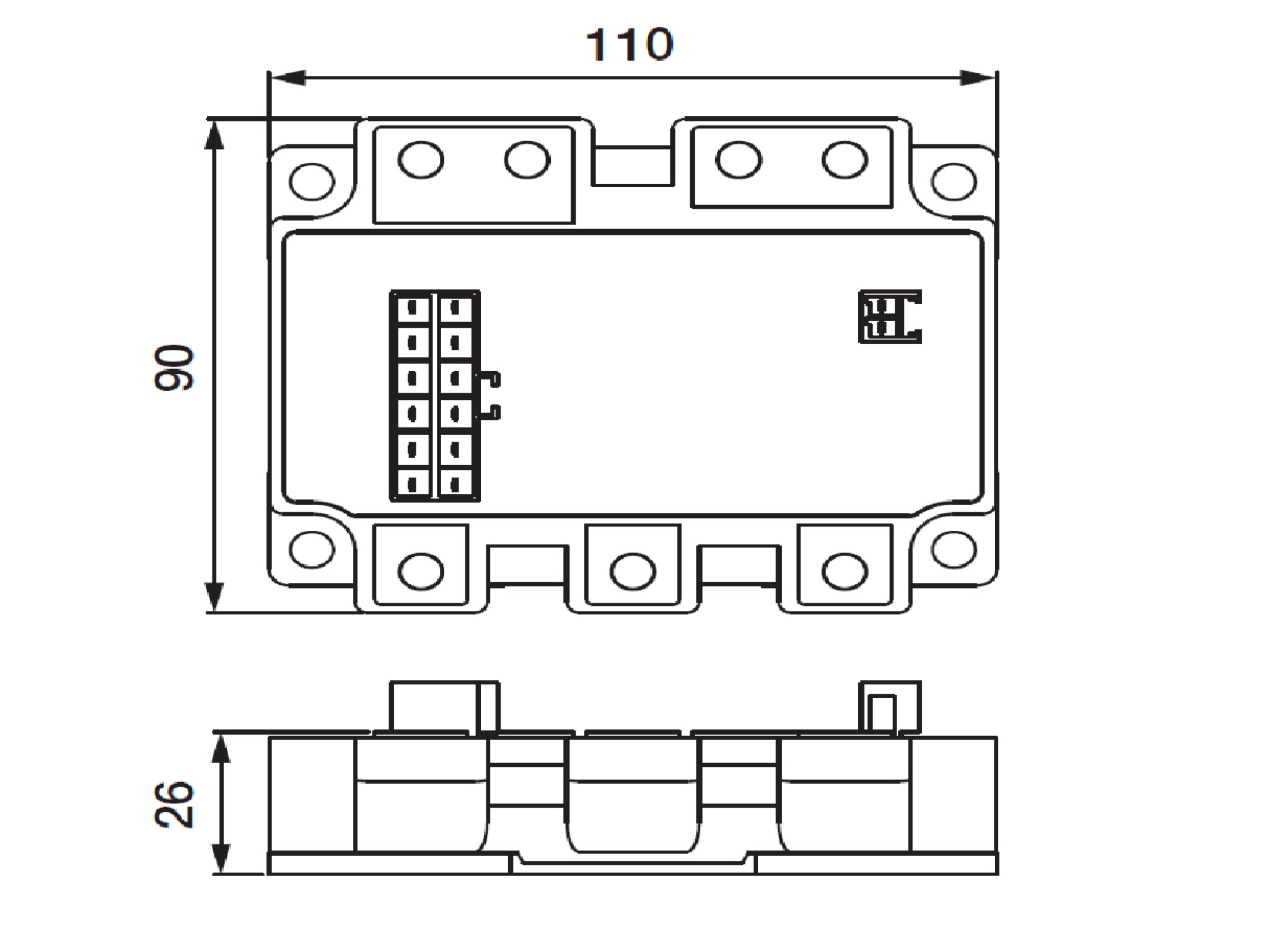

| Package |  | |||
