IGBT modules MPD series
High-capacity IGBT modules
In recent years, an increasing number of power conditioners, etc. are being installed for megawatt-class photovoltaic and wind power generation systems, and a demand has emerged for the downsizing and streamlining of power conversion equipment. Our MPD Series features models with ratings over 1000 A and contributes to further downsizing and streamlining of power conversion equipment by reducing the number of parallel connections in the market.
Features
- Reduces gate capacitance by approximately 30-50% compared to our equivalent 5th generation modules
- Large capacitance element integrated with a low inductance package in a half-bridge (2in1) structure
Applications
- Photovoltaic
- Wind power generation
- High-capacity inverter
- Uninterruptable power supply (UPS)
Lineup
MPD series

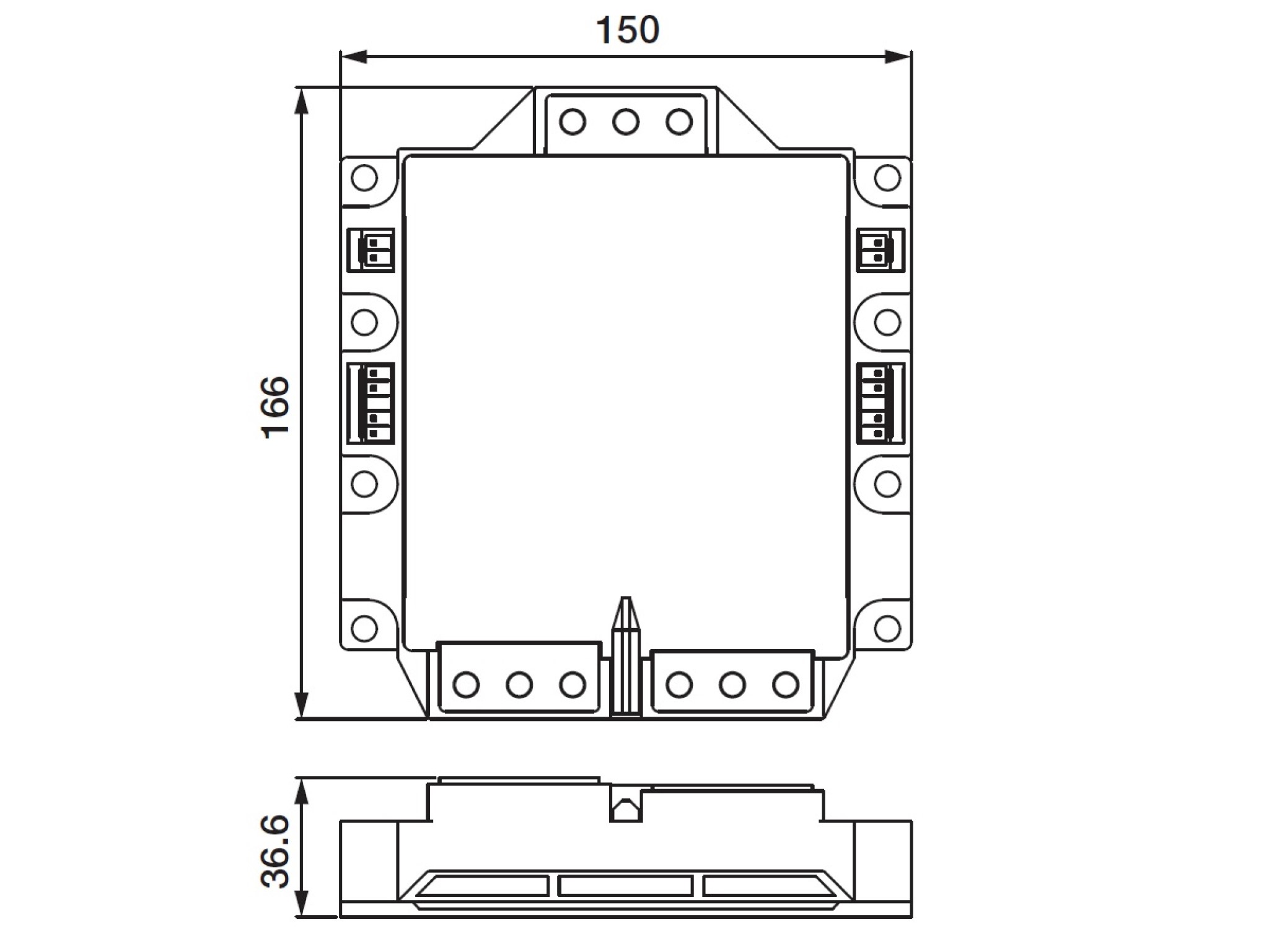

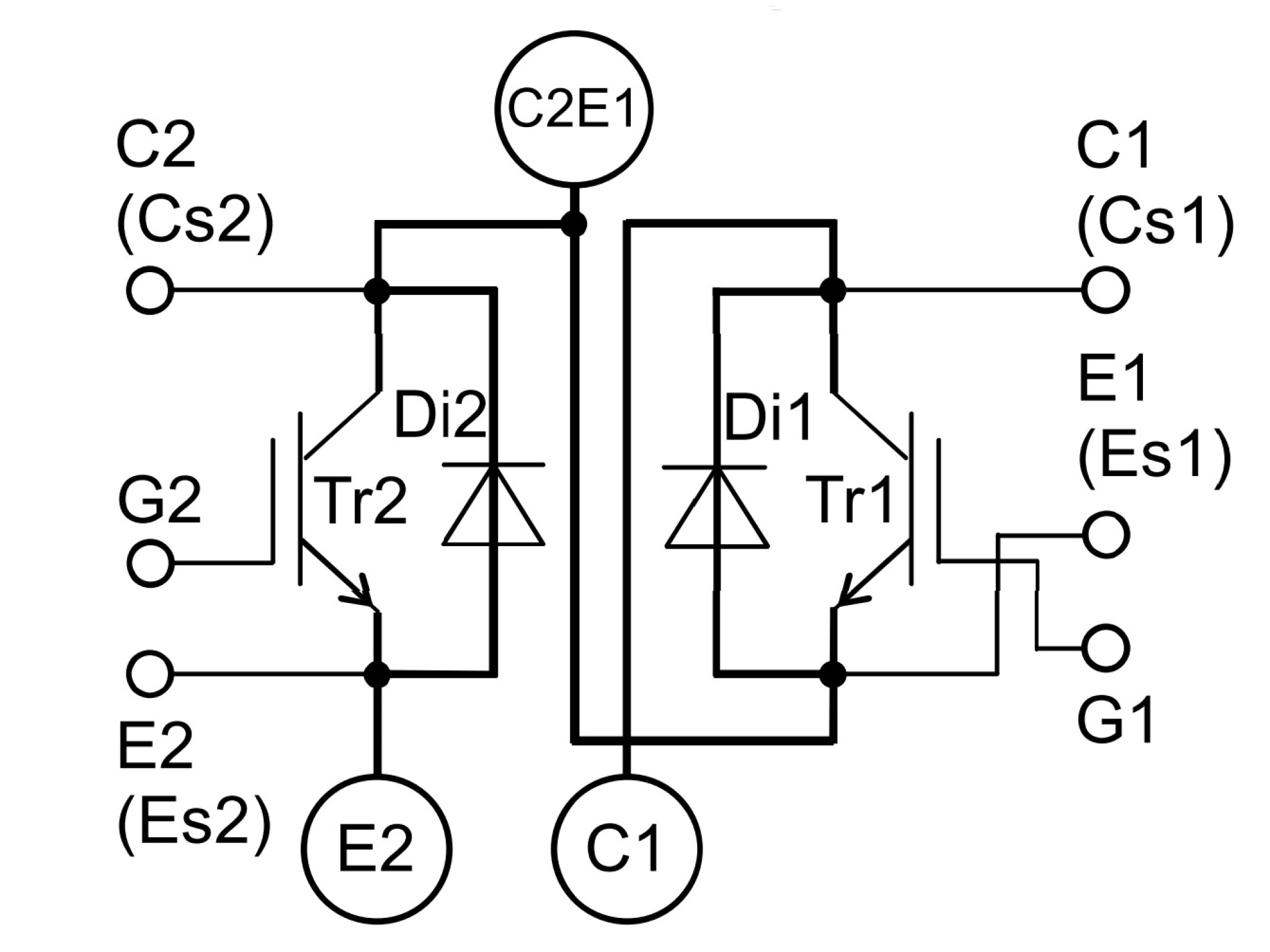

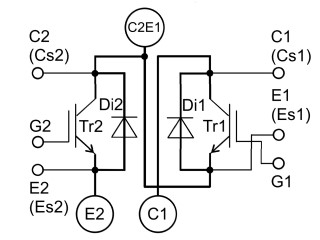

| IC (A) | Connection | Type name | Dimension |
|---|---|---|---|
| 900 | 150 × 166 mm | ||
| 1400 | |||

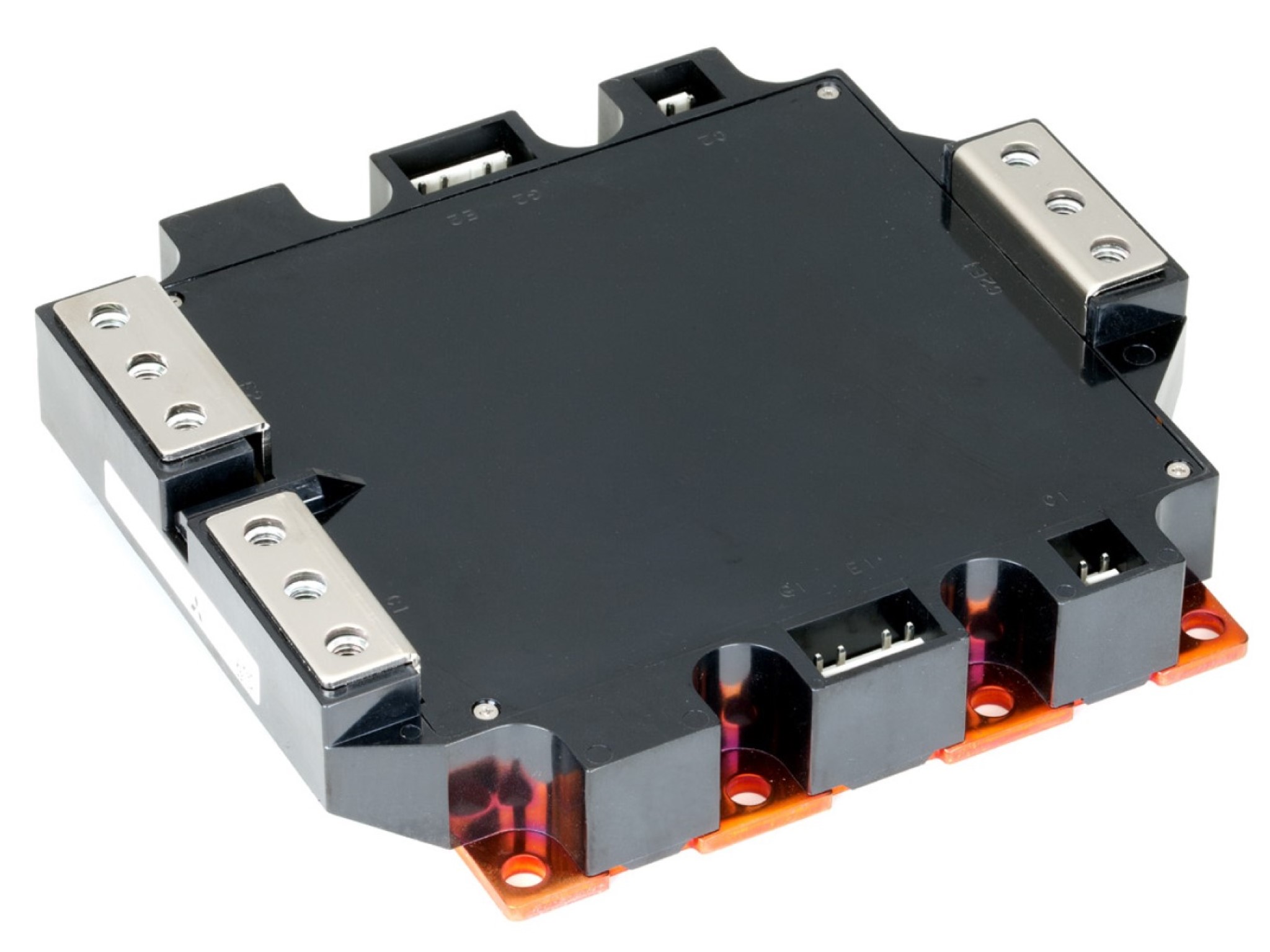

| Package |  | ||
