Power Loss Simulation Software

This is a simulation software designed for the power loss calculation with Mitsubishi Electric power modules under customers specific application conditions (2-level*1 and 3-level*2 inverter circuit) and for junction temperature rises as a consequence of power loss.。

Mitsubishi Electric does not collect any information such as evaluation conditions or calculation results when you use this simulator.

*1: 3-phase and 2-phase PWM modulation, chopper control
*2: Neutral pointed clamped circuit

You need to register yourself to our web site and download the data in order to access the loss simulator.

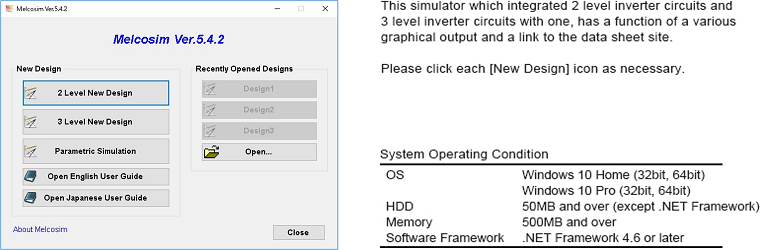

 Main display of Power loss simulator

 Power loss simulator for 2-level inverter circuit

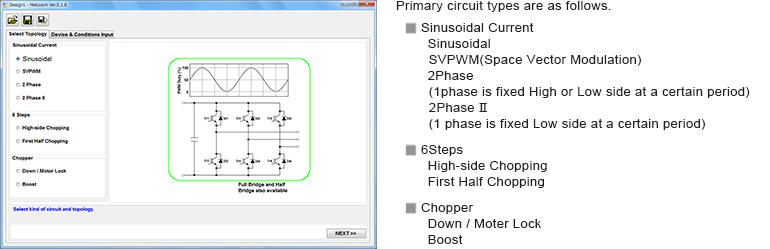

"Select Topology" display after clicking "Start 2 Level New Design"


Example
Please find a calculation procedure of CM1200DB-34N (1700V/1200A 2in1) power loss simulation as an example as below.

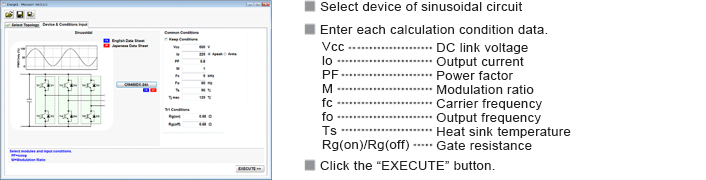

Application conditions

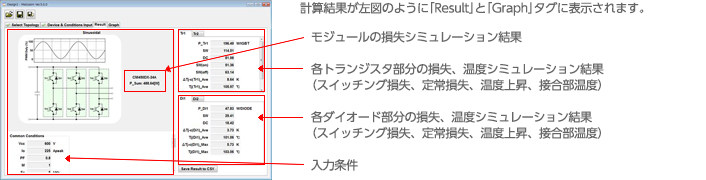

Calculation result

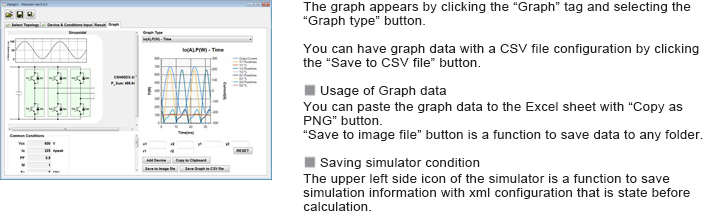

Graph Display and Data Saving

 Power loss simulator for 3-level inverter circuit

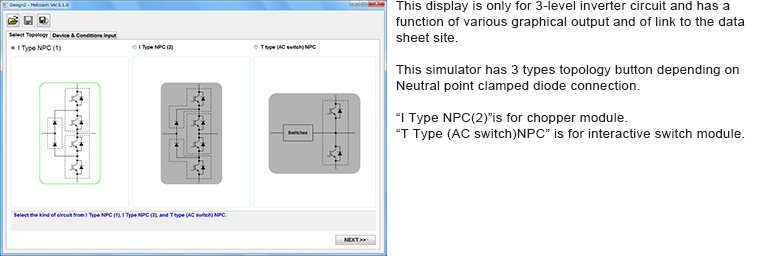

"Select Topology" display after clicking "3 Level New Design"


Example
Please find a calculation procedure of CM1200DB-34N (1700V/1200A 2in1) power loss simulation as an example as below.

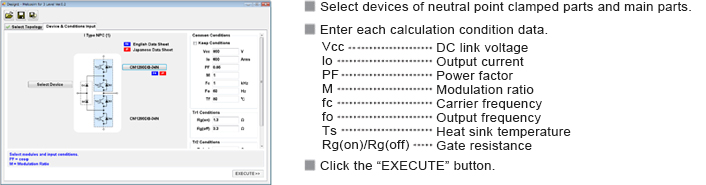

Application conditions

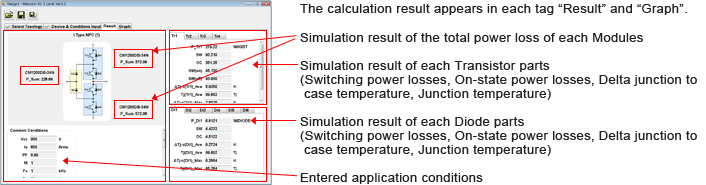

Calculation result

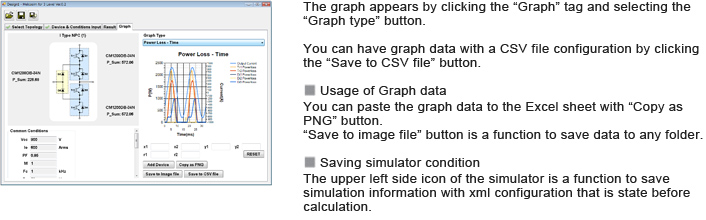

Graph Display and Data Saving
