Evaluation board
DIPIPM Evaluation boards
Various evaluation boards are available for DIPIPM. An instruction manual, parts list, pattern diagrams, and Gerber data can be provided upon request. As such, they can be used not only for evaluation, but also as reference for the design of inverter boards utilizing DIPIPM. Please contact your Mitsubishi Electric dealership or Mitsubishi Electric's head office/branches to order evaluation boards.
| DIPIPM series | Evaluation board name | Appearance | Dimension : L×W×H (mm) | Overview |
|---|---|---|---|---|

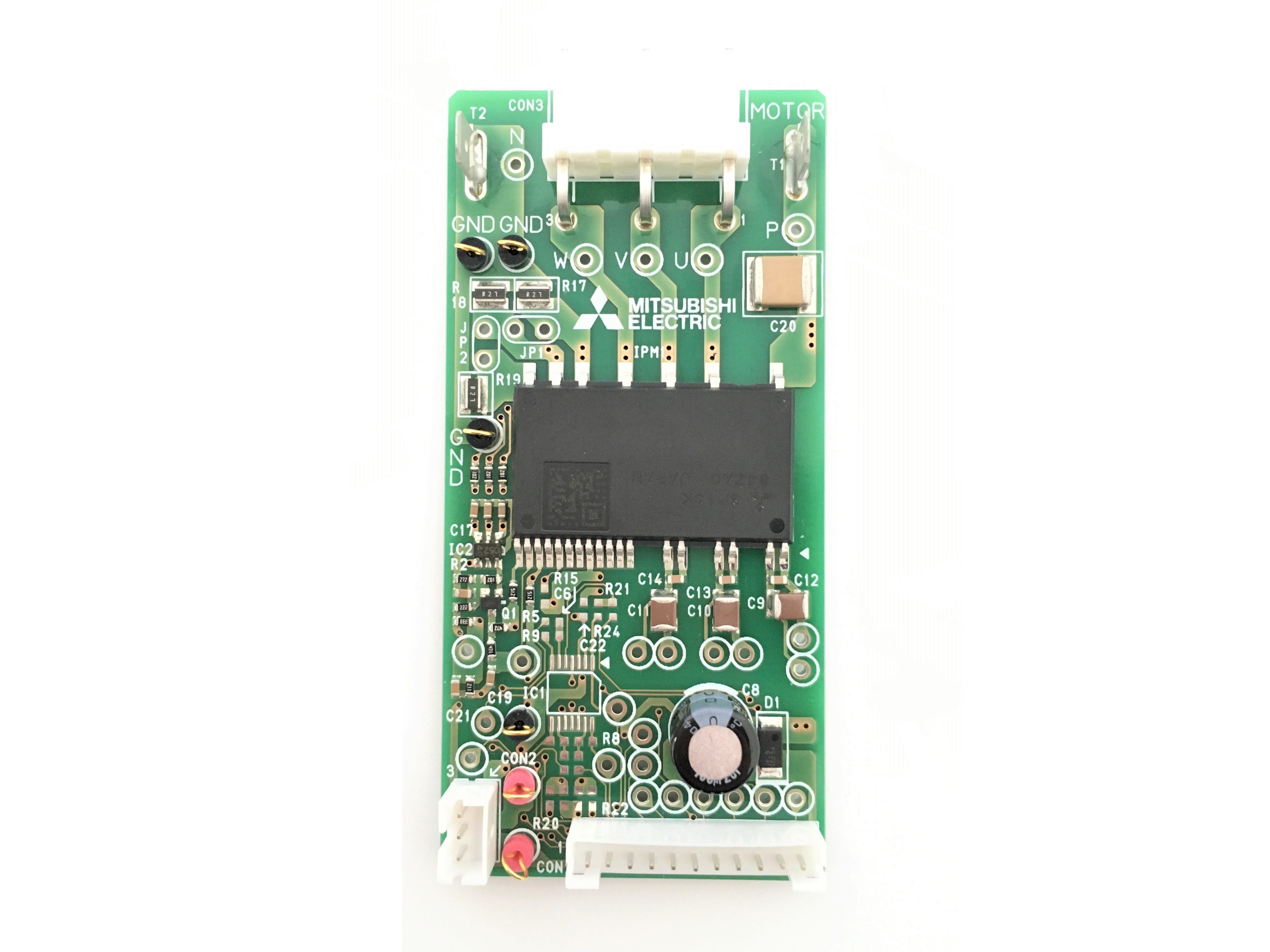

| SOPIPM | EVA18-SOP |
|
80 × 38 × 13.5 | Equipped with a short-circuit protection function. With pattern for circuit that scans lower arm current (OP Amp amplification) |

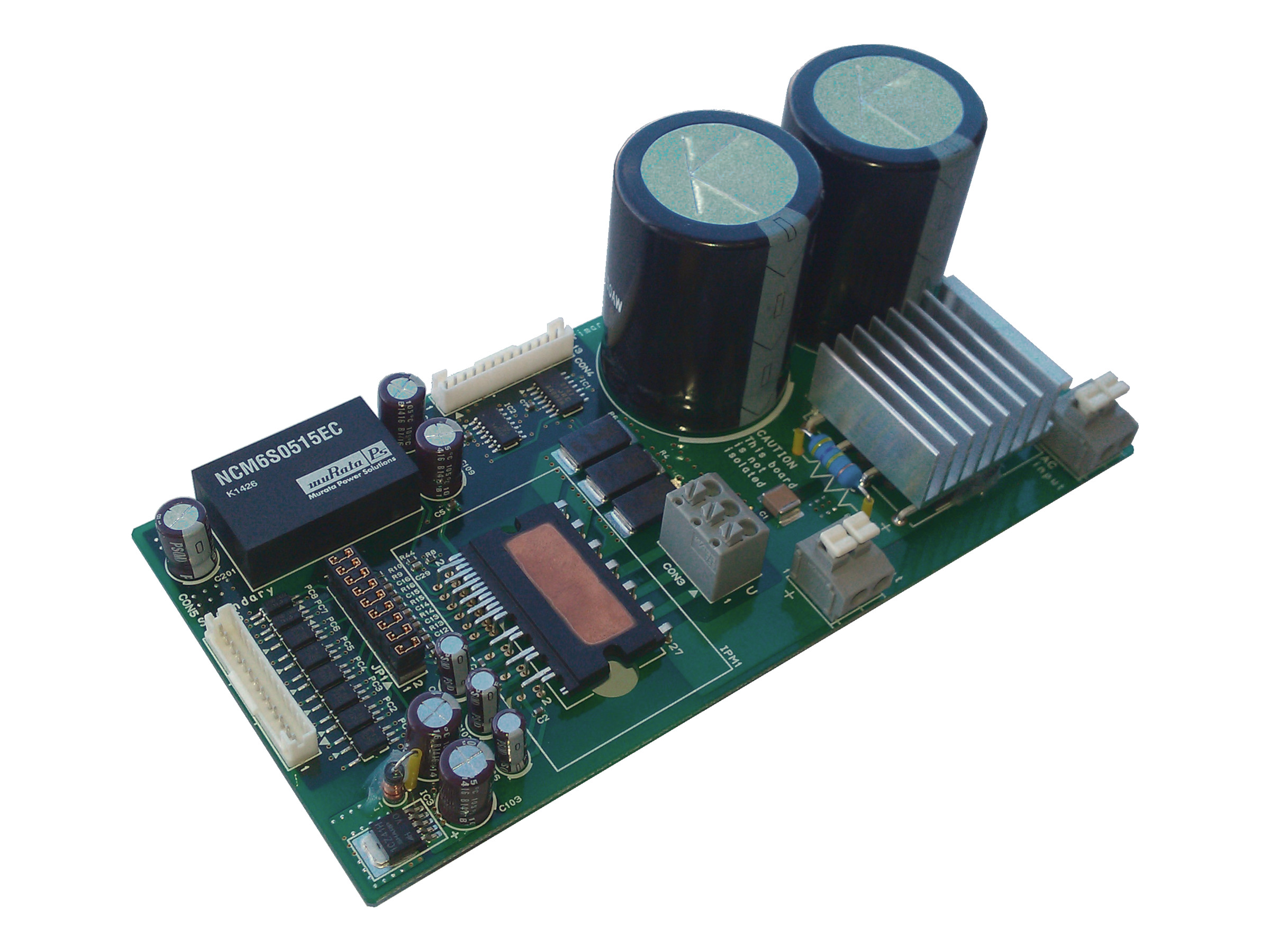

| SLIMDIP | EVA01-SLIM |
|
160 × 80 × 55 | Equipped with a single-phase diode bridge, smoothing capacitor, DC-DC converter, and photocoupler for PWM isolation. |

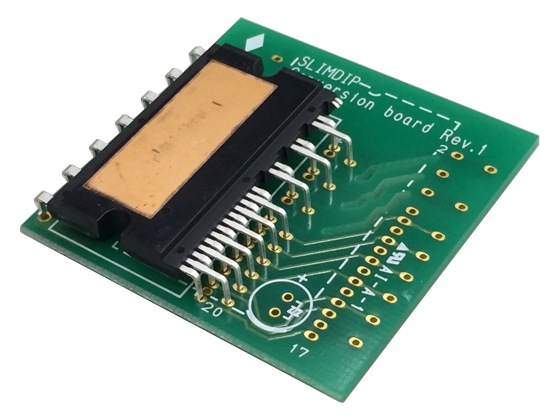

| EVA08-SLIM0 |
|
40 × 45 × 1.6 | Conversion board for mounting and evaluation of SLIMDIP on users' boards equipped with Super mini DIPIPM. | |

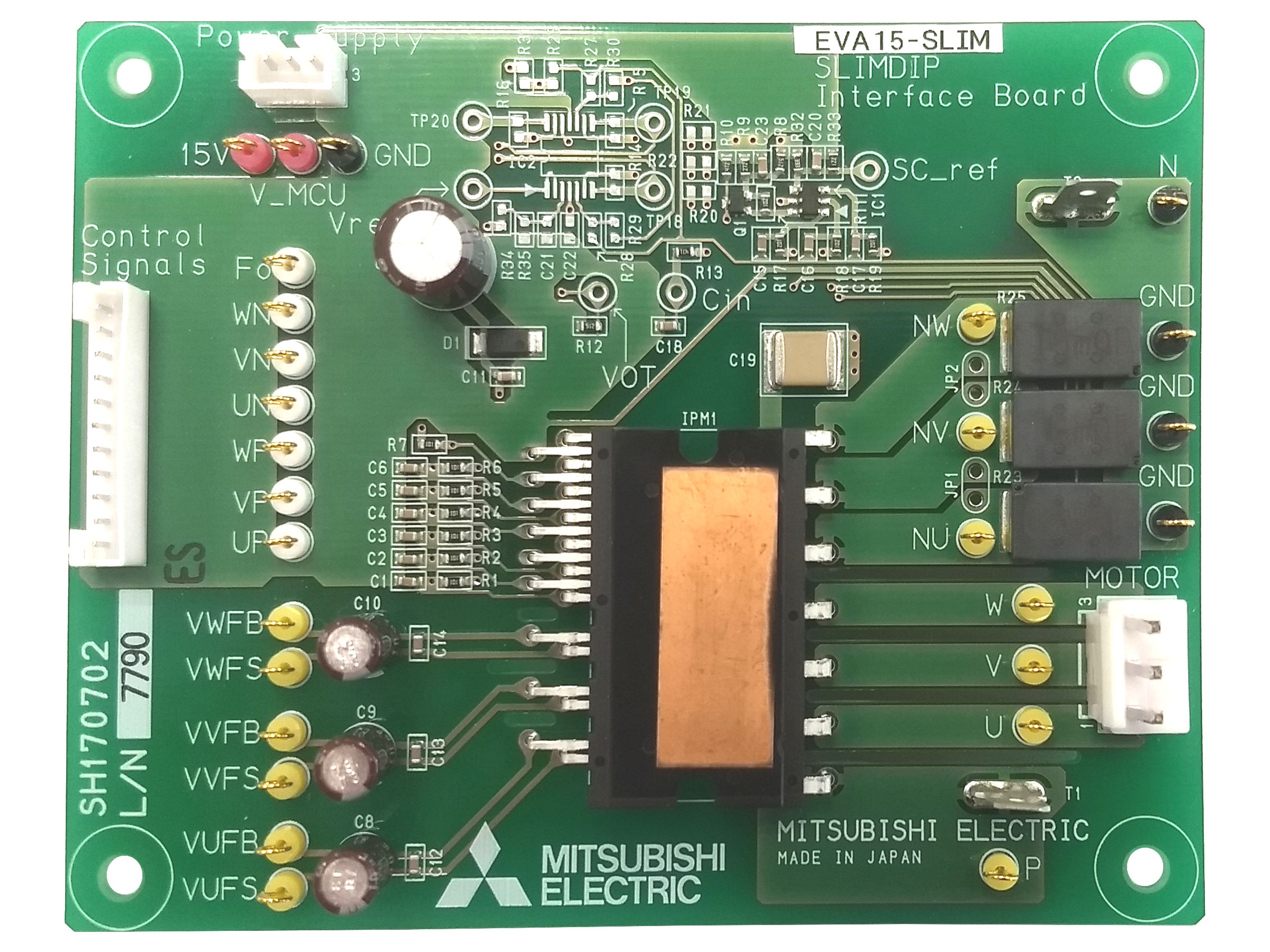

| EVA15-SLIM |
|
80 × 100 × 18 | Equipped with lower arm current scanning (OP Amp amplification) and a short-circuit protection function. | |
| Super mini DIPIPM | EVA11-SDIP |
|
85 × 110 × 22 | Equipped with a short-circuit protection function. |

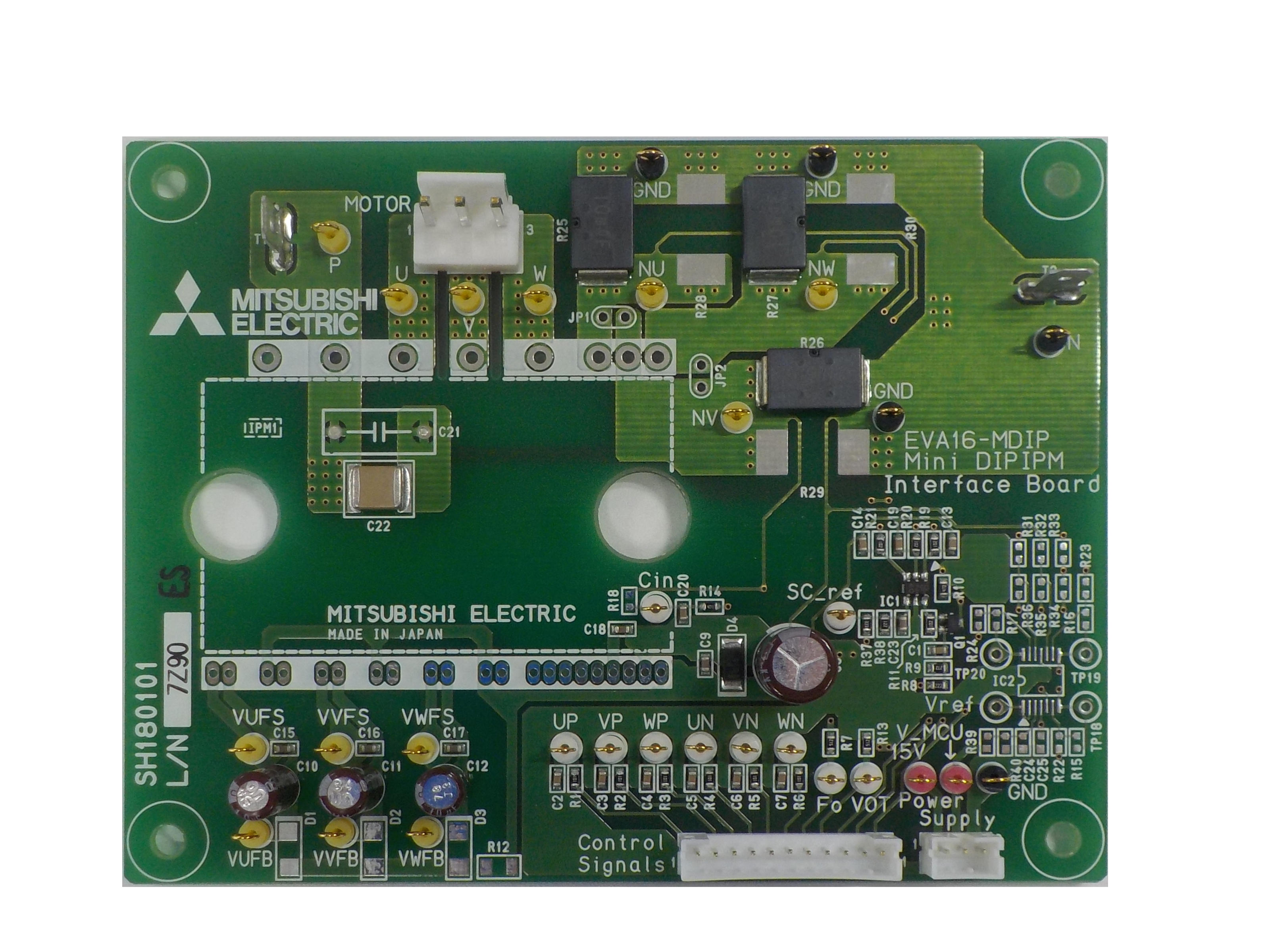

| Mini DIPIPM | EVA16-MDIP |
|
85 × 110 × 26 | Equipped with a short-circuit protection function. With pattern for circuit that scans lower arm current (OP Amp amplification) |

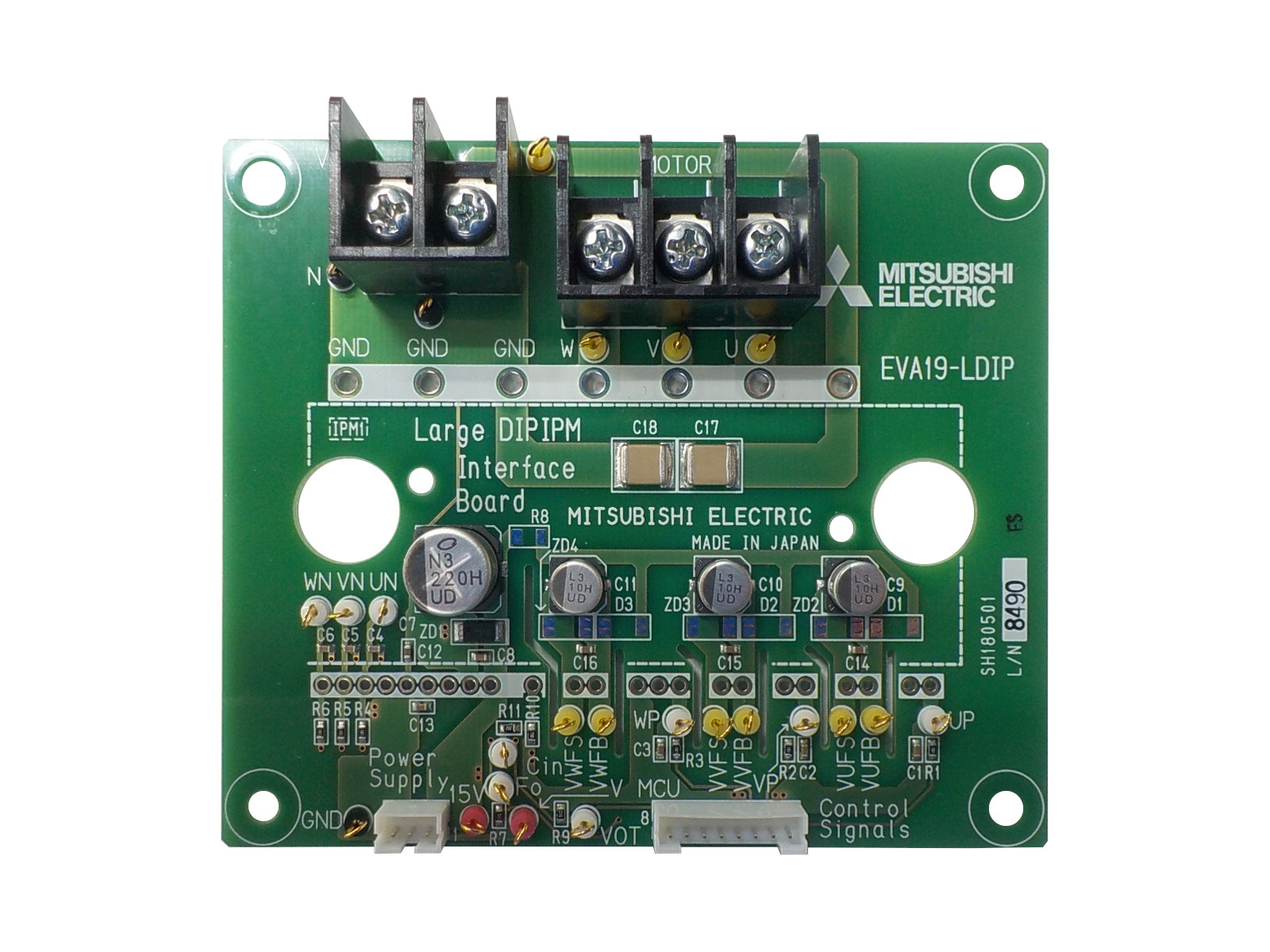

| Large DIPIPM Ver.6 | EVA19-LDIP |
|
85 × 100 × 31 | Equipped with a short-circuit protection function. With pattern for BSD. Also supports large DIPIPM Ver. 4. |

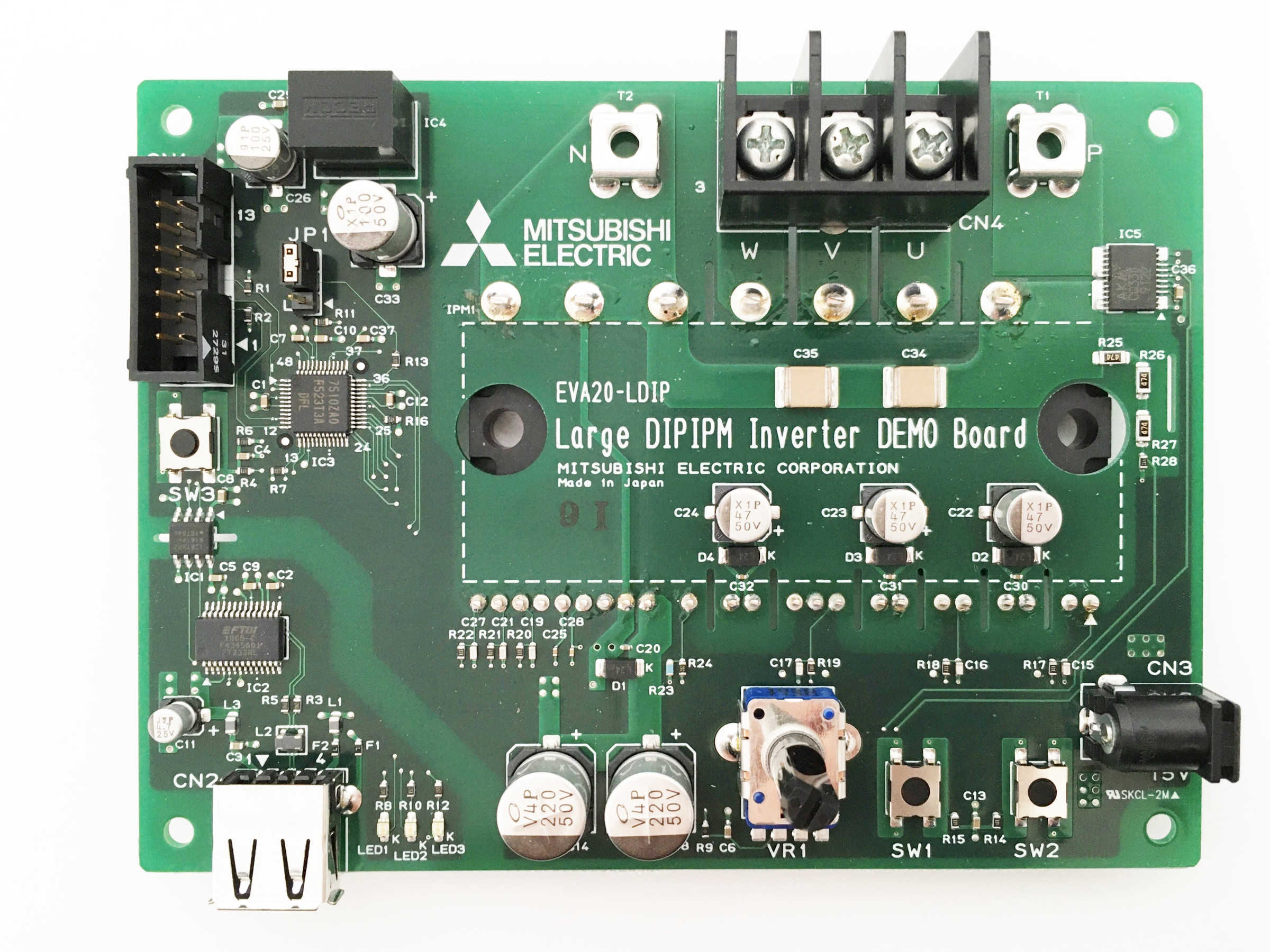

| EVA20-LDIP |
|
95 × 128 × 35 | MCU with built-in motor control (sensorless vector control) software is mounted on the board and communication with the MCU is possible via USB (isolated). | |

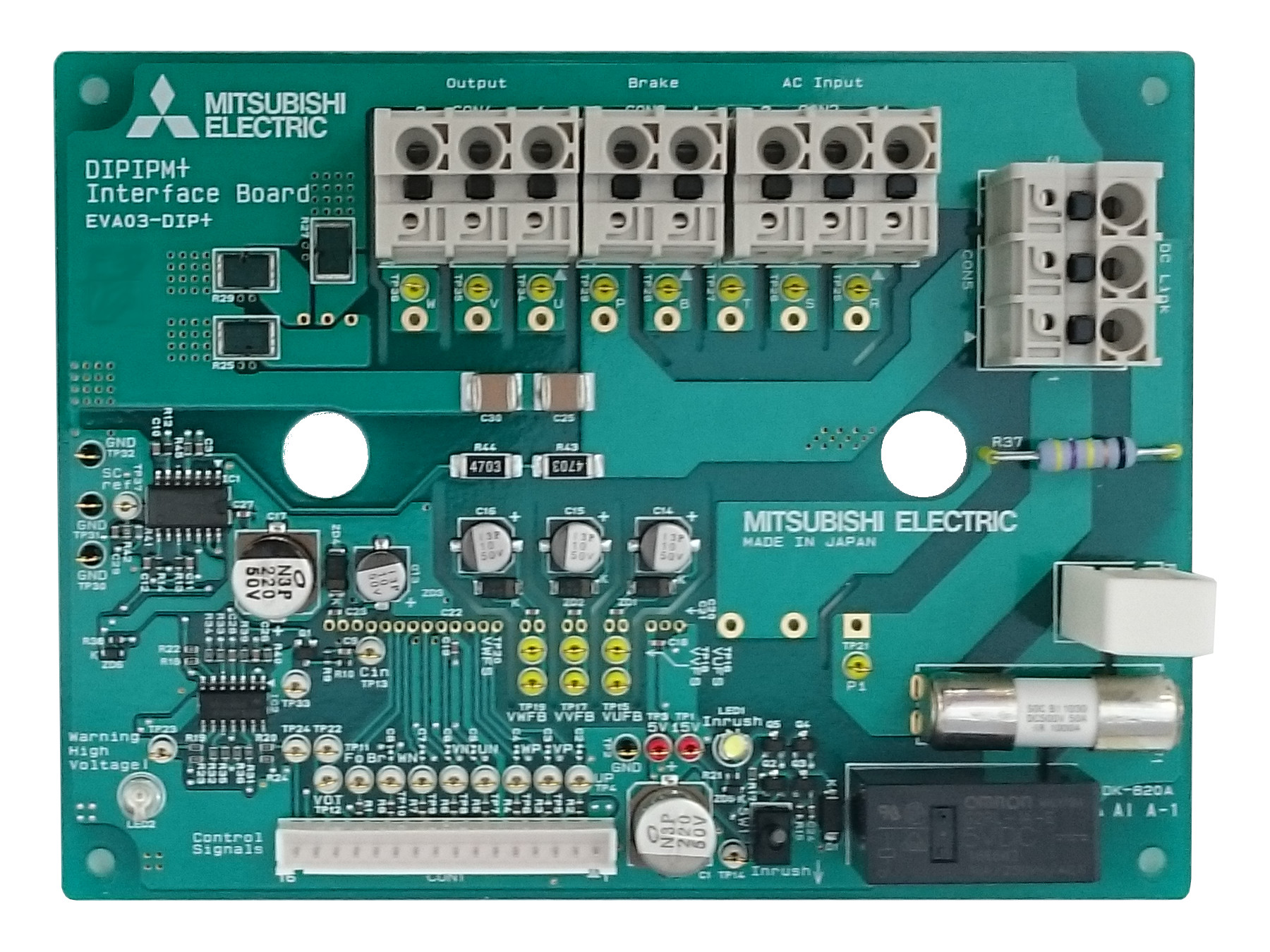

| DIPIPM+ | EVA03-DIP+ |
|
108 × 144 × 50 | Equipped with inrush circuit, short-circuit protection function, and circuit that scans lower arm current (OP Amp amplification) |

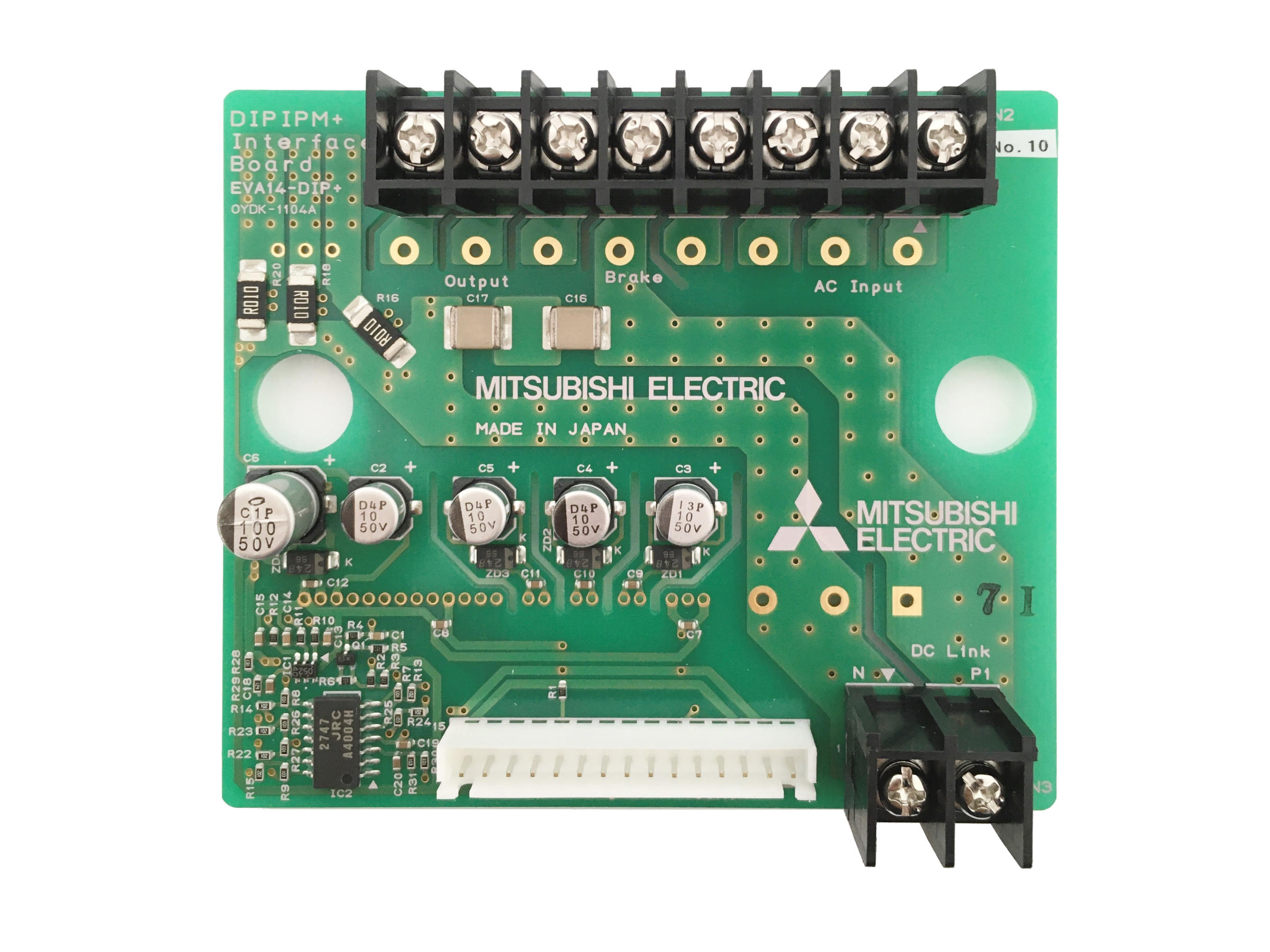

| EVA14-DIP+ |
|
80 × 93 × 24 | Compact board equipped with a short-circuit protection function, and circuit that scans lower arm current (OP Amp amplification) | |

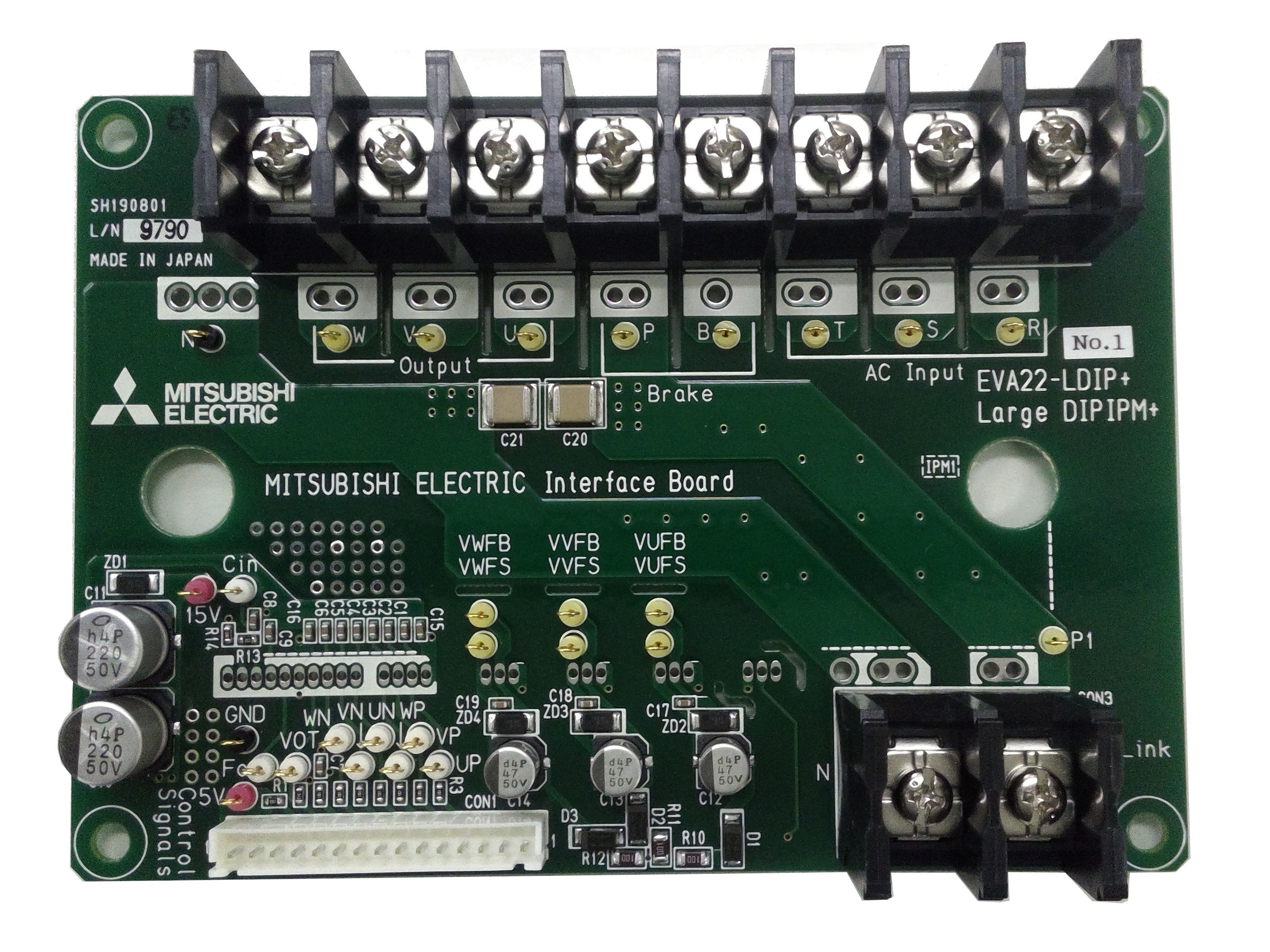

| Large DIPIPM+ | EVA22-LDIP+ |
|
100 × 140 × 34 | Equipped with a short-circuit protection function. |
