Code Reader External dimensions

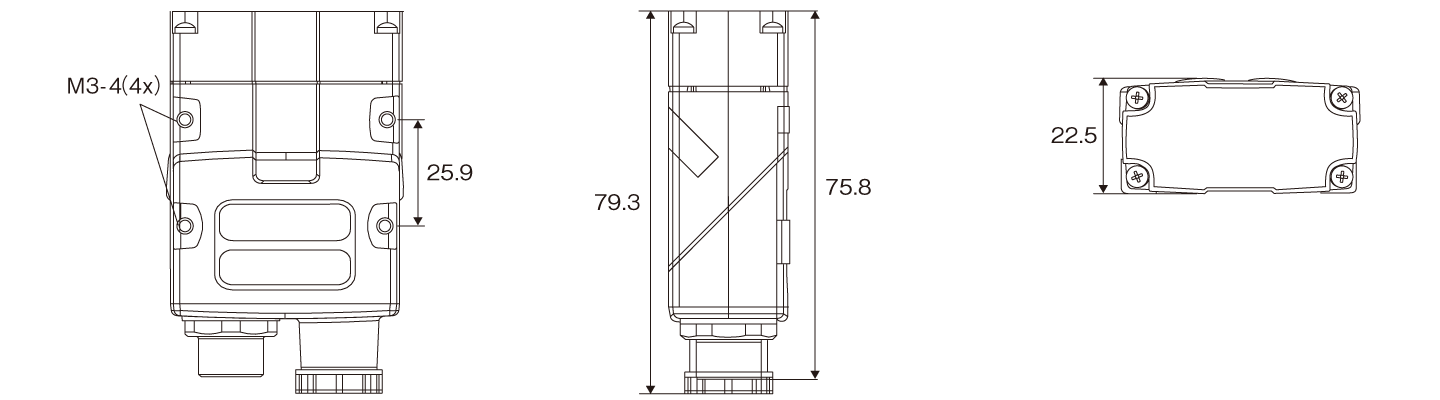

CF26-SR

(Unit: mm)

Straight-configuratio

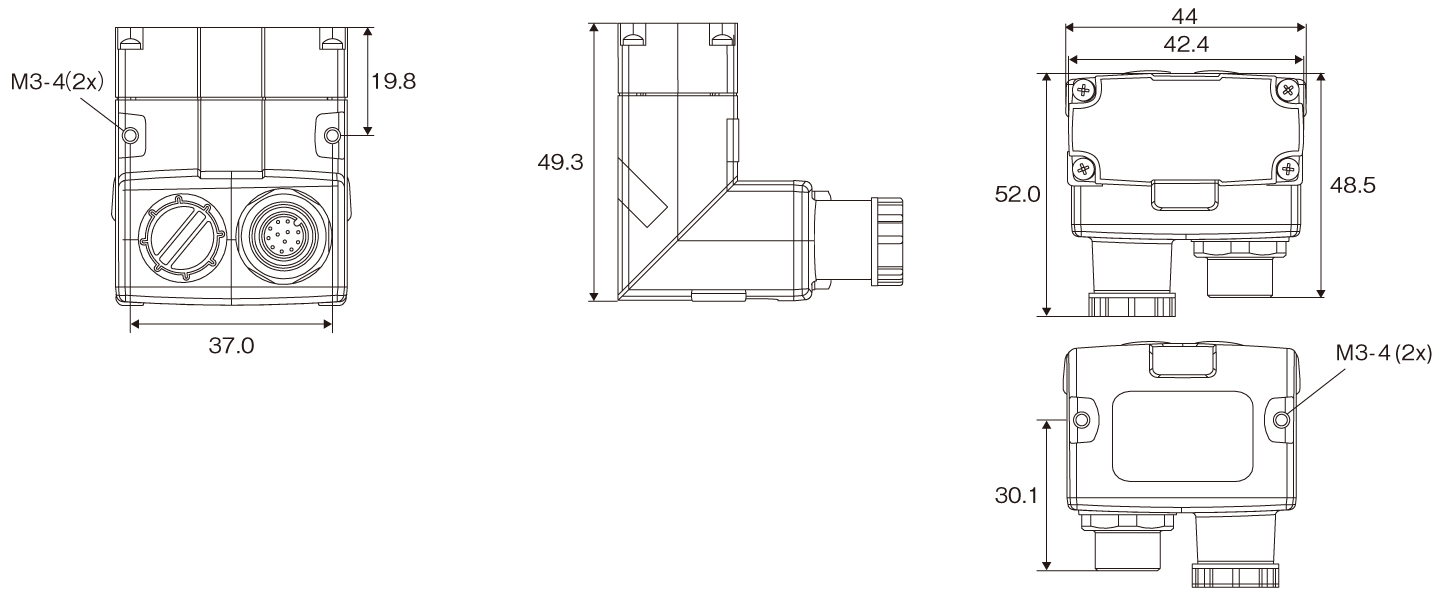

Right-angle configuration

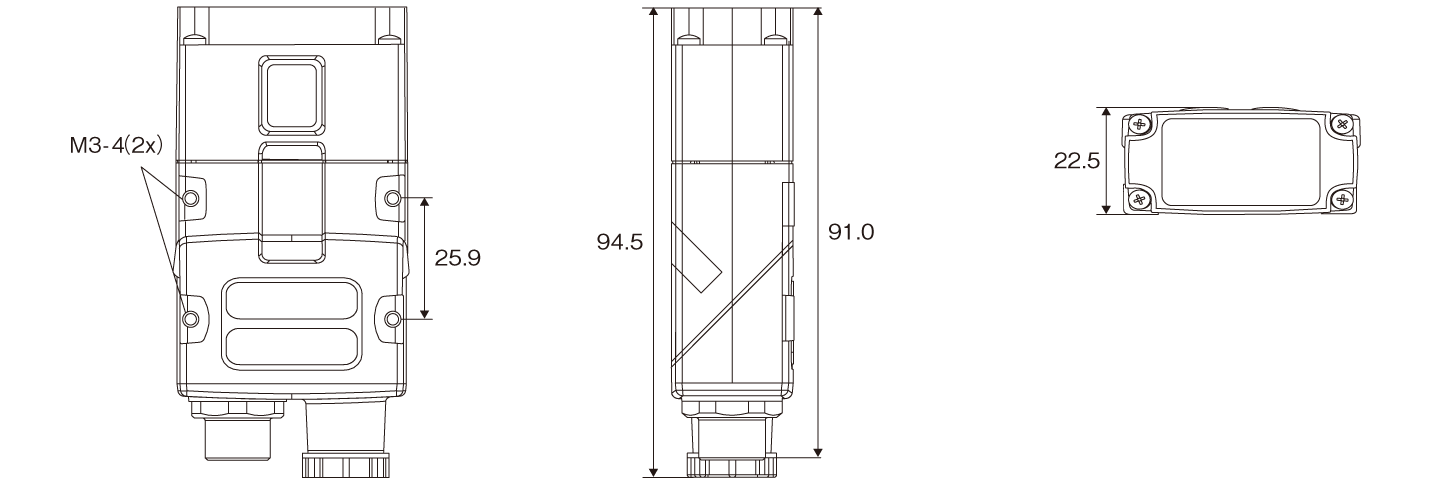

CF26-LR

(Unit: mm)

Straight-configuratio

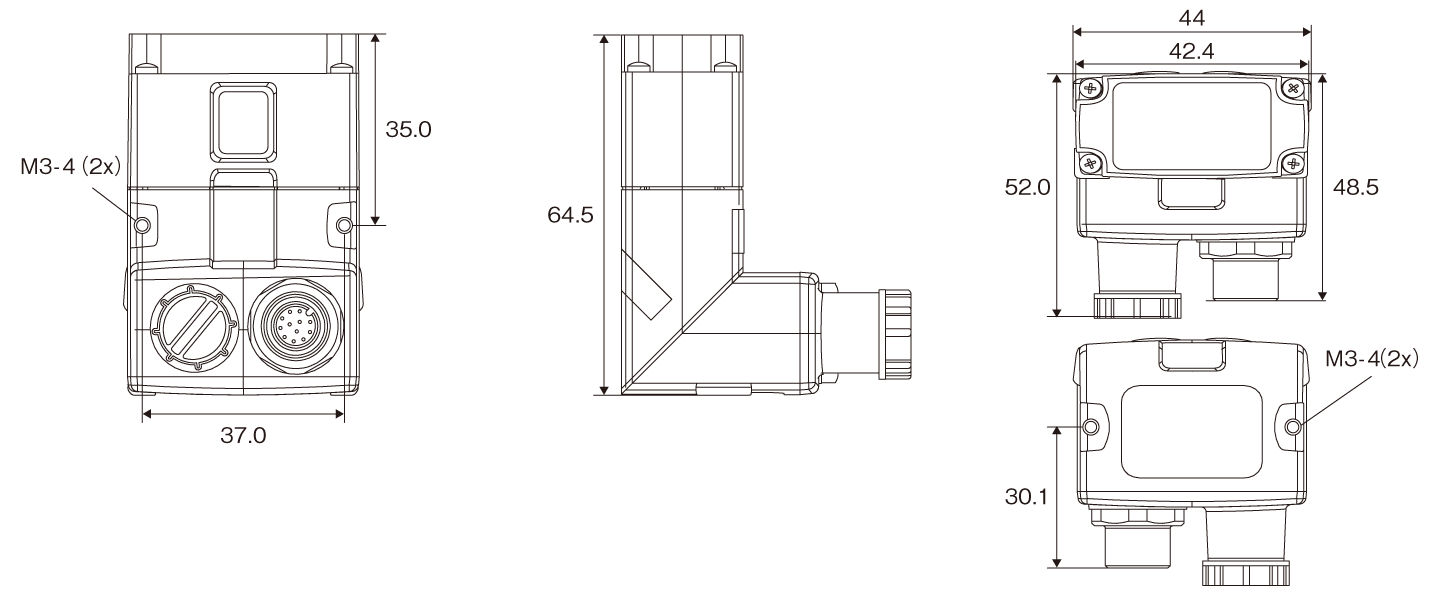

Right-angle configuration

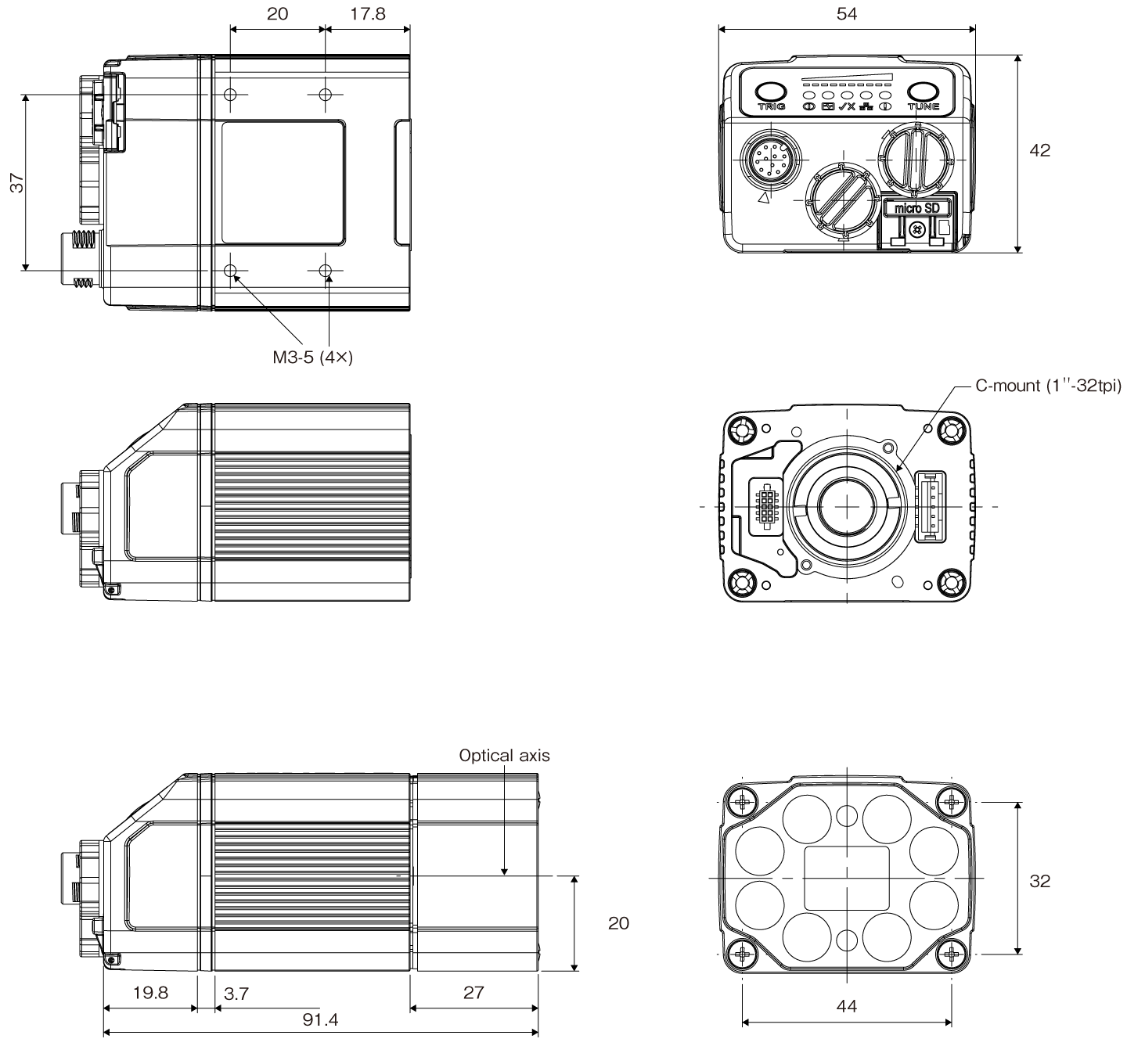

CF37-SR、CF37-LR

(Unit: mm)
