High-Performance Teaching box R86TB

Features

Easy operation with just this one teaching box

Please refer to the Catalog for details.

Improved operability with an easy to operate and intuitive user interface. You can access each function from any screen.

Abundant information on the large screen display on the 10.1-inch high-definition.
You can reduce the time for switching screens and effort and improve work efficiency.
The HOME screen has function icons, which allow you to access all functions.
It is customizable. You can create shortcuts and your own operation screen.

Major functions of the engineering software "MELSOFT RT ToolBox3" incorporated.

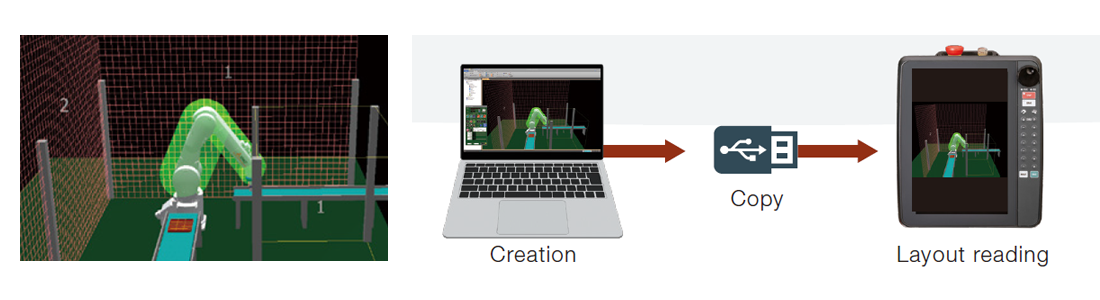

3D monitor allows you to check the robot movement in 3D mode and visualizes the set parameters and areas.

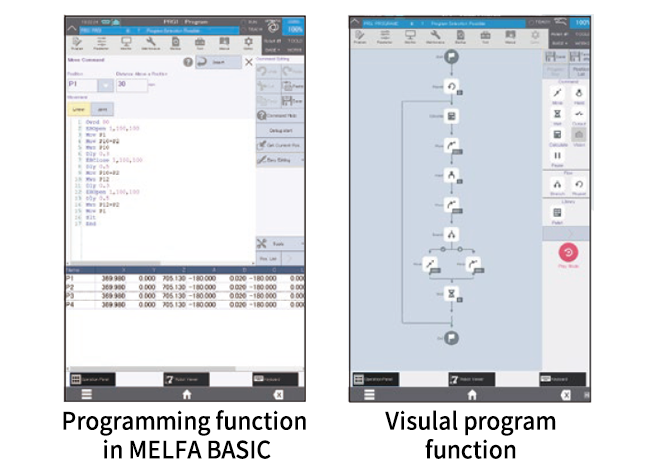

Programs can be edited using the easy edit function and templates for further ef ficient setup.
Settings of safety logic, monitoring of signals, variables, and load conditions, and more features can be utilized with just this one teaching box.
Workspaces and backup data can be utilized together with RT ToolBox3 via a USB memory.

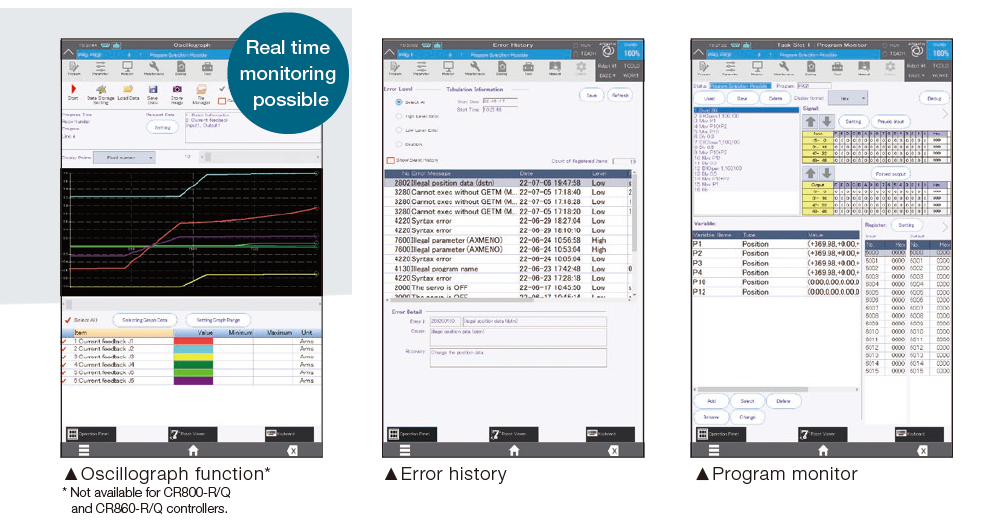

Various types of displays, like the oscillograph and monitor functions (*1) , and analysis screens make it possible to perform trouble diagnosis and achieve early troubleshooting without a computer.
Even when a computer cannot be brought to the site, it enables to handle a series of processes from setup to maintenance, reducing time and cost.

(*1:Oscillograph function is not available for CR800-R/Q and CR860-R/Q controllers.)

Compatible Controllers	Description
CR800 series	With extension cable, Model: 2F-32EXTBST-☐☐M (☐☐: 01, 05, 10, 15) CR751:Conversion cable required (Conversion cable model: 2F-32CON☐☐M (☐☐: 01, 05, 10, 15)
CR700 series

Please refer to the Catalogs.
