Specifications

General specifications

Item	Specifications
Operating ambient temperature^*1	0 to 50 ℃
Storage ambient temperature	-20 to 60 ℃
Operating/Storage ambient humidity	10% RH to 90% RH, non-condensing^*2
Vibration resistance	Compliant with IEC 61131-2^*6		Frequency	Acceleration	Half amplitude	Sweep count
		Under intermittent vibration	5 to 8.4 Hz	-	3.5 mm	10 times in each X, Y, or Z direction
		Under intermittent vibration	8.4 to 150 Hz	9.8 m/s²	-	10 times in each X, Y, or Z direction
		Under continuous vibration	5 to 8.4 Hz	-	1.75 mm	-
		Under continuous vibration	8.4 to 150 Hz	4.9 m/s²	-	-
Shock resistance	Compliant with IEC 61131-2 (147 m/s² (15G), 3 times in each X, Y, or Z direction)^*6
Operating atmosphere	No greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage)
Operating altitude^*3	2000 m or less
Installation location	Inside control panel
Overvoltage category^*4	Ⅱ or less
Pollution degree^*5	2 or less
Cooling method	Self-cooling
Grounding	Grounding with a ground resistance of 100 Ω or less by using a ground cable that has a cross-sectional area of 2 mm² or more. If impossible, connect the ground cable to the control panel.

*1Includes the temperature inside the enclosure of the control panel to which the GOT is installed.
*2If the ambient temperature exceeds 40 ℃, the absolute humidity must not exceed 90% RH at 40 ℃.
*3Do not use or store the GOT under a pressure higher than the atmospheric pressure at altitude 0 m. Doing so may cause a malfunction.
Air purging by applying pressure to the control panel may create clearance between the surface sheet and the touch panel. This may cause the touch panel to be not sensitive enough or the sheet to come off.
*4This indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power distribution network and the machinery within the premises. Category II applies to equipment that is supplied with power from fixed facilities.
The withstand surge voltage for the equipment with the rated voltage up to 300 V is 2500 V.
*5This indicates the occurrence rate of conductive material in an environment where a device is used. Pollution degree 2 indicates an environment where only non-conductive pollution occurs normally and a temporary conductivity caused by condensation shall be expected depending on the conditions.
*6The definition of 1G has been changed from 9.8 m/s² to 10 m/s² in IEC 61131-2 ED.3. The product was tested by using the former definition, 1G = 9.8 m/s².

Power supply specifications

Item		Specifications
Item		GS2110-WTBD-N	GS2107-WTBD-N
Power supply voltage		24 V DC (+10%, -15%), ripple voltage 200 mV or less
Power consumption	Under the maximum load	7.6 W (317 mA/24 V) or less	6.5 W (271 mA/24 V) or less
Power consumption	Backlight OFF	3.8 W (158 mA/24 V) or less	3.8 W (158 mA/24 V) or less
Inrush current		17 A or less (6 ms, ambient temperature 25 ℃, at the maximum load)
Permissible instantaneous power failure time		Within 5 ms
Noise immunity		Conforms to IEC61000-4-4, 2 kV (power supply line)
Withstand voltage		350 V AC for 1 minute across power terminals and earth
Insulation resistance		500 V DC across power terminals and earth, 10 MΩ or more by an insulation resistance tester

For the status of conforming to various standards and laws (CE, UKCA, ATEX, UL/cUL, Class I Division 2, KC, KCs,
and maritime certifications [ABS/BV/DNV/LR/NK/RINA] (as of June 2023)),
please refer to the "Standards and certifications Products".

Operate and store the GOT in environments without direct sunlight, high temperature, dust, humidity, and vibrations.

Performance specifications

Item		Specifications
Item		GS2110-WTBD-N	GS2107-WTBD-N
Display section^12	Display device	TFT color LCD
	Screen size	10" widescreen	7" widescreen
	Resolution	WVGA: 800 × 480 dots
	Display size	222(8.74) (W) × 132.5(5.22) (H) mm(inch)	154(6.06) (W) × 85.9(3.38) (H) mm(inch)
	Number of displayed characters	16-dot standard font: 50 characters × 30 lines (two-byte characters) 12-dot standard font: 66 characters × 40 lines (two-byte characters)
	Display color	65536 colors
	Brightness adjustment	32 levels
	Backlight^*4	LED (not replaceable)
Touch panel^39	Type	Analog resistive film
	Key size	Minimum 2 × 2 dots^*7 (per key)
	Simultaneous press	Not available^*5 (Only 1 point can be touched.)
	Life	1 million touches or more (operating force: 0.98 N or less)
Panel color		Black
User memory	User memory capacity	Memory for storage (ROM)^*10: 15 MB
User memory	Life (number of write times)	100000 times
Built-in interface	RS-422/485	1 channel Transmission speed: 115200, 57600, 38400, 19200, 9600, 4800 bps Connector shape: D-sub 9-pin (female) Terminating resistor: 330 Ω, 110 Ω, OPEN (Selectable by the terminating resistor setting switch.)
	RS-232	1 channel Transmission speed: 115200, 57600, 38400, 19200, 9600, 4800 bps Connector shape: D-sub 9-pin (male)
	Ethernet	1 channel Data transfer method: 100BASE-TX, 10BASE-T Connector shape: RJ-45 (modular jack)
	USB (device)	1 channel (rear face)
	USB (device)	USB version: USB 1.1 (Full-Speed 12 Mbps) Connector shape: USB Mini-B
	SD memory card^*10	1 channel, SDHC compliant (maximum 32 GB)
Buzzer output		Single tone (tone length adjustable)
Protective structure^*6		Front: IP65F^*8
Safety standards, radio laws		CE, UKCA, UL, cUL, KC (as of June 2023)

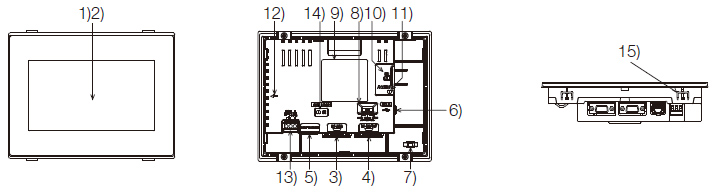

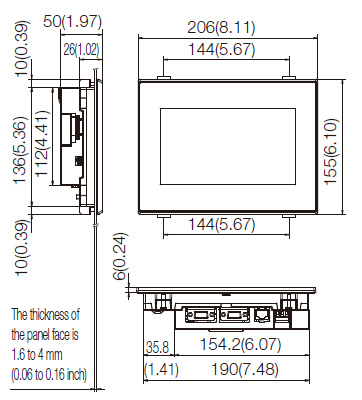

External dimensions		272(10.71) (W) × 214(8.43) (H) × 56(2.21) (D) mm(inch)	206(8.11) (W) × 155(6.11) (H) × 50(1.97) (D) mm(inch)

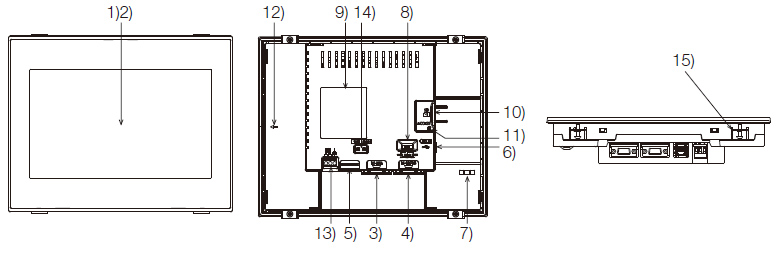

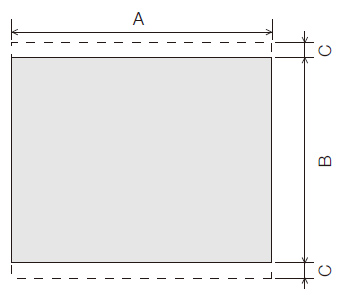

Panel cut dimensions		258(10.16) (W) × 200(7.88) (H) mm(inch)	191(7.52) (W) × 137(5.40) (H) mm(inch)
Weight (excluding a fitting)		1.3(2.9) kg(lb)	0.9(2.0) kg(lb)
Compatible software package		GT Works3 Version1.250L or later^*11

*1As a characteristic of liquid crystal display panels, bright dots (always lit) and dark dots (never lit) may appear on the panel. Since liquid crystal display panels comprise a great number of display elements, the appearance of bright and dark dots cannot be reduced to zero. Individual differences in liquid crystal display panels may cause differences in color, uneven brightness and flickering. Note that these phenomena are characteristics of liquid crystal display panels and it does not mean the products are defective or damaged.
*2Flickering may occur due to vibration, shock, or the display colors.
*3When a stylus is used, the touch panel has a life of 100 thousand touches. The stylus must satisfy the following specifications.
•Material: polyacetal resin •Tip radius: 0.8 mm or more
*4To prevent the display section from burning in and lengthen the backlight life, enable the screen save function and turn off the backlight.
*5If you touch two points or more simultaneously on the touch panel, a touch switch near the touched points may operate unexpectedly. Do not touch two points or more simultaneously on the touch panel.
*6Note that the structure does not guarantee protection in all users' environments. The GOT may not be used in certain environments where it is subjected to splashing oil or chemicals for a long period of time or soaked in oil mist.
*7The minimum size of a key that can be arranged. To ensure safe use of the product, the following settings are recommended.
•Key size: 16 × 16 dots or larger •Distance between keys: 16 dots or more
*8The suffix "F" of IP65F is a symbol that indicates protection rate against oil. It is described in the Appendix of Japanese Industrial Standard JIS C 0920.
*9Repeatedly touching the outer edge of the actual display area may cause the product to fail.
*10While writing data to the memory for storage (ROM) or an SD memory card, if GOT is powered off, the data may be corrupted which may cause the GOT to stop operating.
*11To use new functions, the latest version of GT Works3 is required.
