Human-Machine Interfaces(HMIs)-GOT GOT SIMPLE Series

Simple model with pursued usability

The GOT SIMPLE Series upgrade includes the five most demanded new features

GS21-NNew Version

  • Ethernet
  • RS-232
  • RS-422/485
  • CC-Link IE Field Basic

10 inch

  • WVGA
    800×480
  • TFT
    65536
    colors
  • Memory for storage (ROM) 15 MB
  • Power
    24 V DC

7 inch

  • WVGA
    800×480
  • TFT
    65536
    colors
  • Memory for storage (ROM) 15 MB
  • Power
    24 V DC

GS21Old Version

  • Ethernet
  • RS-232
  • RS-422/485
  • CC-Link IE Field Basic

10 inch

  • WVGA
    800×480
  • TFT
    65536
    colors
  • Memory for storage (ROM) 9 MB
  • Power
    24 V DC

7 inch

  • WVGA
    800×480
  • TFT
    65536
    colors
  • Memory for storage (ROM) 9 MB
  • Power
    24 V DC

Hardware features

Item Specifications
GS2110-WTBD-N
[NEW]
GS2107-WTBD-N
[NEW]
GS2110-WTBD
[Discontinued]
GS2107-WTBD
[Discontinued]
Display 10" widescreen, TFT color LCD, 65536 colors 7" widescreen, TFT color LCD, 65536 colors 10" widescreen, TFT color LCD, 65536 colors 7" widescreen, TFT color LCD, 65536 colors
Resolution WVGA
Backlight White LED
User memory Memory for storage (ROM): 15 MB Memory for storage (ROM): 9 MB
Standard interface Ethernet, RS-232, RS-422/485 Ethernet, RS-232, RS-422
USB device (USB Mini-B): 1 channel (USB 1.1 (Full-Speed 12 Mbps))
SD memory card interface

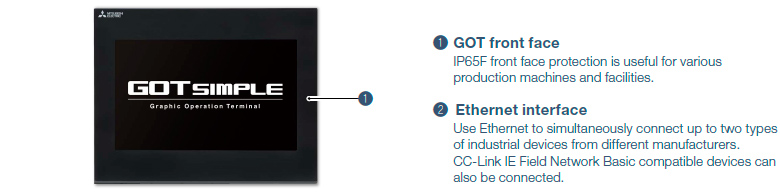

External appearance [front face/rear face]

GOT SIMPLE New Version

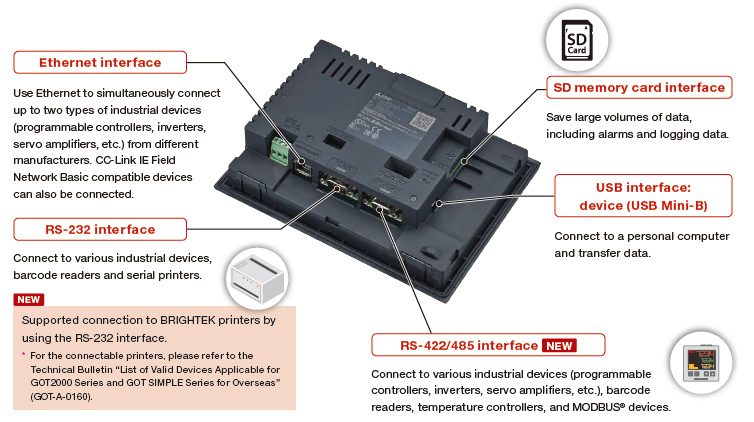

External appearance rear face

GOT SIMPLE Old Version

External appearance rear face
External appearance rear face

Professional designs in just a few clicks

GOT Screen Design Software / MELSOFT GT Works3

You can effectively use existing screen assets or design aesthetic screens with GT Works3, the software that can be commonly used for the GOT2000 Series and GOT SIMPLE Series.

  • *Use GT Works3 Version 1.250L or later to design screens of GS21-N models.
  • *For the details of GT Works3 functions, please refer to "GT Works3".
MELSOFT GT Works3

GT Works3 function details
