GOT Drive Control (Servo) Interactive Solutions

GOT Drive GOT Drive Control (Servo) Interactive Solutions

The GOT Drive easily visualizes the servo system status to realize speed up of the system startup and improve predictive maintenance and troubleshooting.

System configurations

Select the required connection type to match your system configuration. Multiple inverters can be monitored with one GOT by switching the target station number.

CASE 1
Ethernet/Serial direct connection

Ethernet/Serial direct connection

CASE 2
Simple Motion module connection

Simple Motion module connection

CASE 3
Motion controller connection

Motion controller connection

CASE 4
CC-Link IE Field Network connection

CC-Link IE Field Network connection

Adjust servos without a personal computer!

One-touch tuning function

Just a single touch on the switch on the GOT screen to perform adjustment work, which is difficult without experience. You can adjust servo amplifier automatically by selecting from three response modes.

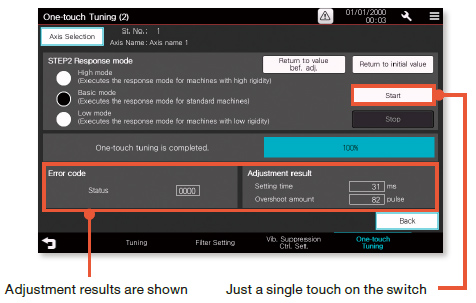

One-touch tuning screen*1

Parameter settings (simple mode)
  • *1Sample screens are available for connection with MR-JE-A and MR-JE-B for the GOT SIMPLE series.

Tuning function

After one-touch tuning, to obtain higher performance, you can perform fine tuning of gain parameters, machine resonance suppression filter, and vibration suppression control parameters in the tuning screen.

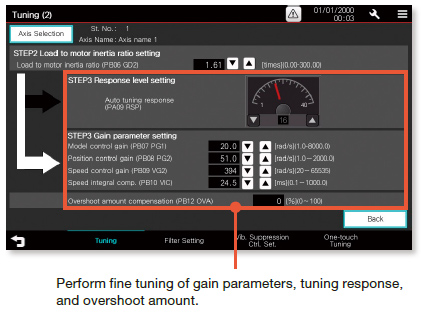

Tuning screen*1

Tuning screen
  • *1Sample screens are available for connection with MR-JE-A and MR-JE-B for the GOT SIMPLE series.

Predict machine deterioration and improve system predictive maintenance without a personal computer!

Machine diagnosis function

GOT can display estimated values (machine friction, torque vibration, etc.) that are collected by the machine diagnosis function of the servo amplifier. The difference between the initial value (at the startup) and the current value can be used to predict deterioration of the machine. Using this function with the GOT's alarm function will help you perform timely maintenance of machine parts.

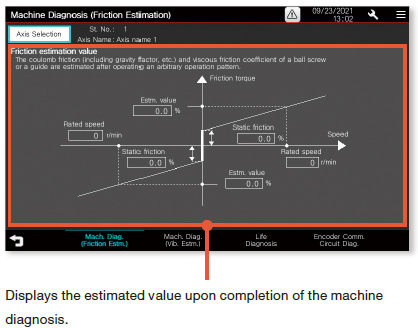

Machine diagnosis screen*1

Machine diagnosis screen
  • *1Sample screens are available for connection with MR-JE-A and MR-JE-B for the GOT SIMPLE series.

Supports predictive maintenance functions of servo amplifiers!

Servo amplifier life diagnosis function

Check cumulative operation time, on/off counts of inrush relay on GOT. In addition, replacement timing of servo amplifier components (capacitor, relay) can be displayed on the GOT.

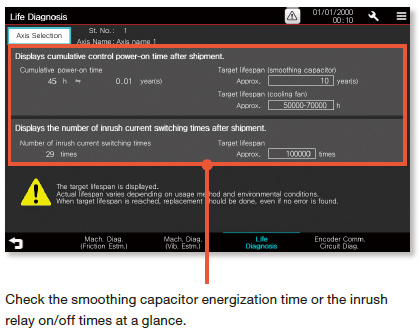

Servo amplifier life diagnosis screen*1

  • *1Sample screens are available for connection with MR-JE-A and MR-JE-B for the GOT SIMPLE series.
