Small screen, big possibilities

GT2103-PMBD

Small, compact, easy to operate!

Ethernet built into a compact body!
The intuitively understandable 5-color backlight offers choices of backlight color and backlight blink according to machine operation state.

Item Specifications
Display 3.8", monochrome (black/white), 32 shade grayscale TFT LCD display
Resolution 320 × 128 dots
Backlight 5-color LED (white, green, pink, orange, red)
User memory Memory for storage (ROM): 3 MB
Standard interface Ethernet, RS-422/485
USB device (USB Mini-B): 1 channel (USB 1.1 (Full-Speed 12 Mbps))
Extension interface For installing an SD memory card unit

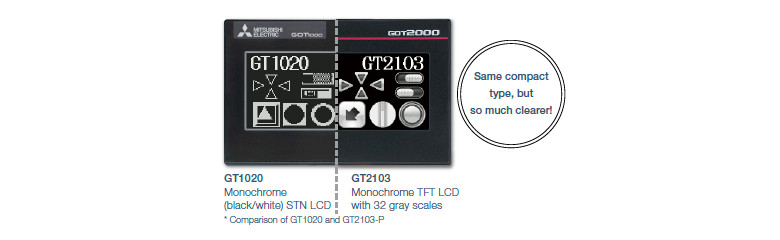

High-definition LCD

GT2103 is equipped with an easy to see, compact high-resolution TFT LCD with 32 gray scales.

High-definition LCD

SD memory card unit is available!

SD memory cards can be used when the optional SD memory card unit is attached.

SD memory card

GT2103-PMBD external appearance [rear face]

GT2103-PMBD:rear face
①SD memory card unit interface Connect an optional SD memory card unit and save data including alarms and logging data.

*Excluding GT2103-PMBLS

②USB interface: device (USB Mini-B) Connect to a personal computer and transfer data.
③RS-422/485 interface Connect to various industrial devices and barcode readers.

*Excluding GT2103-PMBDS2

*RS-422 on GT2103-PMBLS (dedicated to FX connection)

④Ethernet interface Use Ethernet to simultaneously connect up to two types of industrial devices from different manufacturers.
CC-Link IE Field Network Basic compatible devices can also be connected.

*GT2103-PMBD only

GT21 model product map

See details of GT21 model product map
