Human-Machine Interfaces(HMIs)-GOT GOT2000 Series
Interactive Features with Other Industrial Devices
Support visualization of a large scale system
GENESIS64™ interaction function (Gateway function)
Having problems?

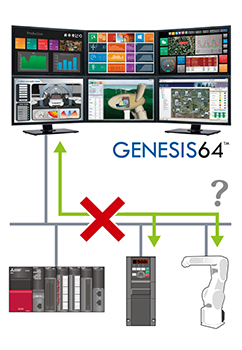

Can we collect and manage the information of industrial devices by accessing them from SCADA without using an OPC server?
GOT will solve your problems!

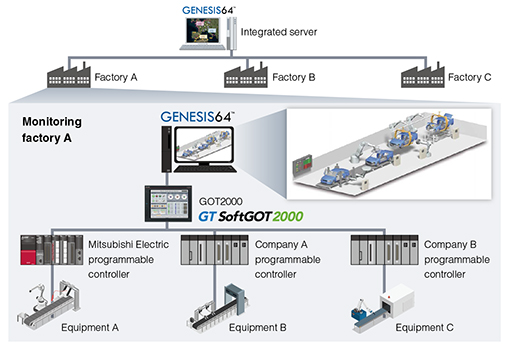

The GENESIS64™ SCADA software can collect the information of devices on each equipment via GOT2000 or GT SoftGOT2000 that is installed on the shop floor. This is useful not only for monitoring the operation status of equipment in each factory, but also for advanced preventive maintenance and predictive maintenance.
Function features

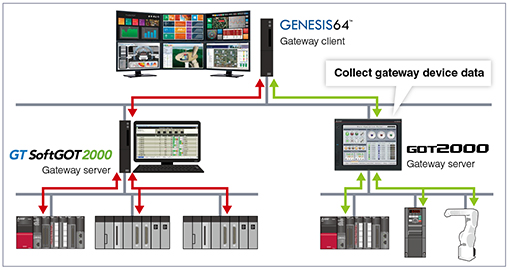

The GENESIS64™ SCADA software can collect the data of connected devices via gateway devices of GOT2000 or GT SoftGOT2000 that acts as a gateway server.
After establishing correlation between GENESIS64™ tags1* and GOT2000 gateway devices, the users can make settings with familiar tags on SCADA without worrying about actual device names.
- *1The "tags" are data used when GENESIS64™ accesses external data.
Easy connection without OPC server
OPC servers are not required when GENESIS64™ reads and writes data of devices connected to GOT2000 using GOT gateway devices.
| Related materials | ||
|---|---|---|
|
|
Created :
Size : (PDF) |
|
Specification details and restrictions
●Applicable SCADA software
GENESIS64™ Version10.97.1 or later
●Applicable GT Designer3
Version1.265B or later
●Number of GOT2000 (servers) simultaneously accessible to a personal computer (GENESIS64™)
16 maximum
●Number of automatically detectable units and modules
255 maximum (the total of GOT2000 and GT SoftGOT2000*1 modules)
- *1For GT SoftGOT2000, the number of running modules is the maximum number of automatically detectable modules.
●Devices that can be monitored and accessible range from GENESIS64™
For the details, please refer to the
