Human-Machine Interfaces(HMIs)-GOT GOT2000 Series
Sophisticated Programmable Controller Interactive Features
Support debug of SFC programs
Sequence program monitor (SFC) function
Having problems?
How can I debug SFC programs without a personal computer?
GOT will solve your problems!

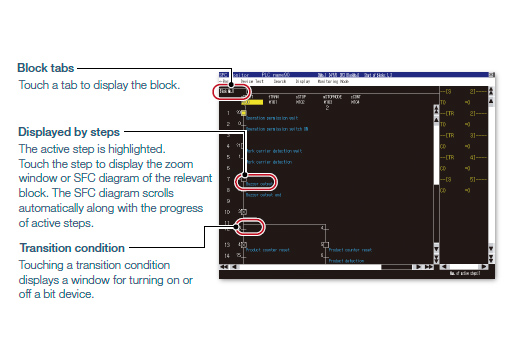

GOT can monitor SFC programs of the PLC CPU and display the programs in the SFC diagram format (MELSAP3 or MELSAP-L format).
Function features
With the sequence program monitor (SFC), the GOT can monitor SFC programs of controllers, and changing device values of the programs is available.
The function can be used to solve problems and maintain programmable controller systems that use SFC programs.
Step list
GOT displays steps in the displayed block.
Active step list
GOT displays active steps in the displayed block.
Specification details and restrictions
- *For the necessary option devices, please refer to the “Function list”.
●Target models
QCPU (Q mode), LCPU
●Supported connection types*1
Ethernet connection*2, direct CPU connection (serial)*3, serial communication connection, CC-Link IE Controller Network connection, CC-Link IE Field Network connection, CC-Link connection, bus connection, MELSECNET connection
- *1For details on the connectable models for each connection type, please refer to the “Connectable model list” in the
- *2When the CC-Link IE Field Network Ethernet adapter module is used, the sequence program monitor (SFC) function cannot be used.
- *3When the Q12PRHCPU or Q25PRHCPU is used, the sequence program monitor (SFC) function cannot be used.
