Human-Machine Interfaces(HMIs)-GOT GOT2000 Series
GOT Drive Control (Servo) Interactive Solutions
Support servo system maintenance
Servo amplifier life diagnosis function
Having problems?
A problem occurred at the shop floor. Can I check the situation in my office?
GOT will solve your problems!
Without creating screens for remote monitoring, check the shop floor on GT SoftGOT2000 by reading project data from GOT at the shop floor.
Function features
GOT displays the amplifier life diagnosis screen that is equivalent to the maintenance functions of MR Configurator2.
You can easily check the internal data of servo amplifiers on the GOT without a personal computer.

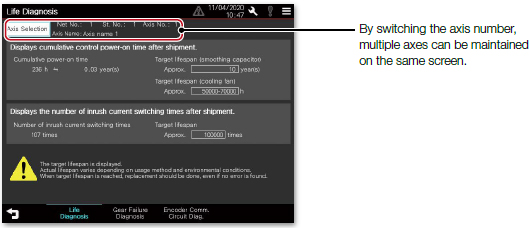

Life diagnosis screen*1
Check cumulative operation time, on/off counts of inrush relay on GOT. In addition, replacement timing of servo amplifier components (capacitor, relay) can be displayed on the GOT.
*1Ready to use sample screens (VGA) are available.
Specification details and restrictions
●Target models
MELSERVO-J5 Series (MR-J5-□G(-RJ), MR-J5W2-□G, MR-J5W3-□G, MR-J5D1-□G4, MR-J5D2-□G4, MR-J5D3-□G4), MELSERVO-J4 Series (MR-J4-□A(-RJ), MR-J4-□B(-RJ), MR-J4W2-□B, MR-J4W3-□B, MR-J4-□GF(-RJ)), MELSERVO-JE Series (MR-JE-□A, MR-JE-□B)
●Supported connection types*1
Direct connection with a servo amplifier (RS-422, Ethernet), connection via Motion controller/Simple Motion module, connection via CC-Link IE Field Network Simple Motion module/master or local station module, connection via Motion module
*1For details on the connectable models for each connection type, please refer to the "Connectable model list" in the
●How to obtain sample screens
Sample screens are included in GT Works3. For the details, please contact your local sales office.
The sample screens are supported by the following GT Works3 versions.
MR-J5-□G: Ver.1.245F or later, MR-J4-□A(-RJ): Ver.1.126G or later, MR-J4-□B(-RJ), MR-J4W2-□B, MR-J4W3-□B: Ver.1.155M or later, MR-JE-□B: Ver.1.150G or later.
Recommended industries
Supported GOT types
- *Excluding some devices and connection types. please refer to the "Connectable model list" in the
