Human-Machine Interfaces (HMIs)-GOT FA Application Package iQ Monozukuri
Easily implement iQ Monozukuri Process Remote Monitoring system

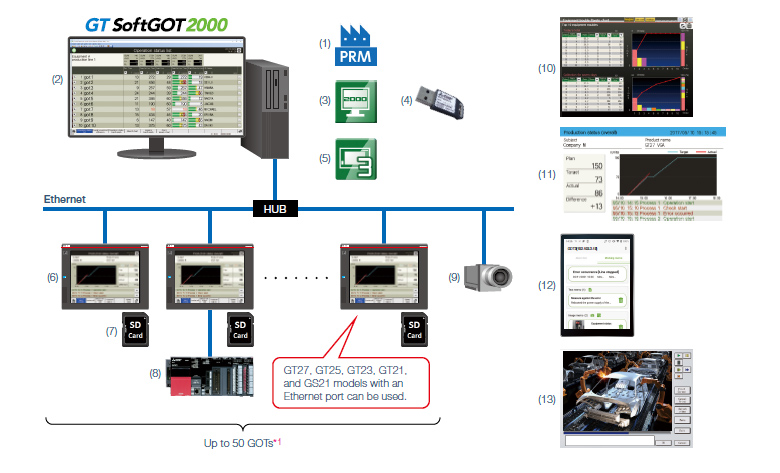

System configuration example
- *1Up to five GOTs can be managed for each license. To manage information of 50 GOTs, purchase the product including 10 licenses.
| Mitsubishi Electric FA application package | ||
|---|---|---|
| (1) | iQ Monozukuri Process Remote Monitoring | Process Remote Monitoring setting tool iQ Monozukuri Process Remote Monitoring template project for GT SoftGOT2000 |
| Products to be prepare by users (Required) | ||
|---|---|---|
| (2) | Personal computer + display or MELIPC MI3000 |
A personal computer to run the software necessary for iQ Monozukuri Process Remote Monitoring. |
| (3) | GT SoftGOT2000 | Software to display processes monitoring and analysis results of resource data on the personal computer screen. The software is included in HMI/GOT Screen Design Software GT Works3. |
| (4) | GT SoftGOT2000 license key | License key to use GT SoftGOT2000. When using MELIPC MI3000 (see (2)), the license key is pre-installed so that it is not required to purchase separately. |
| (5) | GT Designer3 | Software to create or change an iQ Monozukuri Process Remote Monitoring template project for GT SoftGOT2000 and on-site GOT project files. The software is included in HMI/GOT Screen Design Software GT Works3. |
| (6) | GOT2000 | GT27, GT25, GT23, GT21, and GS21 models with an Ethernet port can be used. |
| Products to be prepare by users (Optional) | ||
|---|---|---|
| (7) | Data storage | Required to use resource interaction or operator information management of iQ Monozukuri Process Remote Monitoring functions. |
| (8) | Devices such as programmable controller or drive equipment | Provides information of shop floor such as operating time, production quantity, and operating conditions to on-site GOTs. Models that support a communication driver of an on-site GOT can be used. |
| (9) | Network camera, etc. | Used to check the on-site conditions by video. |
| (10) | VNC server function license | License necessary to browse on-site GOT screens via a personal computer which uses this application package. |
| (11) | GOT Mobile function license | License necessary to browse on-site GOT Mobile screens via a personal computer which uses this application package. |
| (12) | Mobile terminal | Required when using the working memo function of the Pocket GOT mobile app for Android™OS or iOS®. |
| (13) | Others | Prepare necessary items depending on the devices and functions to be used (browsers to display camera images or display web pages, user-created applications, etc.). |

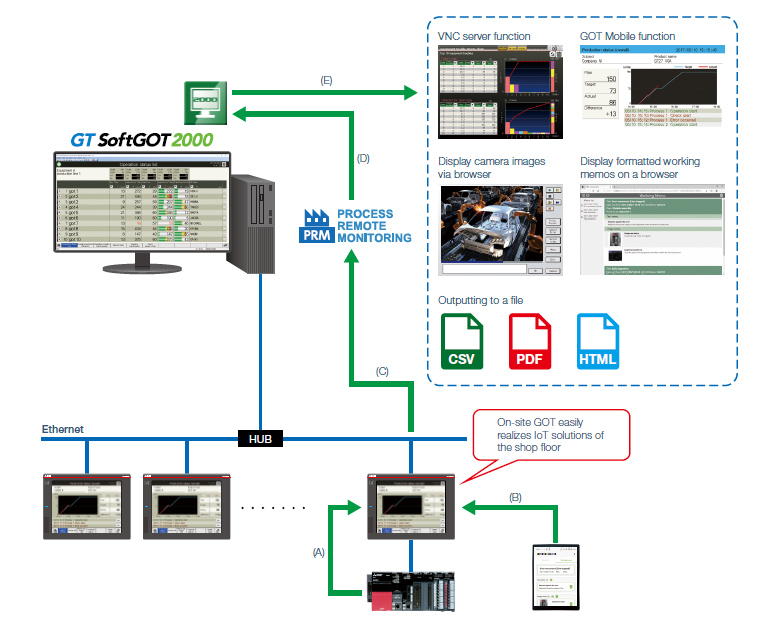

Data flow and each purpose
- (A)On-site GOTs collect data of connected devices.
- (B)The mobile app sends the information entered with the working memo function to the on-site GOTs.
- (C)Process Remote Monitoring setting tool collects data collected by on-site GOTs.
- (D)The data collected by Process Remote Monitoring setting tool is displayed in GT SoftGOT2000.
- (E)GT SoftGOT2000 outputs collected resource data files or starts other applications.
