MELSEC-Q Series Specifications list
Product categories
CPU
Specification comparisons
Displays a list of checked products specifications (up to 10 items).
| Large categories | Medium categories | Small categories | Model name | Outline | |
|---|---|---|---|---|---|
| Programmable controller CPU | Universal model | High-speed type | Q03UDVCPU | Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 30K steps, basic operation processing speed (LD X0): 1.9 ns, program memory capacity: 120K bytes, multi-CPU high-speed communication, external interface: USB/Ethernet, with memory card interface | |
| Programmable controller CPU | Universal model | High-speed type | Q04UDVCPU | Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 40K steps, basic operation processing speed (LD X0): 1.9 ns, program memory capacity: 160K bytes, multi-CPU high-speed communication, external interface: USB/Ethernet, with memory card interface | |
| Programmable controller CPU | Universal model | High-speed type | Q06UDVCPU | Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 60K steps, basic operation processing speed (LD X0): 1.9 ns, program memory capacity: 240K bytes, multi-CPU high-speed communication, external interface: USB/Ethernet, with memory card interface | |
| Programmable controller CPU | Universal model | High-speed type | Q13UDVCPU | Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 130K steps, basic operation processing speed (LD X0): 1.9 ns, program memory capacity: 520K bytes, multi-CPU high-speed communication, external interface: USB/Ethernet, with memory card interface | |
| Programmable controller CPU | Universal model | High-speed type | Q26UDVCPU | Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 260K steps, basic operation processing speed (LD X0): 1.9 ns, program memory capacity: 1040K bytes, multi-CPU high-speed communication, external interface: USB/Ethernet, with memory card interface | |
| Programmable controller CPU | Universal model | Q00UJCPU | Number of I/O points: 256, number of I/O device points: 8192, program size: 10K steps, processing speed (LD X0): 120 ns, program size: 40K bytes, peripheral connection ports: USB/RS-232, without memory card interface, base: 5 slots, power supply: 100...240 V AC input/5 V DC 3A output | ||
| Programmable controller CPU | Universal model | Q00UCPU | Number of I/O points: 1024, number of I/O device points: 8192, program capacity: 10K steps, basic operation processing speed (LD X0): 80 ns, program memory capacity: 40K bytes, external interface: USB/RS-232, without memory card interface | ||
| Programmable controller CPU | Universal model | Q01UCPU | Number of I/O points: 1024, number of I/O device points: 8192, program capacity: 15K steps, basic operation processing speed (LD X0): 60 ns, program memory capacity: 60K bytes, external interface: USB/RS-232, without memory card interface | ||

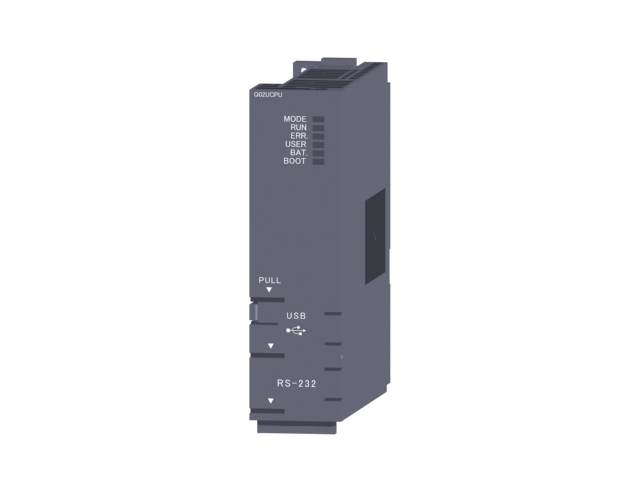

| Programmable controller CPU | Universal model | Q02UCPU | Number of I/O points: 2048, number of I/O device points: 8192, program capacity: 20K steps, basic operation processing speed (LD X0): 40 ns, program memory capacity: 80K bytes, external interface: USB/RS-232, with memory card interface | ||
| Programmable controller CPU | Universal model | Q03UDCPU 2026/10 To be discontinued |
Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 30K steps, basic operation processing speed (LD X0): 20 ns, program memory capacity: 120K bytes, multi-CPU high-speed communication, external interface: USB/RS-232, with memory card interface | ||
| Programmable controller CPU | Universal model | Q04UDHCPU 2026/10 To be discontinued |
Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 40K steps, basic operation processing speed (LD X0): 9.5 ns, program memory capacity: 160K bytes, multi-CPU high-speed communication, external interface: USB/RS-232, with memory card interface | ||
| Programmable controller CPU | Universal model | Q06UDHCPU 2026/10 To be discontinued |
Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 60K steps, basic operation processing speed (LD X0): 9.5 ns, program memory capacity: 240K bytes, multi-CPU high-speed communication, external interface: USB/RS-232, with memory card interface | ||
| Programmable controller CPU | Universal model | Q10UDHCPU 2026/10 To be discontinued |
Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 100K steps, basic operation processing speed (LD X0): 9.5 ns, program memory capacity: 400K bytes, multi-CPU high-speed communication, external interface: USB/RS-232, with memory card interface | ||

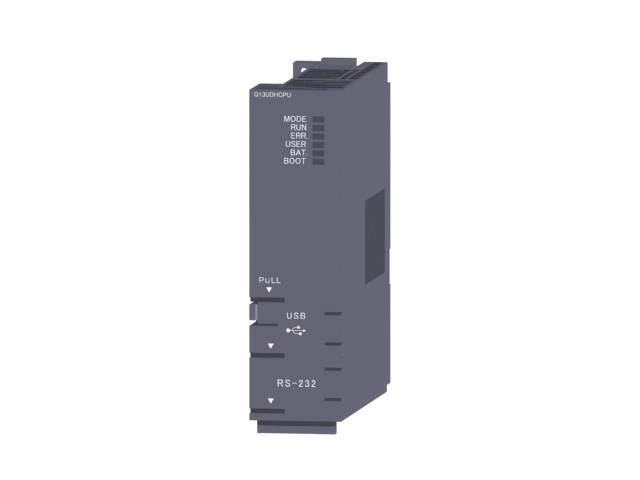

| Programmable controller CPU | Universal model | Q13UDHCPU 2026/10 To be discontinued |
Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 130K steps, basic operation processing speed (LD X0): 9.5 ns, program memory capacity: 520K bytes, multi-CPU high-speed communication, external interface: USB/RS-232, with memory card interface | ||
| Programmable controller CPU | Universal model | Q20UDHCPU 2026/10 To be discontinued |
Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 200K steps, basic operation processing speed (LD X0): 9.5 ns, program memory capacity: 800K bytes, multi-CPU high-speed communication, external interface: USB/RS-232, with memory card interface | ||
| Programmable controller CPU | Universal model | Q26UDHCPU 2026/10 To be discontinued |
Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 260K steps, basic operation processing speed (LD X0): 9.5 ns, program memory capacity: 1040K bytes, multi-CPU high-speed communication, external interface: USB/RS-232, with memory card interface | ||
| Programmable controller CPU | Universal model | Built-in Ethernet type | Q03UDECPU 2026/10 To be discontinued |
Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 30K steps, basic operation processing speed (LD X0): 20 ns, program memory capacity: 120K bytes, multi-CPU high-speed communication, external interface: USB/Ethernet, with memory card interface | |
| Programmable controller CPU | Universal model | Built-in Ethernet type | Q04UDEHCPU 2026/10 To be discontinued |
Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 40K steps, basic operation processing speed (LD X0): 9.5 ns, program memory capacity: 160K bytes, multi-CPU high-speed communication, external interface: USB/Ethernet, with memory card interface | |
| Programmable controller CPU | Universal model | Built-in Ethernet type | Q06UDEHCPU 2026/10 To be discontinued |
Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 60K steps, basic operation processing speed (LD X0): 9.5 ns, program memory capacity: 240K bytes, multi-CPU high-speed communication, external interface: USB/Ethernet, with memory card interface | |
| Programmable controller CPU | Universal model | Built-in Ethernet type | Q10UDEHCPU 2026/10 To be discontinued |
Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 100K steps, basic operation processing speed (LD X0): 9.5 ns, program memory capacity: 400K bytes, multi-CPU high-speed communication, external interface: USB/Ethernet, with memory card interface | |
| Programmable controller CPU | Universal model | Built-in Ethernet type | Q13UDEHCPU 2026/10 To be discontinued |
Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 130K steps, basic operation processing speed (LD X0): 9.5 ns, program memory capacity: 520K bytes, multi-CPU high-speed communication, external interface: USB/Ethernet, with memory card interface | |
| Programmable controller CPU | Universal model | Built-in Ethernet type | Q20UDEHCPU 2026/10 To be discontinued |
Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 200K steps, basic operation processing speed (LD X0): 9.5 ns, program memory capacity: 800K bytes, multi-CPU high-speed communication, external interface: USB/Ethernet, with memory card interface | |
| Programmable controller CPU | Universal model | Built-in Ethernet type | Q26UDEHCPU 2026/10 To be discontinued |
Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 260K steps, basic operation processing speed (LD X0): 9.5 ns, program memory capacity: 1040K bytes, multi-CPU high-speed communication, external interface: USB/Ethernet, with memory card interface | |

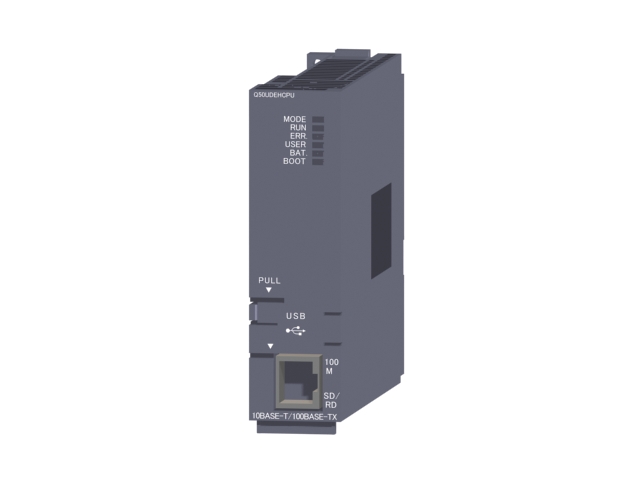

| Programmable controller CPU | Universal model | Built-in Ethernet type | Q50UDEHCPU | Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 500K steps, basic operation processing speed (LD X0): 9.5 ns, program memory capacity: 2000K bytes, multi-CPU high-speed communication, external interface: USB/Ethernet, with memory card interface | |
| Programmable controller CPU | Universal model | Built-in Ethernet type | Q100UDEHCPU | Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 1000K steps, basic operation processing speed (LD X0): 9.5 ns, program memory capacity: 4000K bytes, multi-CPU high-speed communication, external interface: USB/Ethernet, with memory card interface | |
| Programmable controller CPU | Basic model | Q00JCPU 2018/09 Discontinued |
Number of I/O points: 256, number of I/O device points: 2048, program capacity: 8K steps, basic operation processing speed (LD X0): 200 ns, program memory capacity: 58K bytes, external interface: RS-232, without memory card interface, base: 5 slots, power-supply: 100...240 V AC input/5 V DC 3A output | ||
| Programmable controller CPU | Basic model | Q00JCPU-E 2010/09 Discontinued |
Number of I/O points: 256, number of I/O device points: 2048, program capacity: 8K steps, basic operation processing speed (LD X0): 200 ns, program memory capacity: 58K bytes, external interface: RS-232, without memory card interface, base: 5 slots, power-supply: 100...240 V AC input/5 V DC 3A output (English manual included) | ||
| Programmable controller CPU | Basic model | Q00CPU 2018/09 Discontinued |
Number of I/O points: 1024, number of I/O device points: 2048, program capacity: 8K steps, basic operation processing speed (LD X0): 160 ns, program memory capacity: 94K bytes, external interface: RS-232, without memory card interface | ||
| Programmable controller CPU | Basic model | Q01CPU 2018/09 Discontinued |
Number of I/O points: 1024, number of I/O device points: 2048, program capacity: 14K steps, basic operation processing speed (LD X0): 100 ns, program memory capacity: 94K bytes, external interface: RS-232, without memory card interface | ||

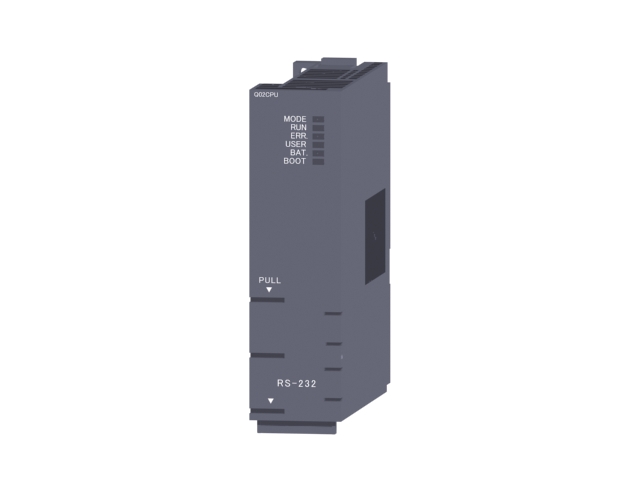

| Programmable controller CPU | High Performance model | Q02CPU 2018/09 Discontinued |
Number of I/O points: 4096, number of I/O device points: 8192, program capacity: 28K steps, basic operation processing speed (LD X0): 79 ns, program memory capacity: 112K bytes, external interface: RS-232, with memory card interface |
*Please check or inquire it in each overseas sales company site because the sale situation is different depending on each countries.
