MELSERVO-JET Series Linear Servo Motor Model Designation

製品情報

LM-H3 series
LM-AJ series
LM-AU series
Related Link

LM-H3 series ^{(Note 1)}

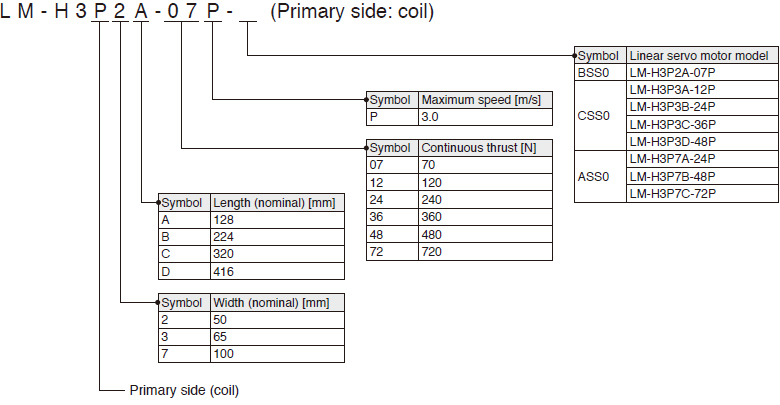

LM-H3 Primary side: coil

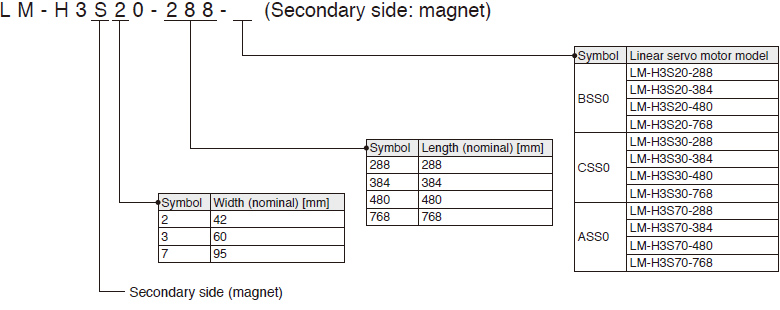

LM-H3 Secondary side: magnet

Notes:

1. This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.

LM-AJ series ^{(Note 1)}

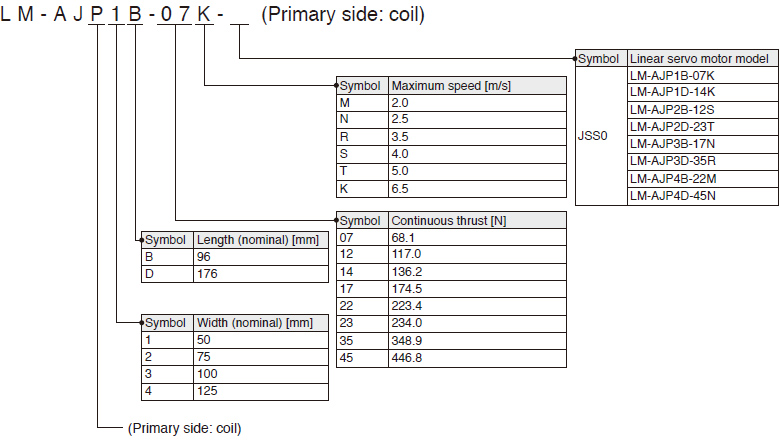

LM-AJ Primary side: coil

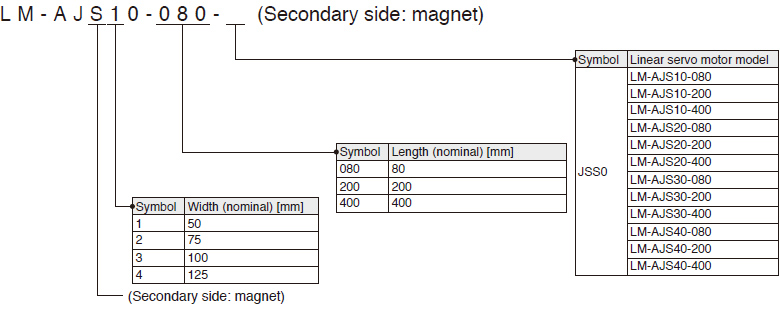

LM-AJ Secondary side: magnet

Notes:

1. This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.

LM-AU series ^{(Note 1)}

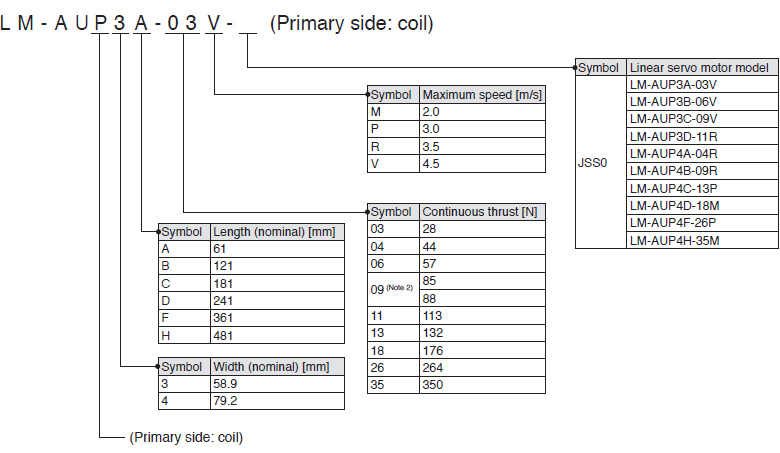

LM-AU Primary side: coil

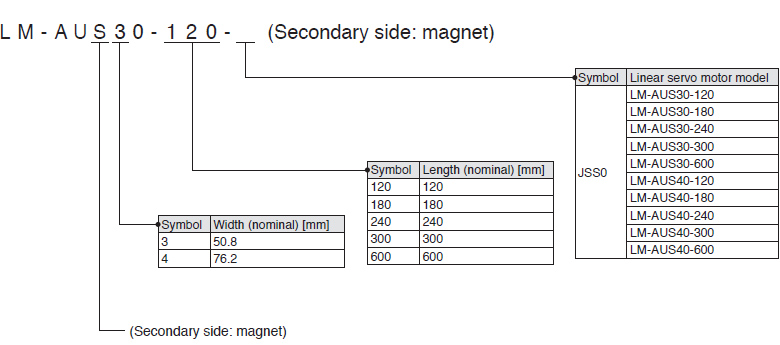

LM-AU Secondary side: magnet

Notes:

1. This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.
2. The continuous thrust for LM-AUP3C-09V-JSS0 is 85 N.
The continuous thrust for LM-AUP4B-09R-JSS0 is 88 N.

*The characteristics and numerical values without tolerances are representative values.
