MELSERVO-J4 Series Linear Servo Motor

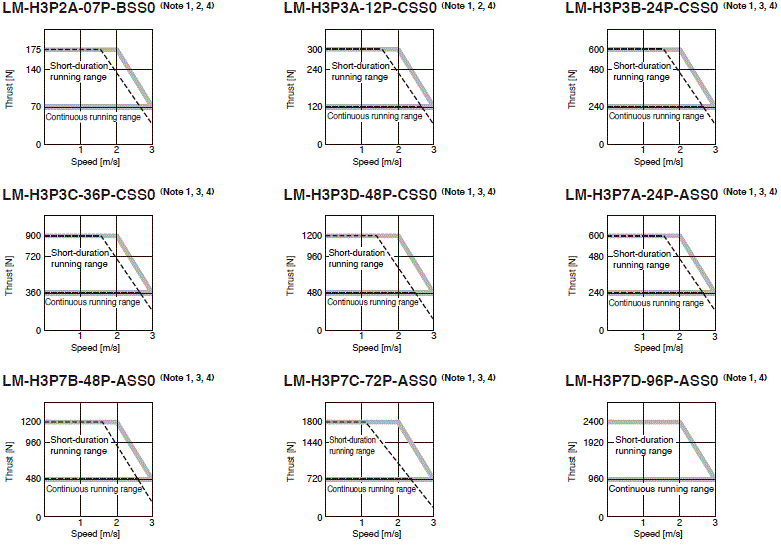

LM-H3 Series Thrust Characteristics

LM-H3 Series Thrust Characteristics

Notes:
  • AC200V,AC230V: For 3-phase 200 V AC.
  • AC100: For 1-phase 200 V AC or 1-phase 100 V AC.
  • AC100: For 1-phase 200 V AC.
  • Thrust drops when the power supply voltage is below the specified value.
page top

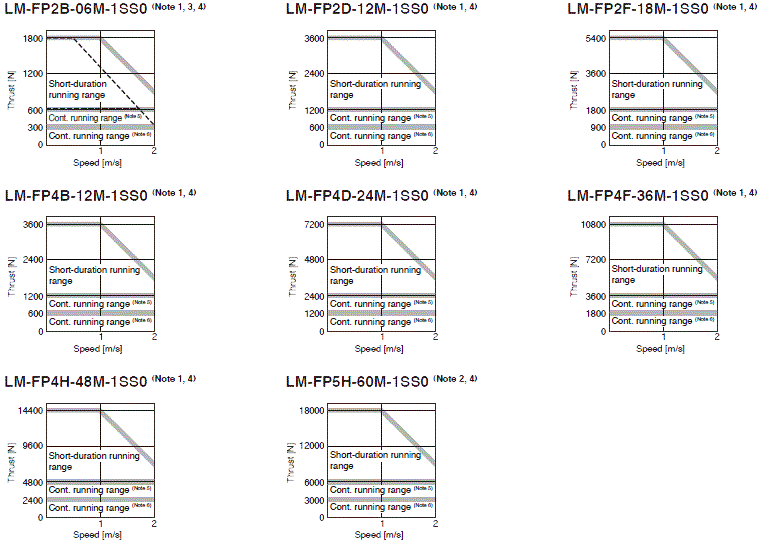

LM-F Series Thrust Characteristics

LM-F Series Thrust Characteristics

Notes:
  • AC200V,AC230V: For 3-phase 200 V AC.
  • AC200V,AC230V: For 3-phase 400 V AC.
  • AC100: For 1-phase 200 V AC.
  • Thrust drops when the power supply voltage is below the specified value.
  • Continuous running range (liquid cooling)
  • Continuous running range (natural cooling)
page top

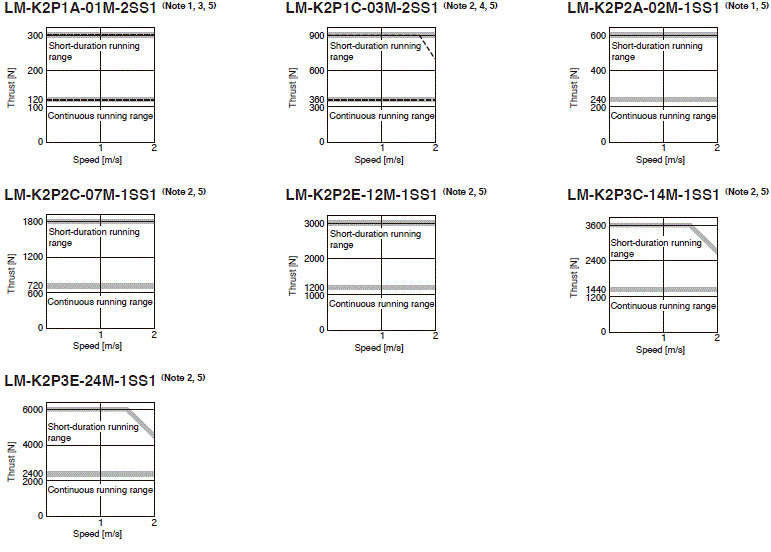

LM-K2 Series Thrust Characteristics

LM-K2 Series Thrust Characteristics

Notes:
  • AC200V,AC230V: For 3-phase 200 V AC or 1-phase 200 V AC.
  • AC200V,AC230V: For 3-phase 200 V AC.
  • AC100: For 1-phase 100 V AC.
  • AC100: For 1-phase 200 V AC.
  • Thrust drops when the power supply voltage is below the specified value.
page top

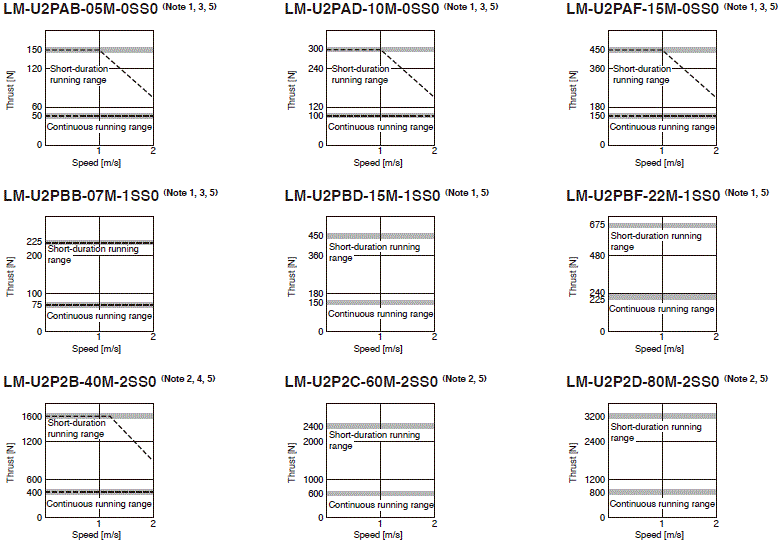

LM-U2 Series Thrust Characteristics

LM-U2 Series Thrust Characteristics

Notes:
  • AC200V,AC230V: For 3-phase 200 V AC or 1-phase 200 V AC.
  • AC200V,AC230V: For 3-phase 200 V AC.
  • AC100: For 1-phase 100 V AC.
  • AC100: For 1-phase 200 V AC.
  • Thrust drops when the power supply voltage is below the specified value.
page top
  • * The characteristics and numerical values without tolerances are representative values.
