MELSERVO-J4 Series Linear Servo Motor

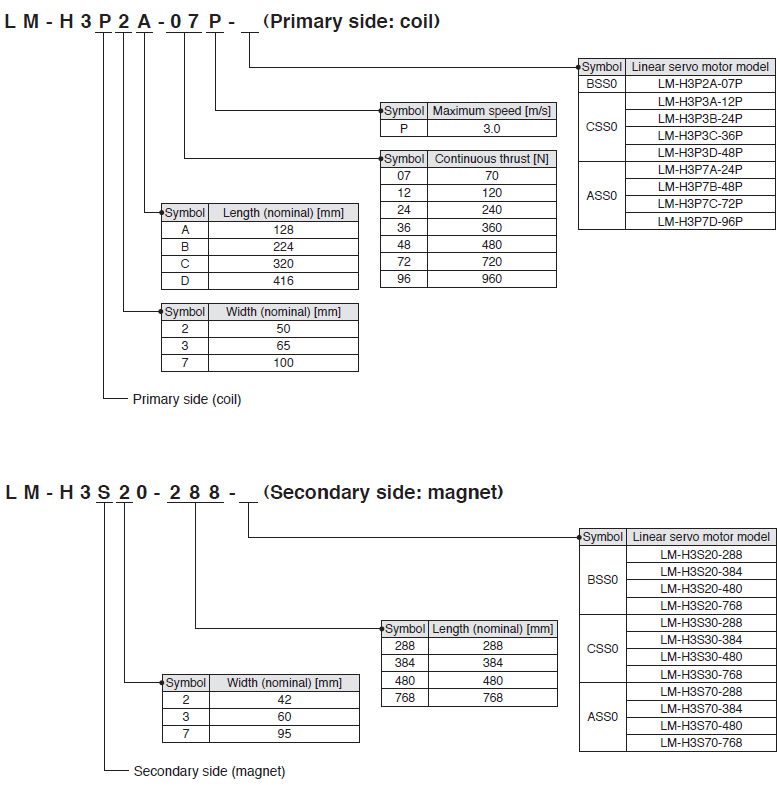

LM-H3 series (Note 1)
![LM-H3 series](images/lm-h3_1.jpg)
- Notes:
-
- This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.

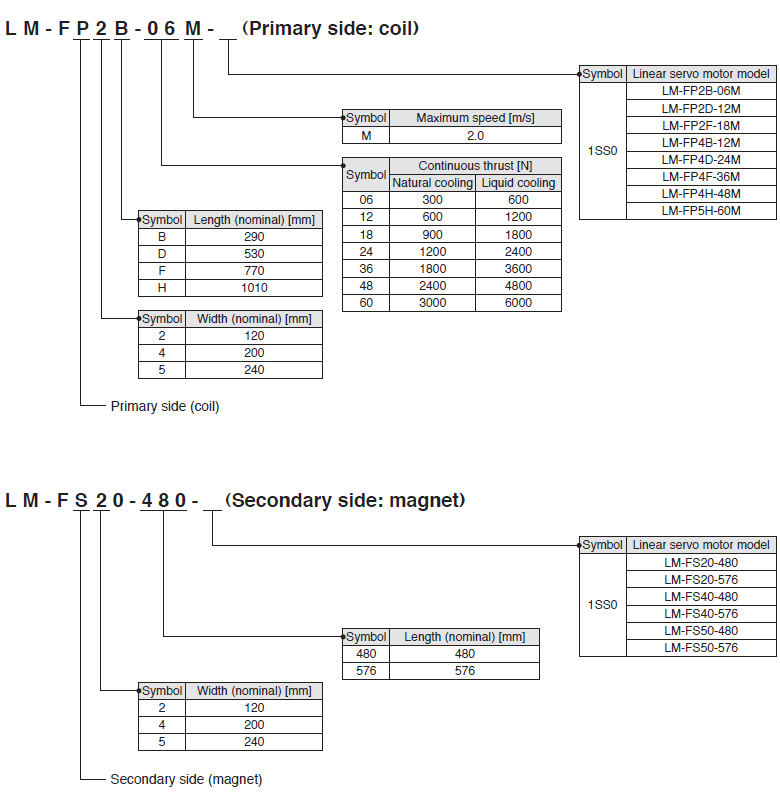

LM-F series (Note 1)
![LM-F series](images/lm-f_1.jpg)
- Notes:
-
- This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.

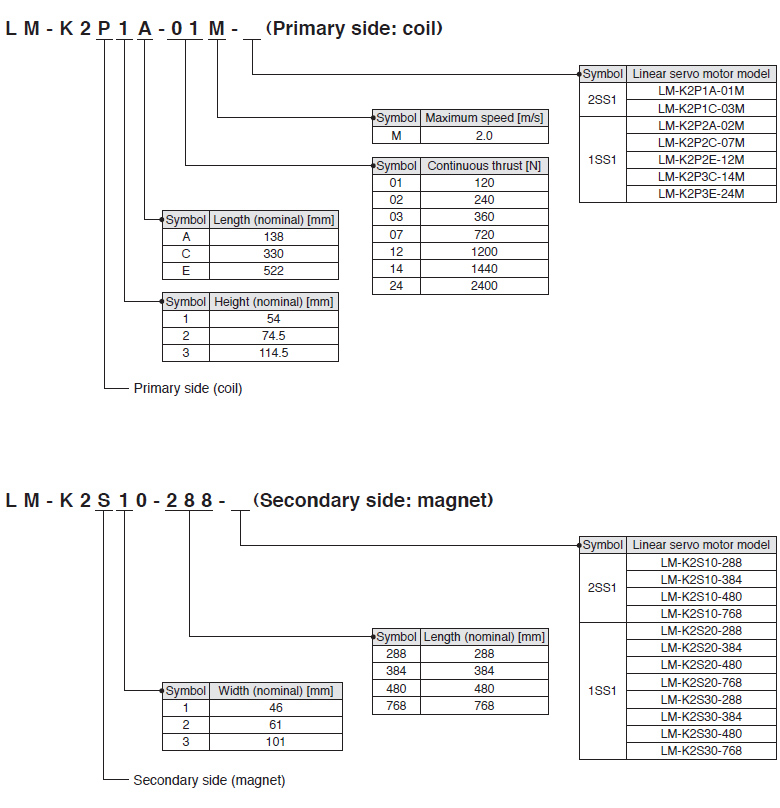

LM-K2 series (Note 1)
![LM-K2 series](images/lm-k2_1.jpg)
- Notes:
-
- This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.
LM-U2 series (Note 1)

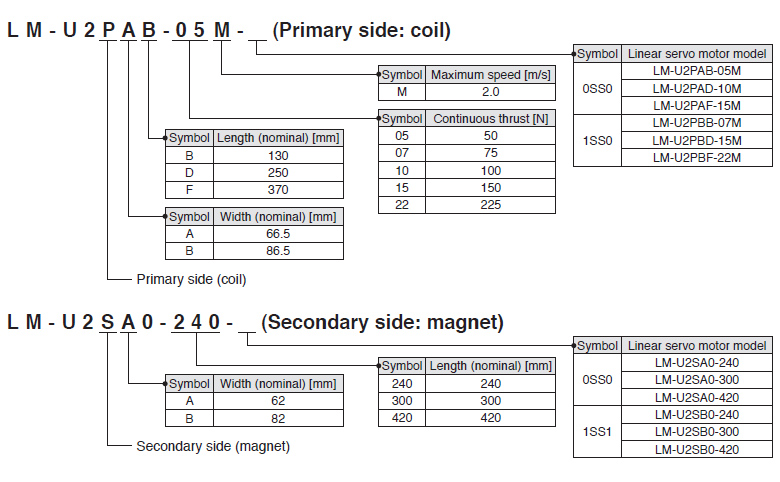

LM-U2 (medium thrust) series
![LM-U2 (medium thrust) series](images/lm-u2_1.jpg)

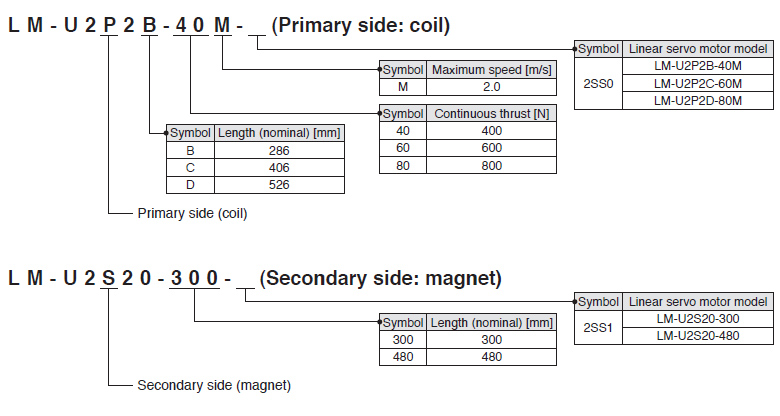

LM-U2 (large thrust) series
![LM-U2 (large thrust) series](images/lm-u2_2.jpg)
- Notes:
-
- This section describes what each symbol in a model name indicates. Some combinations of symbols are not available.
- * The characteristics and numerical values without tolerances are representative values.
