From inverter startup to maintenance, this versatile software allows the user to specify settings easily at the computer.

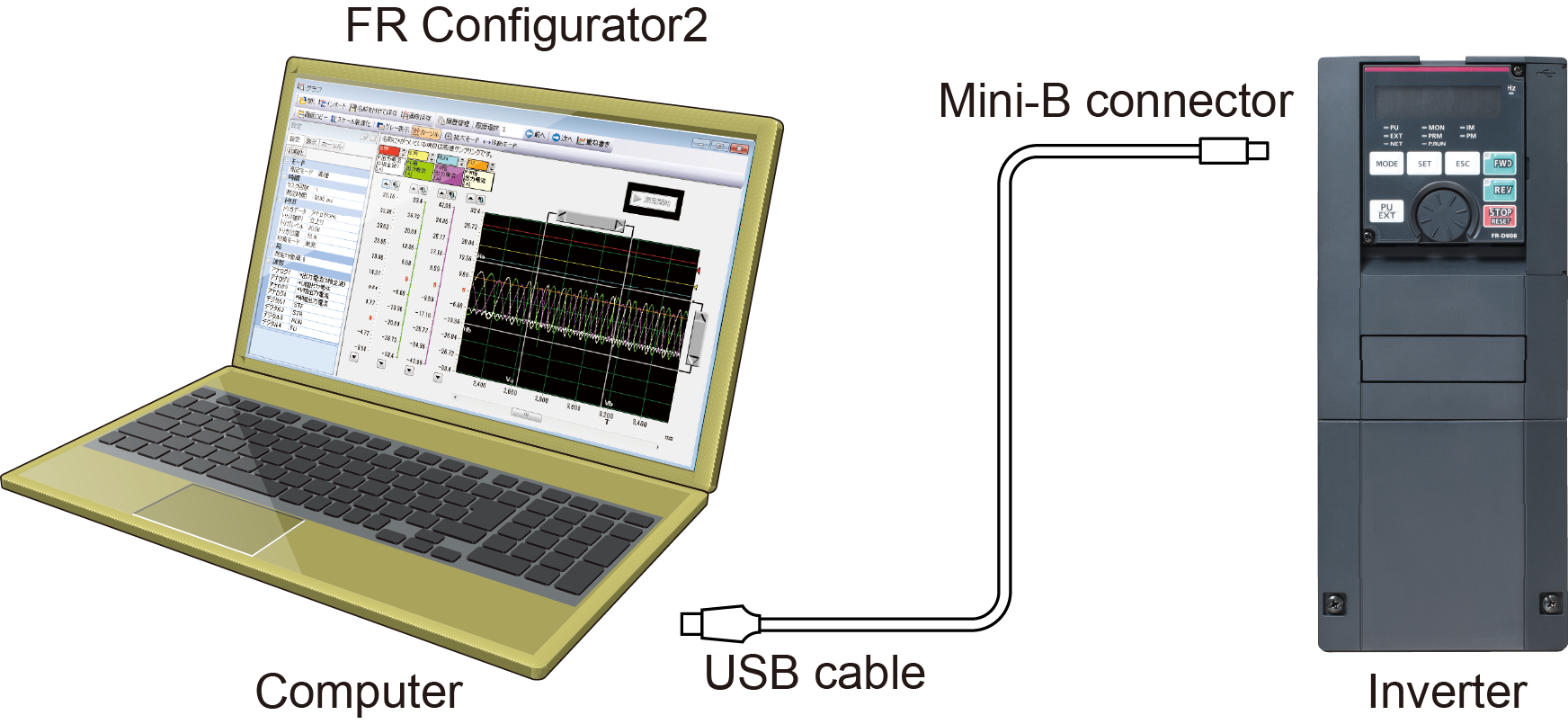

Easy connection with a USB cable
A USB connector (Mini-B connector) is provided as standard. Easy connection to the computer without the need for a converter.
![](./img/config2_01.png)

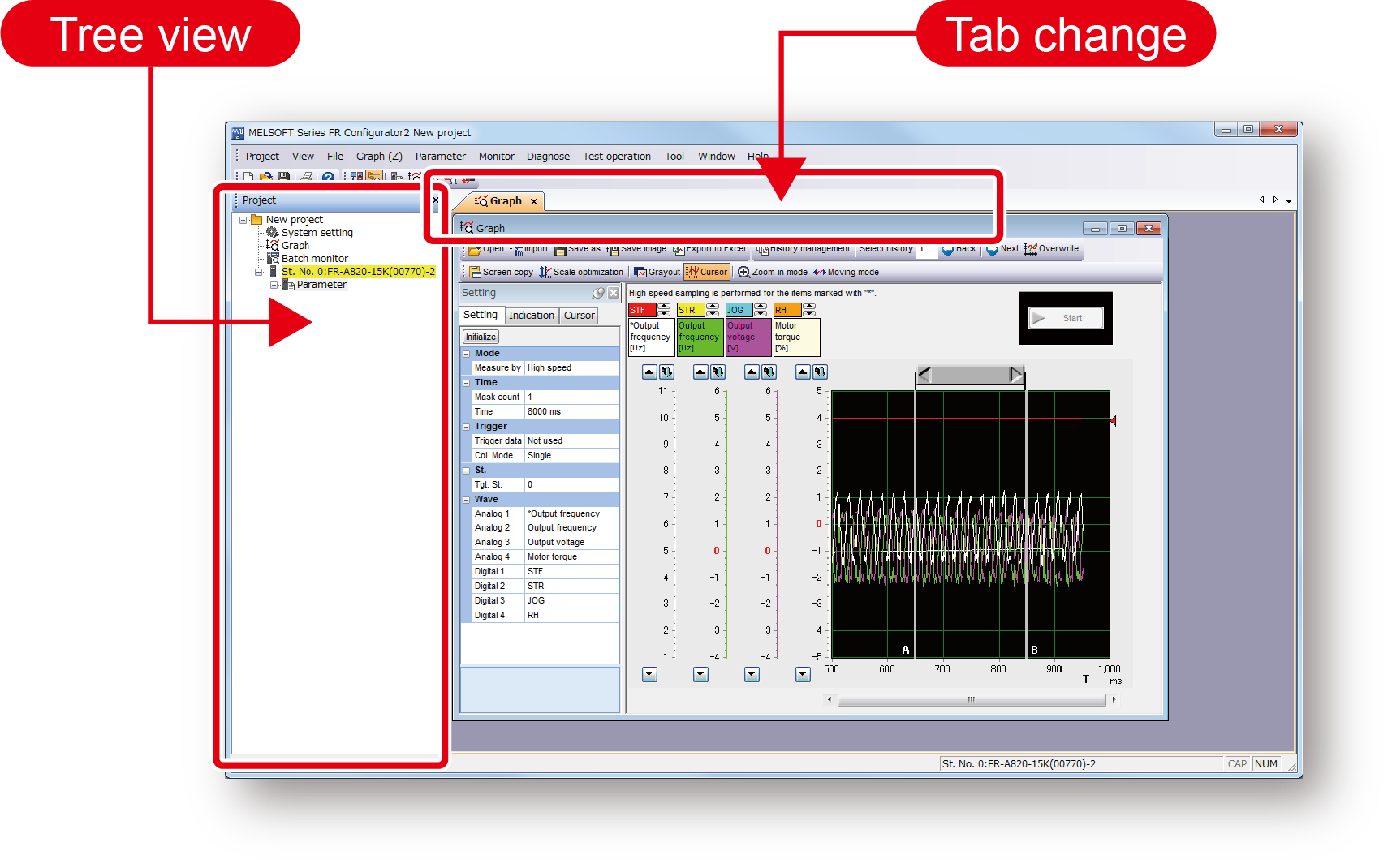

Intuitive user interface
Connected inverters are displayed in tree view format. Windows for each function can be accessed by changing the tab for maximum efficiency.
![](./img/config2_02.png)

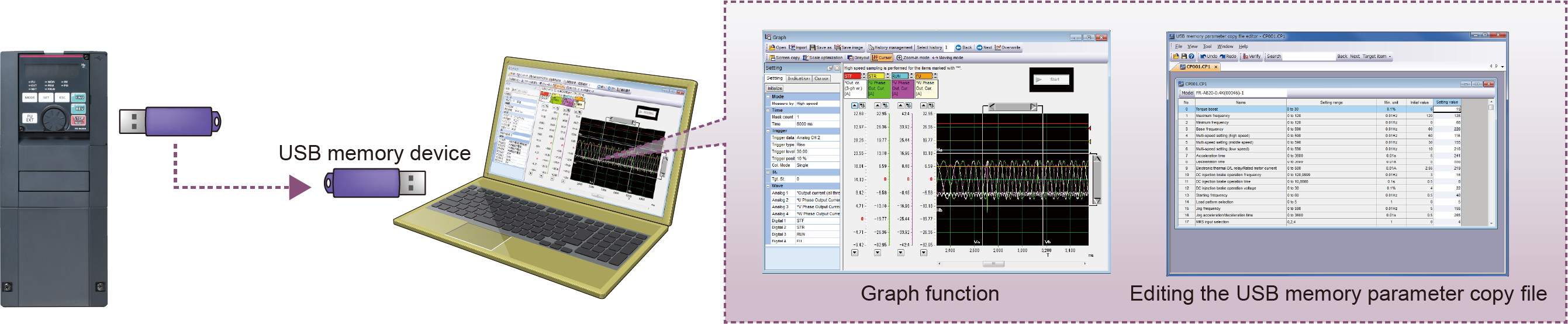

Work can be carried out away from the equipment using a USB memory device
By loading trace data and parameter settings copied to a USB memory device into FR Configurator2, analysis and adjustments can be carried out with ease away from the equipment.
![](./img/config2_03.png)
![](./img/sp_fr_config2_img_03.png)

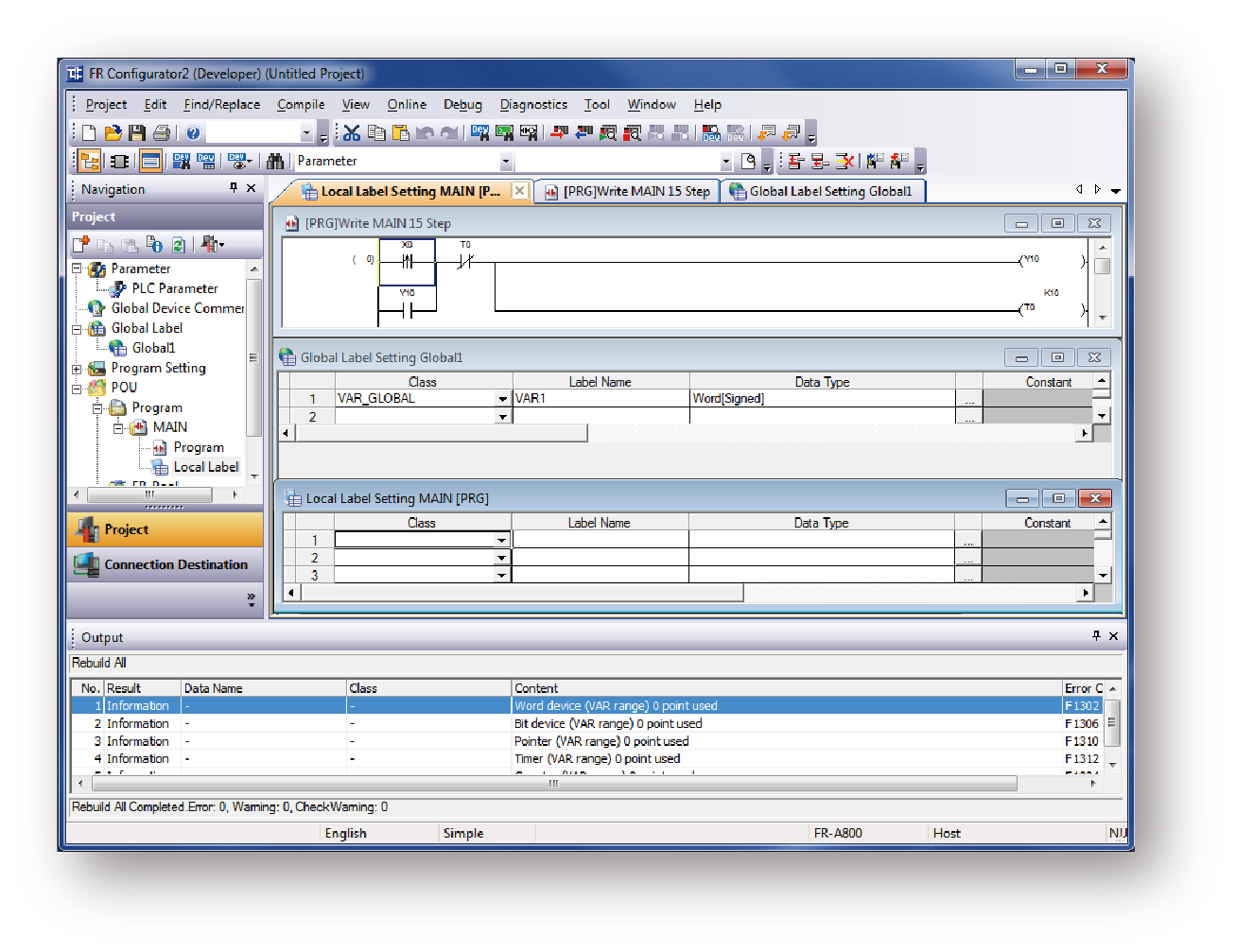

Sequence control (Developer function)
The Developer function is used for creating sequence programs and writing them to the inverter to enable the use of the PLC function of the inverter.
![](./img/config2_04.png)
![](./img/config2_04b.png)
