FR-A800-GN Inverter and FR-A8NCG Plug-in Option for CC-Link IE TSN Communication Function

Features

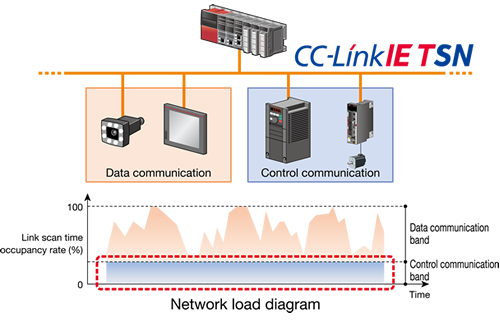

With the CC-Link IE TSN (Time Sensitive Networking) communication function, data can be transmitted to IT systems while performing real-time cyclic communication control.

CC-Link IE TSN is also supported by FR-A800/FR-F800 standard inverters with the plug-in option FR-A8NCG.

Station numbers are easily set with rotary switches.

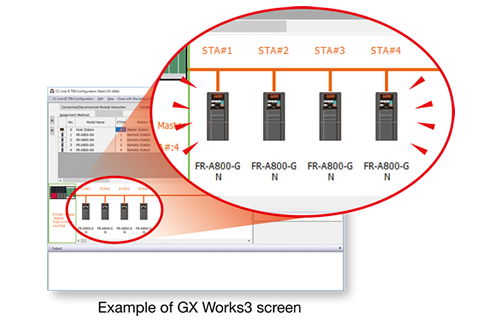

Automatic detection of the network configuration by the engineering software (GX Works3) reduces the startup time.
Problems at startup such as line faults can be discovered at a glance with the diagnostic function.

Time synchronization allows for real-time monitoring.
This enables trouble analysis to be performed right after an error has occurred.
FR Configurator2 can be connected via Ethernet, which makes maintenance work easier.

The communication specification varies depending on the specification of the master.

Item		Description
Transmission speed		1 Gbps
Minimum synchronization cycle		125.00 μs
Authentication class		Authentication class B
Synchronization function		Time sharing method
Communication method		Compliant with IEEE 802.1AS and IEEE 1588v2
Maximum number of connected units		121 units (sum of master and slave stations)
Topology		Line, star^1、ring^2、or a combination of line and star
Connection cable		Ethernet cable (IEEE 802.3 1000BASE-T compliant cable or ANSI/TIA/EIA-568-B (Category 5e) compliant shielded 4-pair branched cable)
Connector		Shielded RJ-45
Node type		Remote station
Maximum distance between nodes		100m
Maximum number of branches		No upper limit within the same Ethernet system
Maximum cyclic size (of one node)	RX	64 bits
	RY	64 bits
	RWr	128 words
	RWw	128 words

*1：To connect only the authentication class B devices in the wye connection, use a CC-Link IE TSN compatible switching hub (TSN hub).

*2：Ring topology will be supported later.
