Inverters-FREQROL-F Series　-FREQROL-F800- Model Configuration

Wide range of lineup

Inverter

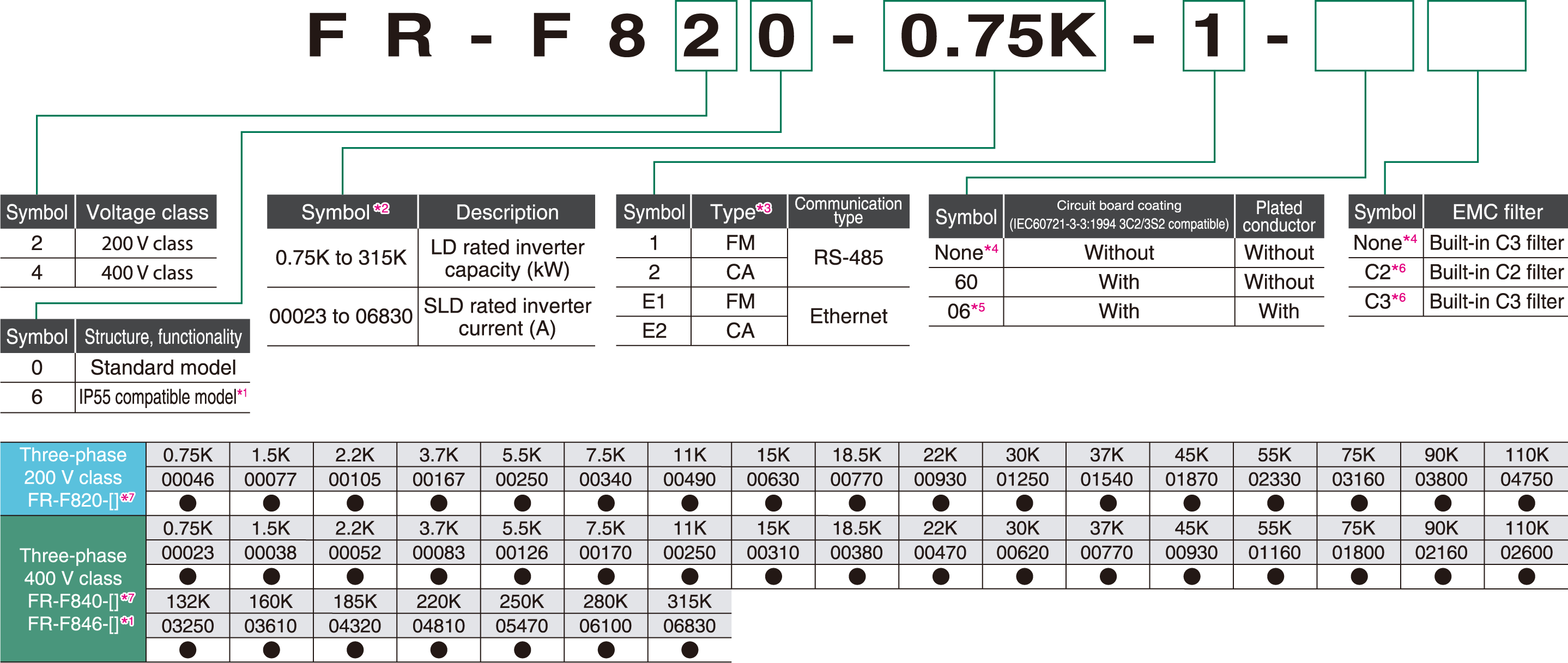

Standard model

●: Released model

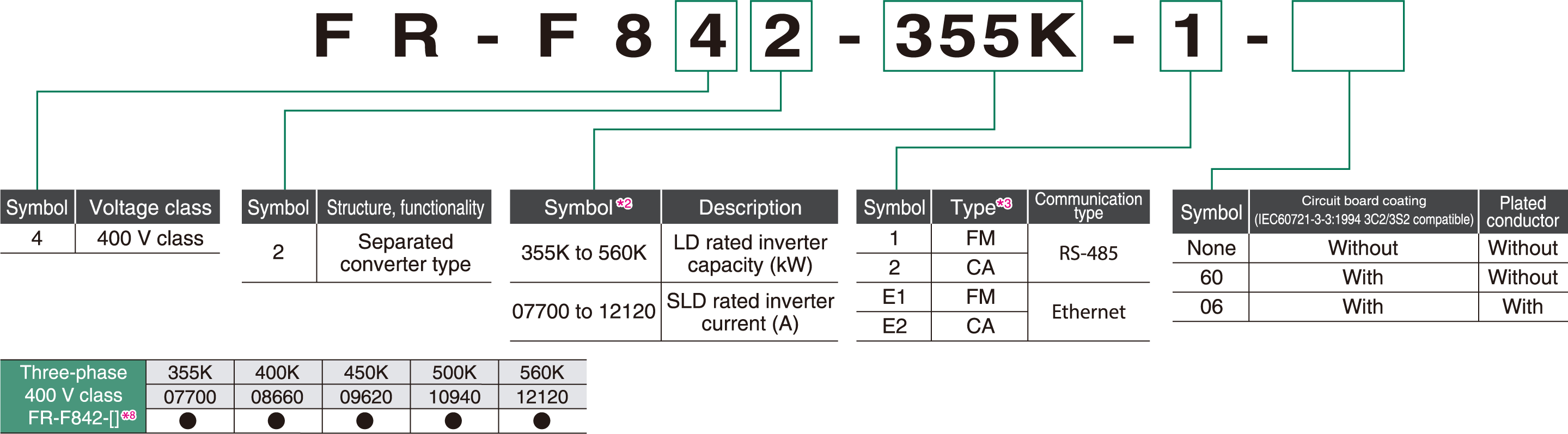

Separated converter type

●: Released model

  • *1Applicable for the FR-F846-03610(160K) or lower.
  • *2Models can be alternatively indicated with the inverter rated current (SLD rating).
  • *3Specification differs by the type as follows.
Type Monitor output Initial setting
Built-in
EMC filter		 Control
logic		 Rated
frequency		 Pr.19
Base frequency
voltage		 Pr.570
Multiple rating
setting
FM
(terminal FM equipped model) 		Terminal FM (pulse train output)
Terminal AM (analog voltage output (0 to ±10 VDC)) 		OFF Sink logic
 60Hz
 9999
(same as the power supply voltage)		 1
(LD rating)
CA
(terminal CA equipped model) 		Terminal CA (analog current output (0 to 20 mADC))
Terminal AM (analog voltage output (0 to ±10 VDC)) 		ON Source logic 50Hz 8888
(95% of the power supply voltage)		 0
(SLD rating)
  • *4Applicable for the standard model only.
  • *5Available for the IP55 compatible model, the FR-F820-00340(7.5K) or higher, and the FR-F840-00170(7.5K) or higher.
  • *6Applicable for the IP55 compatible model only.
  • *7Always install the converter unit (FR-CC2). (Not required when a high power factor converter (FR-HC2) is used)For the FR-F820-03160(75K) or higher, and the FR-F840-01800(75K) or higher, always connect a DC reactor (FR-HEL), which is available as an option.
    Select a DC reactor according to the applied motor capacity.
  • *8Always install the converter unit (FR-CC2). (Not required when a high power factor converter (FR-HC2) is used)

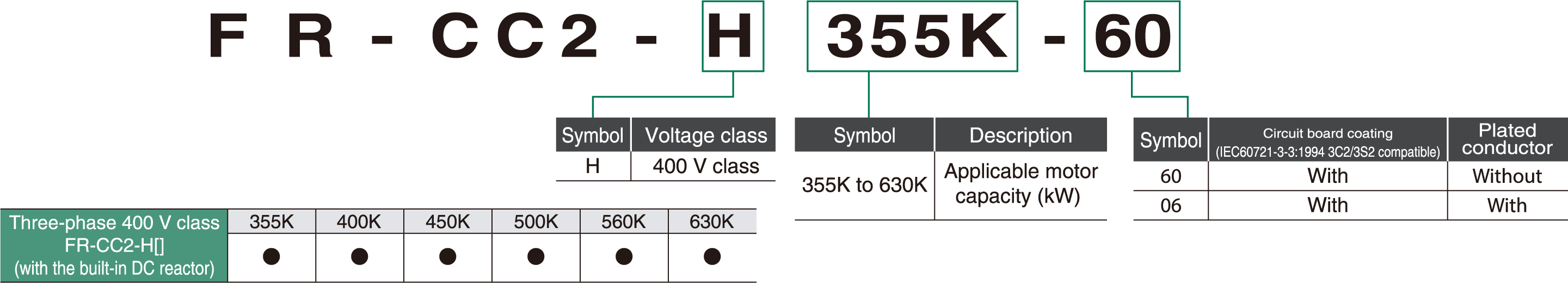

Converter unit

●: Released model

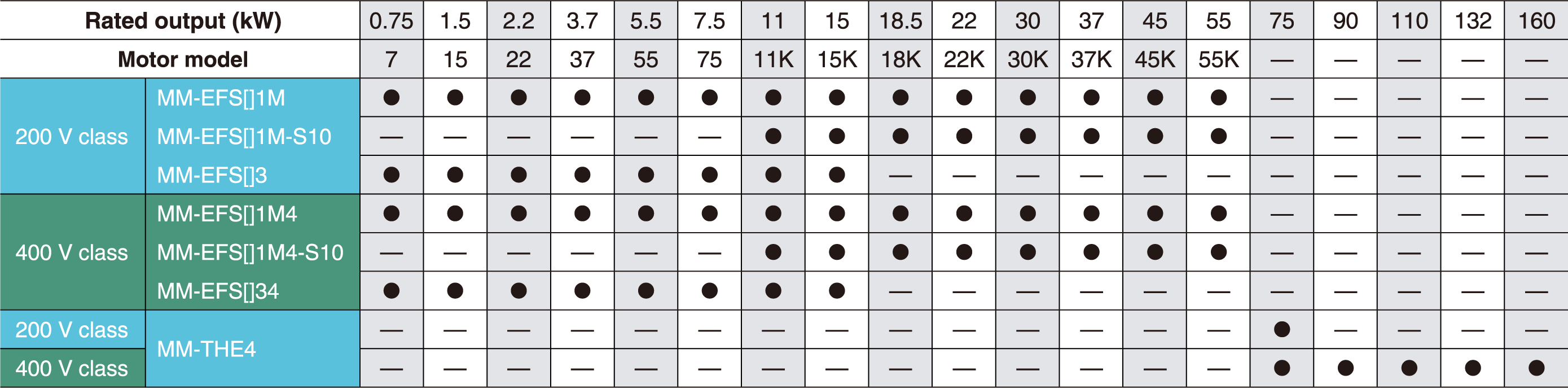

Premium high-efficiency IPM motor

55 kW or lower

●: Released model

  • *1The motor can also be used for applications which required the rated speed of 1800 r/min.
  • *2The outdoor type and class B are semi-standard models.

75 kW or higher

  • The motor can be used for applications which required the rated speed of 1500 r/min and 1800 r/min.
  • For dedicated motors such as the outdoor type, the long-axis type, the flange type, the waterproof outdoor type,
    and the corrosion proof type, contact your sales representative.

●: Released model –: Not applicable

Note:

  • The IPM motor MM-EFS/MM-THE4 series cannot be driven by the commercial power supply.
  • For IPM motors, the wiring length is 100 m maximum.
  • Only one IPM motor can be connected to an inverter.
  • For belt drive application of the 11 kW or higher MM-EFS series IPM motor with the 1500 r/min specification, use a dedicated belt drive motor.
    The 11 kW or higher motors with 3000 r/min specification are designed for a direct connection only.
