Inverters-FREQROL-F Series　-FREQROL-F700PJ- Wire and Space Saving

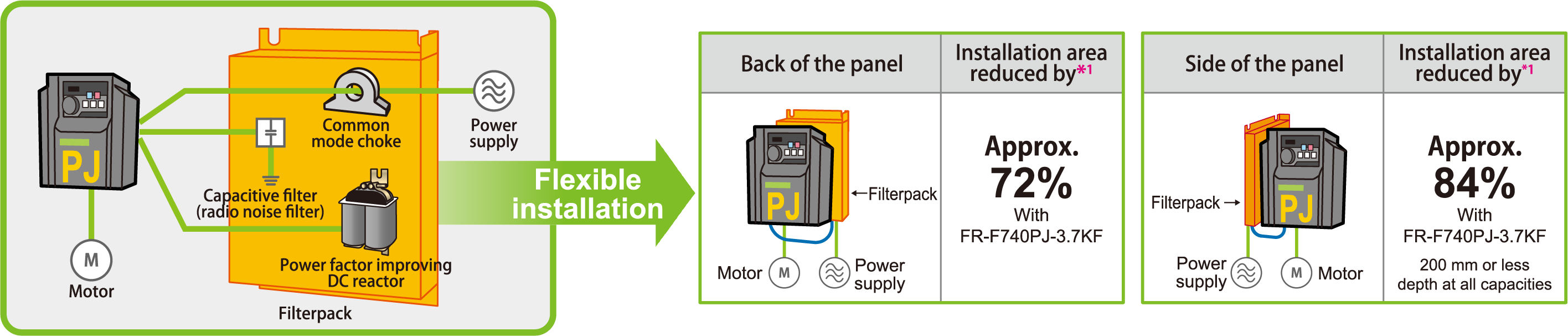

A lineup of Filterpack models available

  • The power factor improving DC reactor, common mode choke (line noise filter), and capacitive filter (radio noise filter) are all essential for air conditioning applications, and all of these are included in a Filterpack. The Filterpack inverter models (FR-F7☐0PJ-☐F) are also available. The option wiring, which was necessary in the past, is no longer required.
  • A Filterpack allows flexible installation and various layouts in the enclosure. Smaller space is required for installation.
  • *1The area required for the separate installation of power factor improving DC reactor, common mode choke (line noise filter), and capacitive filter (radio noise filter) with clearance around them.

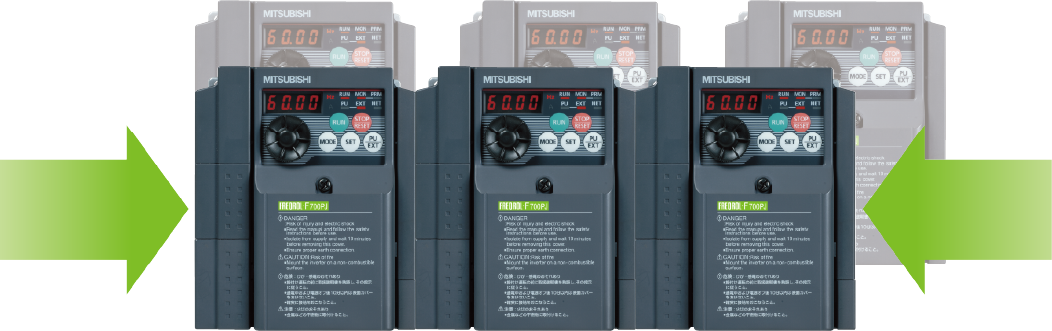

Space saving by the side-by-side installation

  • Side-by-side installation is possible*2 and requires less space.
    A DIN rail installation attachment (FR-UDA☐☐) option can be installed.
  • *1Keep the surrounding air temperature of the inverter at 40 °C maximum.Side-by-side installation is not available for Filterpacks.
