Inverters-FREQROL-E Series　-FREQROL-E800- Model Configuration

Model Configuration

Model

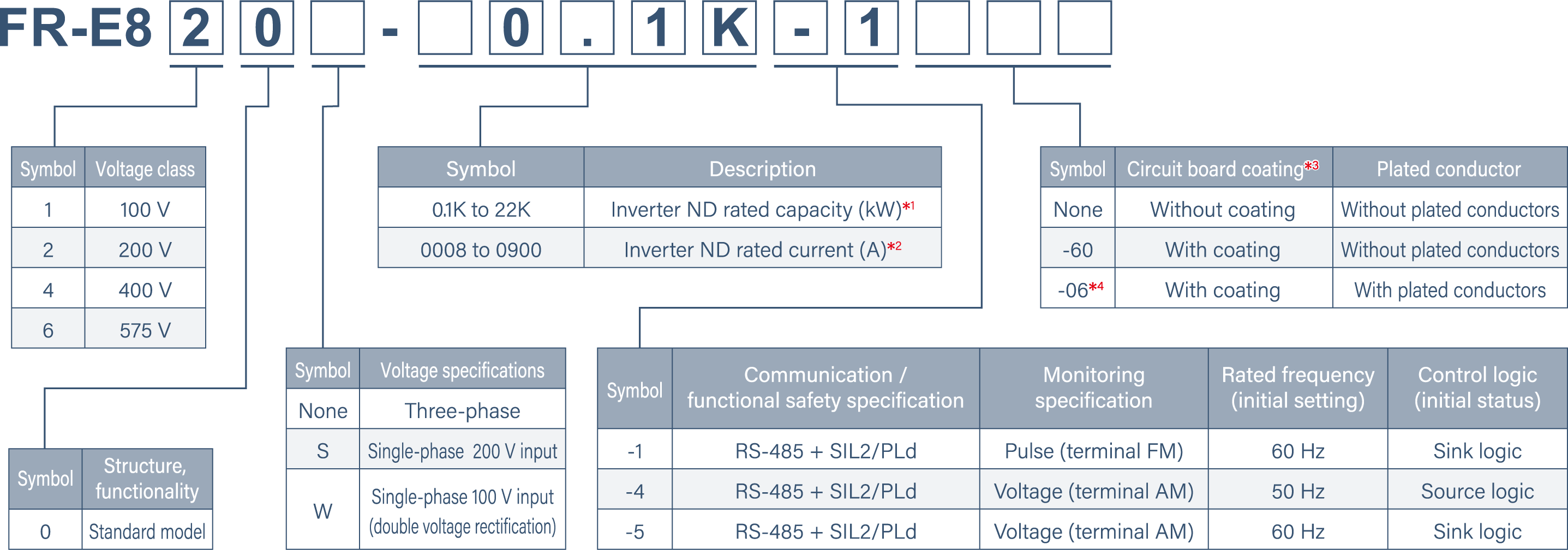

Standard model

  • *1Combination with the specification type -1(-60/-06) or -5 is available.
    (When the kW indication is required for the product, purchase the model with a suffix "-5" and change the initial settings with reference to the Instruction Manual.
    (Refer to the Instruction Manual (Connection) for the switching of the control logic of the inverter, and the Instruction Manual (Function) for the rated frequency.))
  • *2Combination with the specification type -4-60, -4-06, -5-60, or -5-06 is available.
  • *3Compatible with IEC 60721-3-3:1994 3C2.
  • *4Applicable for the FR-E820-0470(11K) or higher, and the FR-E840-0380(18.5K) or higher.

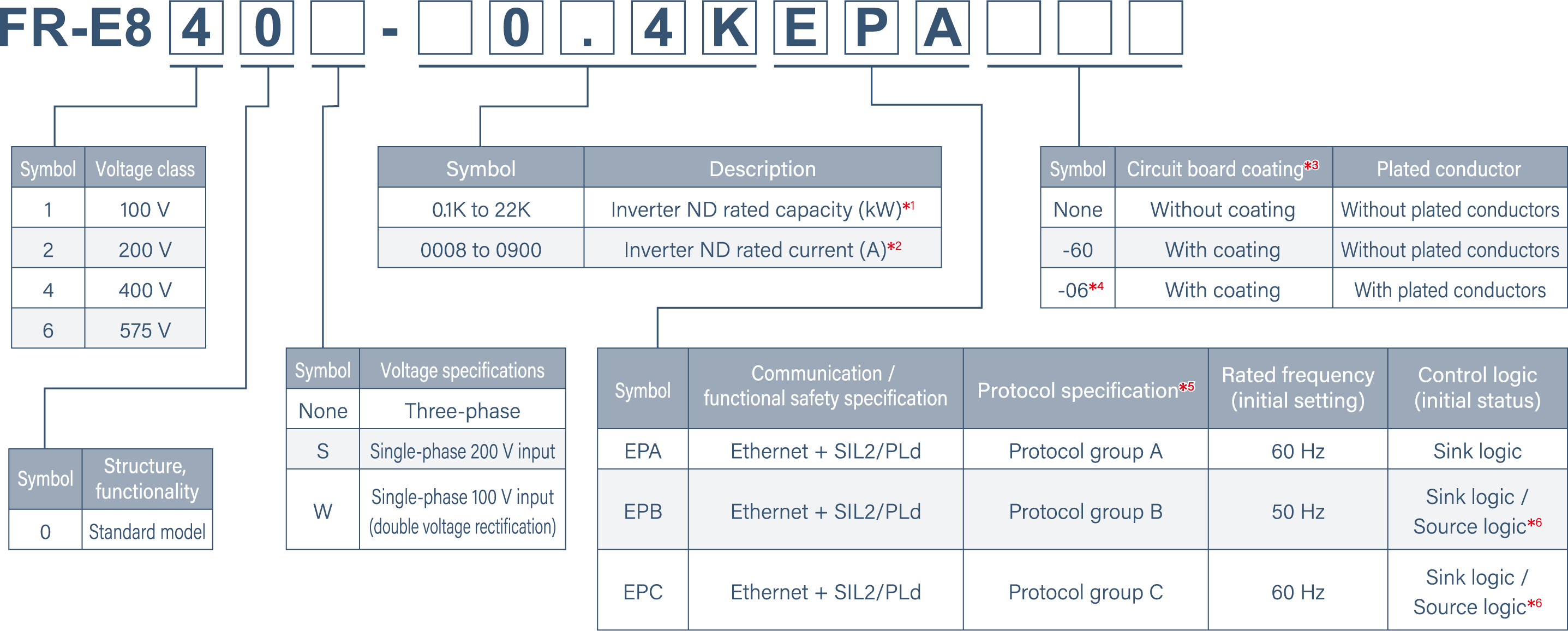

Ethernet model

  • *1Combination with the specification type EPA(-60/-06) or EPB(-60/-06) is available.
  • *2Combination with the specification type EPA-60, EPA-06, EPB-60, or EPB-06 is available.
  • *3Compatible with IEC 60721-3-3:1994 3C2.
  • *4Applicable for the FR-E820-0470(11K) or higher, and the FR-E840-0380(18.5K) or higher.
  • *5Selectable protocols differ depending on the group.
    Protocol group A: CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, and BACnet/IP
    Protocol group B: CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, and PROFINET
    Protocol group C: EtherCAT
  • *6The initial status of the control logic differs depending on the inverter model.
    Sink logic for the models indicated with the applicable motor capacity (kW)
    Source logic for the models indicated with the rated current (A)

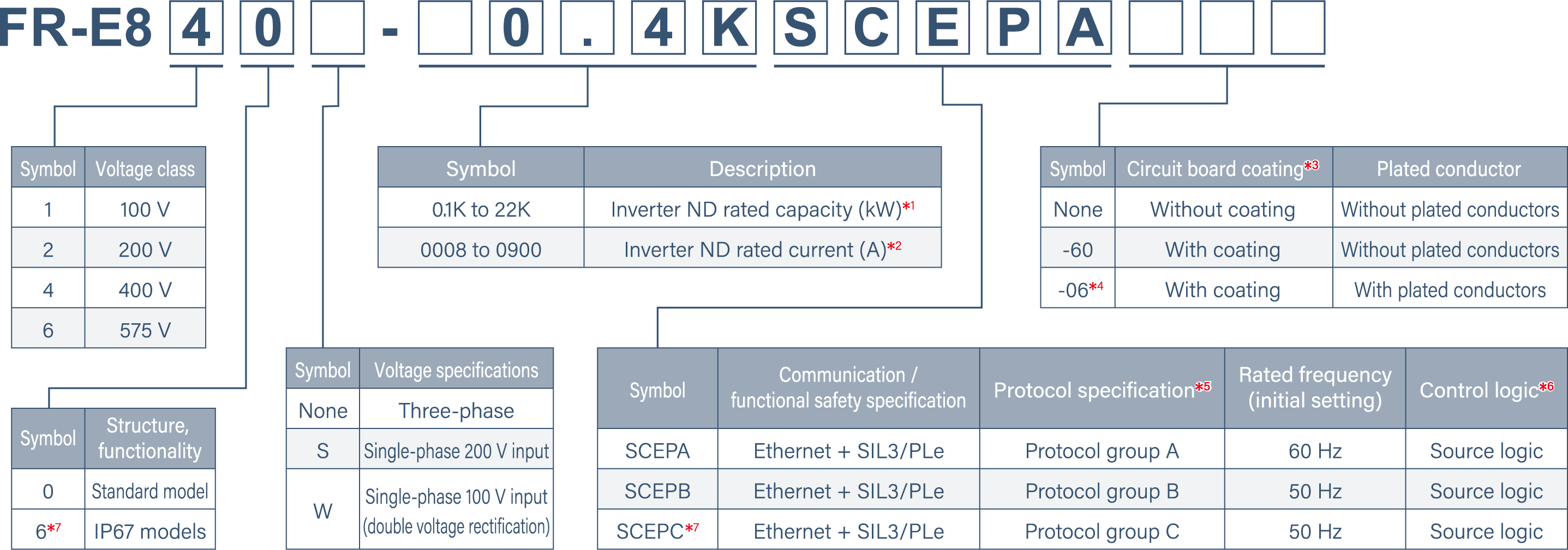

Safety communication model

  • *1Combination with the specification type SCEPA(-60/-06) or SCEPB(-60/-06) is available.
  • *2Combination with the specification type SCEPA-60, SCEPA-06, SCEPB-60, or SCEPB-06 is available.
  • *3Compatible with IEC 60721-3-3:1994 3C2
  • *4Applicable for the FR-E820-0470(11K) or higher, and the FR-E840-0380(18.5K) or higher.
  • *5Selectable protocols differ depending on the group.
    Protocol group A: CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, EtherNet/IP, and BACnet/IP
    Protocol group B: CC-Link IE TSN, CC-Link IE Field Network Basic, MODBUS/TCP, and PROFINET
    Protocol group C: EtherCAT
  • *6The control logic is fixed to the source logic.
  • *7To be released

Capacity table

Three-phase 200 V 0.1K 0.2K 0.4K 0.75K 1.5K 2.2K 3.7K 5.5K 7.5K 11K 15K 18.5K 22K
0008 0015 0030 0050 0080 0110 0175 0240 0330 0470 0600 0760 0900
FR-E820-[]K（E/SCE） ● ● ● ● ● ● ● ● ● ● ● ● ●
Three-phase 400 V ― ― 0.4K 0.75K 1.5K 2.2K 3.7K 5.5K 7.5K 11K 15K 18.5K 22K
― ― 0016 0026 0040 0060 0095 0120 0170 0230 0300 0380 0440
FR-E840-[]K（E/SCE） ― ― ● ● ● ● ● ● ● ● ● ● ●
Three-phase 575 V ― ― ― 0.75K 1.5K 2.2K 3.7K 5.5K 7.5K ― ― ― ―
― ― ― 0017 0027 0040 0061 0090 0120 ― ― ― ―
FR-E860-[]K（E/SCE） ― ― ― ● ● ● ● ● ● ― ― ― ―
Single-phase 200 V 0.1K 0.2K 0.4K 0.75K 1.5K 2.2K ― ― ― ― ― ― ―
0008 0015 0030 0050 0080 0110 ― ― ― ― ― ― ―
FR-E820S-[]K(E/SCE) ● ● ● ● ● ● ― ― ― ― ― ― ―
Single-phase 100 V 0.1K 0.2K 0.4K 0.75K ― ― ― ― ― ― ― ― ―
0008 0015 0030 0050 ― ― ― ― ― ― ― ― ―
FR-E810W-[]K(E/SCE) ● ● ● ● ― ― ― ― ― ― ― ― ―

●：Released,　―：Not applicable
