FA Application Package iQ Monozukuri

Products in the iQ Monozukuri CONVERTING package

Product name	Model	Number of licenses
iQ Monozukuri CONVERTING	AP20-CNV002AA-MA	1
	AP20-CNV002AA-MB	5
	AP20-CNV002AA-MC	10
	AP20-CNV002AA-MD	15
	AP20-CNV002AA-ME	20
	AP20-CNV002AA-ML	50

Converting package DVD (converting library, GOT screen examples, program examples, manuals, and converting simulator) and a license certificate.

Supported products (products prepared by users)

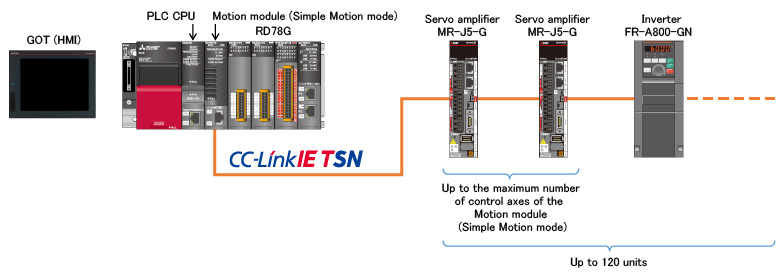

System configuration with a Motion module (Simple Motion mode)

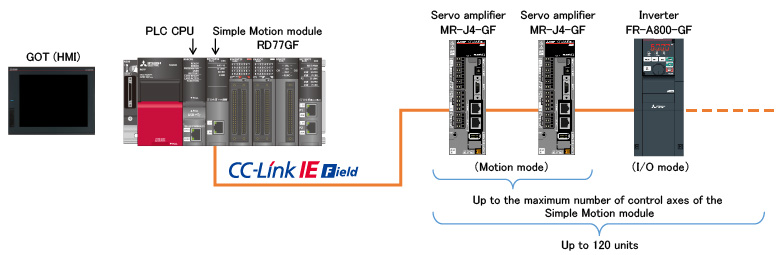

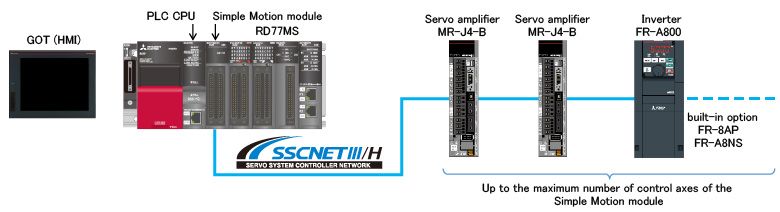

System configuration with a Simple Motion module

or

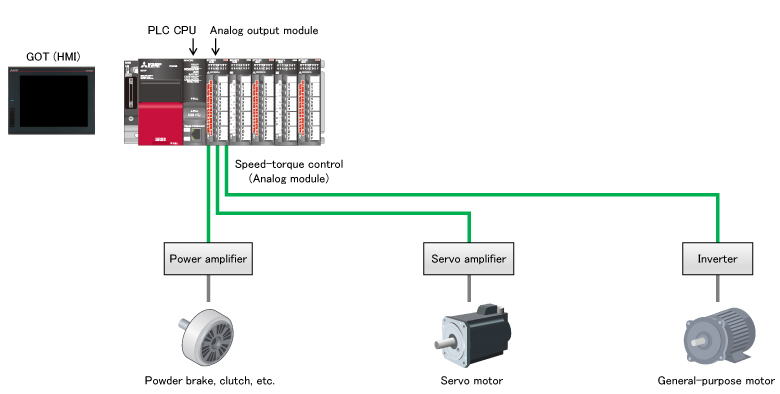

System configuration without a Motion Module/Simple Motion module

List of supported hardware and software

Item	Model	Remarks
PLC CPU modules	R_CPU, R_ENCPU	Use the module with a firmware version of "25" or later. R16CPU or a PLC CPU with higher capacity and specifications is recommended.
Motion Module (Simple Motion mode)	RD78G	-
Simple Motion modules	RD77MS, RD77GF	-
Human-Machine Interfaces-GOT	GOT2000 Series	-
Programmable controller engineering software	MELSOFT GX Works3	Refer to the manuals for the compatible software version.
HMI/GOT screen design software	MELSOFT GT Works3
Application Integrated Management Software	MELSOFT iQ AppPortal

Select driving devices such as AC servos, inverters, powder brakes, and sensors such as tension detectors according to the user's machine configuration.
