Controllers MELSEC iQ-R Series Product features -Temperature input module, Temperature control module-

Temperature input module, Temperature control module

The temperature input module is ideal for temperature measurement and the temperature control module is for applications requiring highly stable and responsive temperature control. The modules include thermocouple, RTD input types and temperature control modules which are available with or without heater disconnection detection.

Temperature input<sup>Temperature input module</sup>

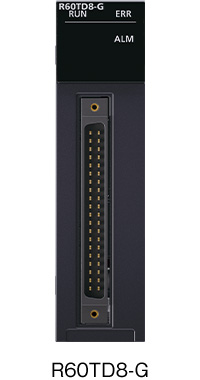

R60TD8-G
40-pin connector

Thermocouple input: 8-channel

R60RD8-G
40-pin connector

RTD input: 8-channel

Temperature control<sup>Temperature control module</sup>

Without heater disconnection detection

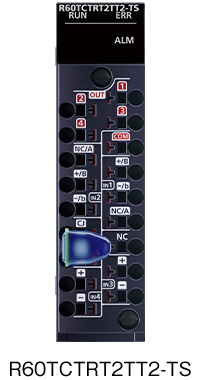

R60TCTRT2TT2-TS
Spring-clamp terminal block

Thermocouple input: 2-channelThermocouple/RTD input (shared):
2-channel

R60TCTRT2TT2
Screw terminal block

Thermocouple input: 2-channelThermocouple/RTD input (shared):
2-channel

R60TCRT4-TS
Spring-clamp terminal block

RTD input: 4-channel

R60TCRT4
Screw terminal block

RTD input: 4-channel

With heater disconnection detection

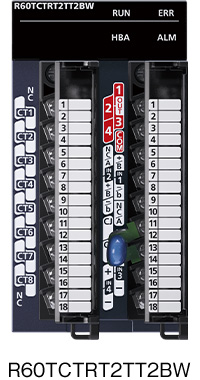

R60TCTRT2TT2BW
Screw terminal block

Thermocouple input: 2-channelThermocouple/RTD input (shared):
2-channel

R60TCRT4BW
Screw terminal block

RTD input: 4-channel
