Product features -Network-

MODBUS®

Connect with a large variety of devices using the MODBUS® interface module

MODBUS® interface module

  • RS-232 1ch, RS-422/485 1ch

    QJ71MB91

  • 10BASE-T/100BASE-TX

    QJ71MT91

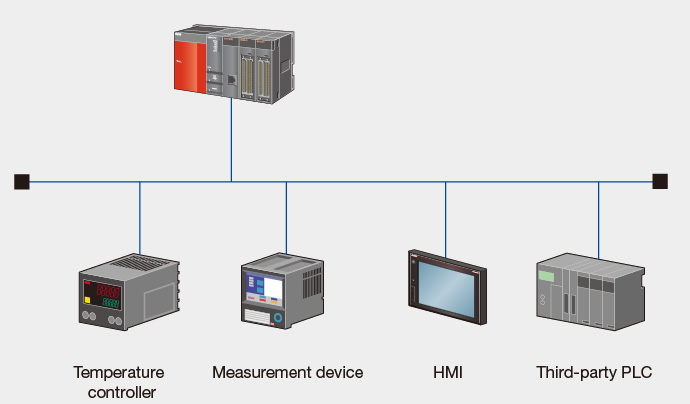

  • Using the master function, communicate with third-party MODBUS® compatible slave devices.
  • Slave mode is also supported, which allows communication with other MODBUS® masters such as third-party programmable controllers.
  • Using the QJ71MB91 synchronization function, a master station may be connected to CH1 (RS-232) and communicate with multiple slaves connected to the CH2 (RS‑422/485) interface.
  • The QJ71MT91 module is able to operate using the master and slave functions simultaneously.
