Safety Remote I/O Modules

• Remote I/O modules that support safety functions of CC-Link IE Field Network
• Performs safety control when used together with the MELSEC iQ-R Series safety CPU

Safety protocol versions and safety communication standards

Safety communication of the CC-Link IE Field Network complies with safety communication standards (IEC61784-3). Please note that said standards of different publication year applies to each safety protocol version.

Safety protocol versions vary depending on the product types and firmware versions.
Please refer to the connectability of the master stations and safety remote I/Os below.
For how to check firmware versions, please refer to the relevant product manuals.

Connectability of the master stations and safety remote I/Os

• Safety protocol versions: 1 and 2

  Master station

  (safety CPU module): firmware version 29 or later
  (master module RJ71GF11-T2): firmware version 70 or later

• Safety protocol version: 1

  Master station

  (safety CPU module): firmware versions 01 to 28
  (master module RJ71GF11-T2): firmware versions 06 to 69

• Safety protocol version: 2

  Safety remote I/O: Model name ends with “-S1”
  NZ2GNS12A2-14DT
  NZ2GNS12A2-16DTE

• Safety protocol version: 1

  Safety remote I/O: Model name does not end with “-S1”

●: System configuration is possible;○: possible with constraints^*1;-: not possible

Connected device (master station)	Safety remote I/O
Firmware version of connected device		+
	●	○*1	○*1
	-	-	○*1

• *1.Although a system can be configured, it is not possible to newly acquire a certification from a third-party certification body. As compliance with the latest standard is required to acquire a certification, it is recommended that only products that support safety protocol version 2 be used when acquiring a certification.

Safety protocol version: 2

Safety input modules

Spring-clamp terminal block type

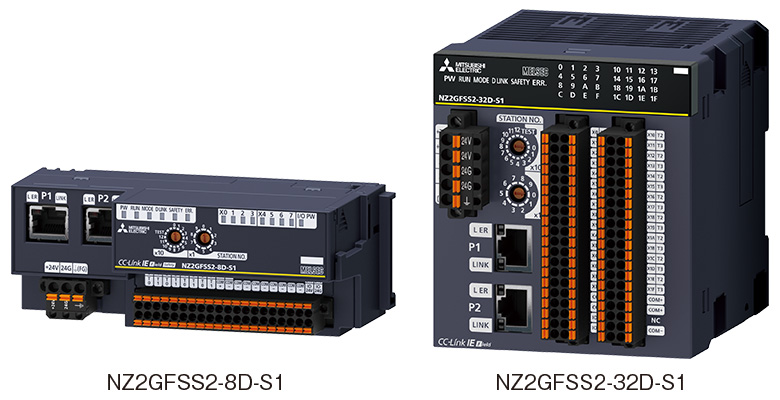

• NZ2GFSS2-8D-S1NEW
• NZ2GFSS2-32D-S1NEW

Model	Input type DC input	Input points	Rated input voltage/ current	Wiring type	Extension module connectability	Connectable device
NZ2GFSS2-8D-S1	Negative common	Single wiring: 8 points Double wiring: 4 points	24 V DC (7 mA)	2-wire	●	●	-
NZ2GFSS2-32D-S1	Negative common	Single wiring: 32 points Double wiring: 16 points	24 V DC (6 mA)	2-wire	●	●	-

Safety protocol version: 2

Safety output module

Spring-clamp terminal block type

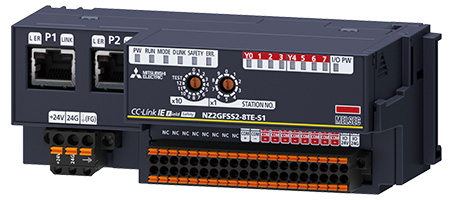

• NZ2GFSS2-8TE-S1NEW

Model	Output type Transistor output	Output points	Rated load voltage/ Max. load current	Wiring type	Extension module connectability	Connectable device
NZ2GFSS2-8TE-S1	Source + source	Single wiring: 8 points Double wiring: 4 points	24 V DC (0.5 A/point)	2-wire	●	●	-

Safety protocol version: 2

Safety I/O combined module

Spring-clamp terminal block type

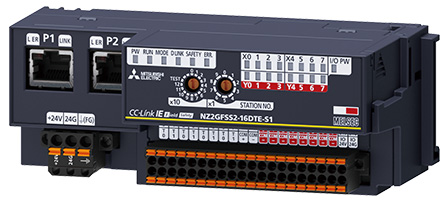

• NZ2GFSS2-16DTE-S1NEW

Model	Input type DC input	Input points	Rated input voltage/ current	Output type Transistor output	Output points	Rated load voltage/ Max. load current	Wiring type	Extension module connectability	Connectable device
NZ2GFSS2-16DTE-S1	Negative common	Single wiring: 8 points Double wiring: 4 points	24 V DC (7 mA)	Source + source	Single wiring: 8 points Double wiring: 4 points	24 V DC (0.5 A/ point)	2-wire	●	●	-

Extension safety output module

Spring-clamp terminal block type

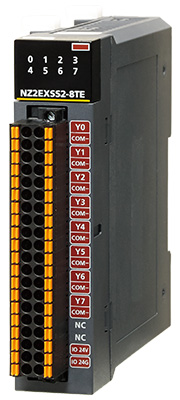

• NZ2EXSS2-8TE

• *2.This product is connectable with safety input modules (NZ2GFSS2-32D, NZ2GFSS2-32D-S1).

Safety protocol version: 2

Waterproof/dustproof type (IP67) I/O combined modules

Waterproof connector (screw lock)

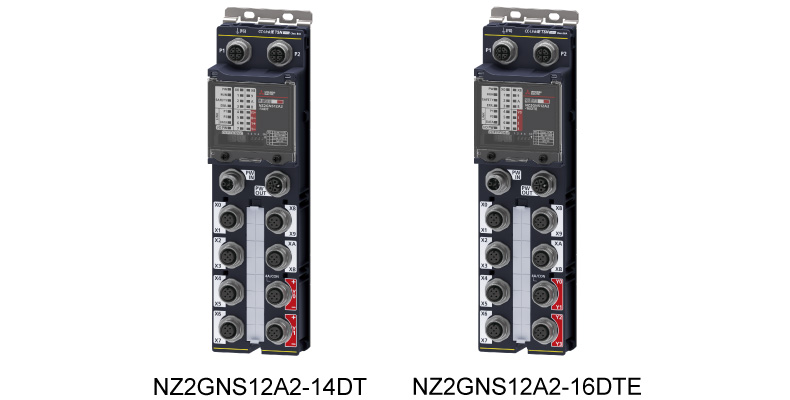

• NZ2GNS12A2-14DTNEW
• NZ2GNS12A2-16DTENEW

Model	Input type DC input	Input points	Rated input voltage/ current	Output type Transistor output	Output points	Rated load voltage/ Max. load current	Wiring type	Extension module connectability	Connectable device
NZ2GNS12A2-14DT	Negative common	Single wiring: 12 points Double wiring: 6 points	24 V DC (6.8 mA)	Source + sink	Single wiring: not possible Double wiring: 2 points	24 V DC (2 A/point, 4 A/point 6 A/common)*3	2-wire	-	●	-
NZ2GNS12A2-16DTE	Negative common	Single wiring: 12 points Double wiring: 6 points	24 V DC (6.8 mA)	Source + source	Single wiring: 4 points Double wiring: 2 points	24 V DC (2 A/point, 4 A/point 8 A/common)*3	2-wire	-	●	-

• *3.Maximum load current specifications may vary depending on the output terminals. For more information, please refer to the relevant product manual.

Safety protocol version: 1

Safety input modules

Spring-clamp terminal block type

• NZ2GFSS2-8D
• NZ2GFSS2-32D

Model	Input type DC input	Input points	Rated input voltage/ current	Wiring type	Extension module connectability	Connectable device
NZ2GFSS2-8D	Negative common	Single wiring: 8 points Double wiring: 4 points	24 V DC (7 mA)	2-wire	●	●	●
NZ2GFSS2-32D	Negative common	Single wiring: 32 points Double wiring: 16 points	24 V DC (6 mA)	2-wire	●	●	●

Safety protocol version: 1

Safety output module

Spring-clamp terminal block type

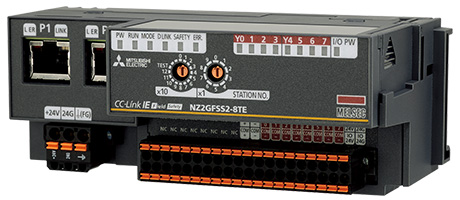

• NZ2GFSS2-8TE

Model	Output type Transistor output	Output points	Rated load voltage/ Max. load current	Wiring type	Extension module connectability	Connectable device
NZ2GFSS2-8TE	Source + source	Single wiring: 8 points Double wiring: 4 points	24 V DC (0.5 A/point)	2-wire	●	●	●

Safety protocol version: 1

Safety I/O combined module

Spring-clamp terminal block type

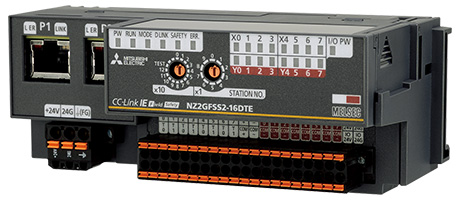

• NZ2GFSS2-16DTE

Model	Input type DC input	Input points	Rated input voltage/ current	Output type Transistor output	Output points	Rated load voltage/ Max. load current	Wiring type	Extension module connectability	Connectable device
NZ2GFSS2-16DTE	Negative common	Single wiring: 8 points Double wiring: 4 points	24 V DC (7 mA)	Source + source	Single wiring: 8 points Double wiring: 4 points	24 V DC (0.5 A/point)	2-wire	●	●	●
