CC-Link IE Line Up

Waterproof/dustproof Type (IP67) Remote Modules

CC-Link IE Field Network
Waterproof/dustproof type (IP67) remote modules

  • Complies with IP67 rating. A control panel is no longer necessary, saving on hardware cost and space
  • Supporting the maximum load current of 4 A/point, a large load can be directly driven

Input modules

Waterproof connector (screw lock)

Model Input type
DC input
Input points Rated input voltage/current Wiring type
NZ2GN12A4-16D Positive common 16 points 24 V DC (7.3 mA) 2- to 4-wire
NZ2GN12A4-16DE Negative common 16 points 24 V DC (7.3 mA) 2- to 4-wire

Output modules

Waterproof connector (screw lock)

Model Output type
Transistor output
Output points Rated load voltage/
Max. load current
Wiring type
NZ2GN12A2-16T Sink 16 points 12/24 V DC
(2 A/point, 4 A/point,
12 A/common)*1
2-wire
NZ2GN12A2-16TE Source 16 points 12/24 V DC
(2 A/point, 4 A/point,
12 A/common)*1
2-wire

I/O combined modules

Waterproof connector (screw lock)

Model Input type
DC input
Input
points
Rated input voltage/
current
Output type
Transistor output
Output
points
Rated load voltage/
Max. load current
Wiring type

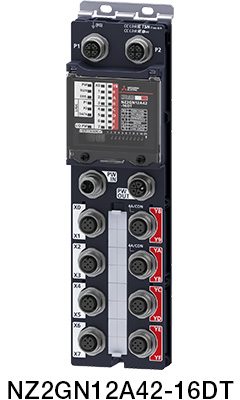

NZ2GN12A42-16DT Positive
common
8 points 24 V DC
(7.3 mA)
Sink 8 points 12/24 V DC
(2 A/point, 4 A/point,
12 A/common)*1
2- to 4-wire (input)
2-wire (output)
NZ2GN12A42-16DTE Negative
common
8 points 24 V DC
(7.3 mA)
Source 8 points 12/24 V DC
(2 A/point, 4 A/point,
12 A/common)*1
2- to 4-wire (input)
2-wire (output)
  • *1.Maximum load current specifications may vary depending on the type of output terminal. For details, please refer to the relevant product manual.
