CC-Link IE Line Up
Human-Machine Interfaces (HMIs)
HMI GOT2000 Series

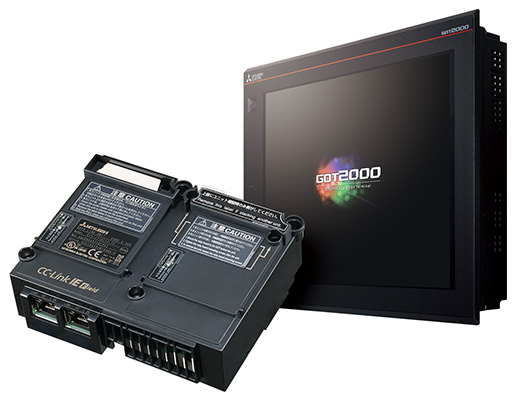

CC-Link IE Field Network communication unit set
- This product-set includes a GOT2000 Series GOT (GT27 or GT25*1) and a CC-Link IE Field Network communication unit*2
- Integrates the GOT (HMI) into a system as a CC-Link IE Field Network intelligent device station
- *1.Not supported by GT2505, GT2512-WX, GT2510-WX, GT2507-W, GT2507T, GT2506HS, and GT2505HS.
- *2.The CC-Link IE Field Network communication unit (GT15-J71GF13-T2) is also available separately. Applicable models are the same with the communication unit set.
For details, please refer to the “GOT 2000 Series catalog (L(NA)08270ENG)”.
| Model*3 | Screen size | Panel color | Power supply | Multi-touch gesture functions |
|---|---|---|---|---|
| GT27 | ||||
| GT2715-XTBA-GF | 15″XGA | Black | 100…240 V AC | ● |
| GT2715-XTBD-GF | 15″XGA | Black | 24 V DC | ● |
| GT2712-ST□A-GF | 12.1″SVGA | Black/white | 100…240 V AC | ● |
| GT2712-ST□D-GF | 12.1″SVGA | Black/white | 24 V DC | ● |
| GT2710-STBA-GF | 10.4″SVGA | Black | 100…240 V AC | ● |
| GT2710-STBD-GF | 10.4″SVGA | Black | 24 V DC | ● |
| GT2710-VT□A-GF | 10.4″VGA | Black/white | 100…240 V AC | ● |
| GT2710-VT□D-GF | 10.4″VGA | Black/white | 24 V DC | ● |
| GT2708-STBA-GF | 8.4″SVGA | Black | 100…240 V AC | ● |
| GT2708-STBD-GF | 8.4″SVGA | Black | 24 V DC | ● |
| GT2708-VTBA-GF | 8.4″VGA | Black | 100…240 V AC | ● |
| GT2708-VTBD-GF | 8.4″VGA | Black | 24 V DC | ● |
| GT2705-VTBD-GF | 5.7″VGA | Black | 24 V DC | ● |
| GT25 | ||||
| GT2512-STBA-GF | 12.1″SVGA | Black | 100…240 V AC | - |
| GT2512-STBD-GF | 12.1″SVGA | Black | 24 V DC | - |
| GT2510-VT□A-GF | 10.4″VGA | Black/white | 100…240 V AC | - |
| GT2510-VT□D-GF | 10.4″VGA | Black/white | 24 V DC | - |
| GT2508-VT□A-GF | 8.4″VGA | Black/white | 100…240 V AC | - |
| GT2508-VT□D-GF | 8.4″VGA | Black/white | 24 V DC | - |
- *3.“□” in the model name denotes panel color (B (black)/W (white)). For further details about model name, please refer to the “GOT 2000 Series catalog (L(NA)08270ENG)”.

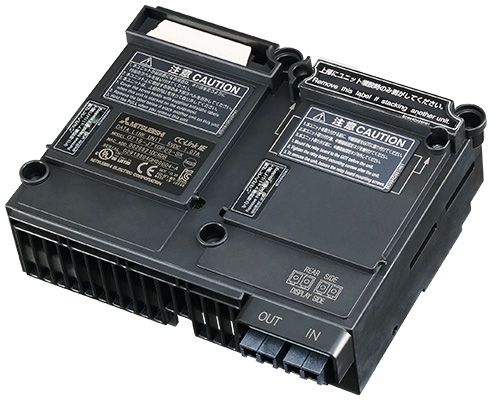

CC-Link IE Controller Network communication unit
- GOT (HMI) communication unit for CC-Link IE Controller Network
- Integrates a GOT (HMI) as a normal station of CC-Link IE Controller Network
Supported by: GT27, GT25*4
- *4.Not supported by GT2505, GT2512-WX, GT2510-WX, GT2507-W, GT2507T, GT2506HS, and GT2505HS.
