Programmable Controllers MELSEC
CC-Link IE Product Features

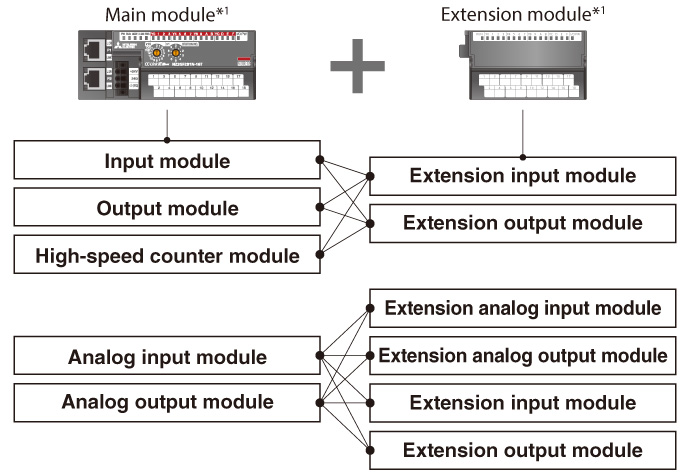

Flexible I/O point extension
Extension function
Easily increase I/O points by adding extension modules
Extension function
Extension modules are used to increase the number of available I/O points by simply attaching it to the main I/O module, such as digital I/O, analog I/O, and high-speed counter modules.

- *1.Extension modules which can connect multiple extension modules are available. For applicable modules, please refer to CC-Link IE Field Network block type remote modules.

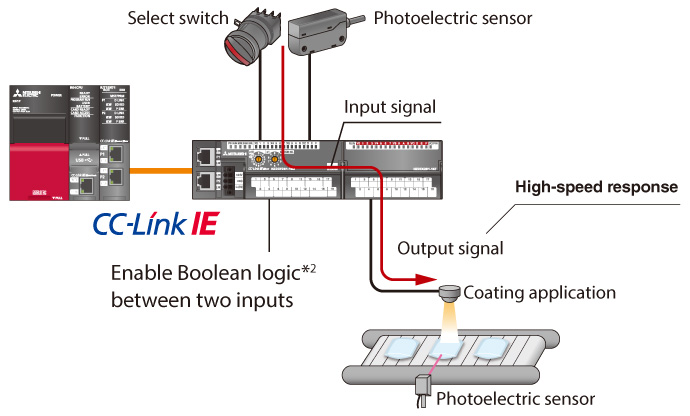

Fast logic function
Output control in accordance with the input status is possible in I/O module without going through the master station.

- *2.Both AND logic and OR logic are supported as an output state.
