Factory Automation

Software Tools NC Analyzer2

Servo/Spindle Adjustment

NC Analyzer2 helps to make servo parameter settings by measuring and analyzing machine characteristics.
Measurement and analysis can be performed by running a servo motor using the machining program for adjustment, or using the vibration signal.
This function can sample various types of data.

M800VM80VM800M80E80C80M700VM70VM700M70E70C70

Overview

●Servo parameter adjustment sounds complicated.

●I don't have a tool for measuring machine characteristics on hand.

Easy adjustment and
measurement with
NC Analyzer2!

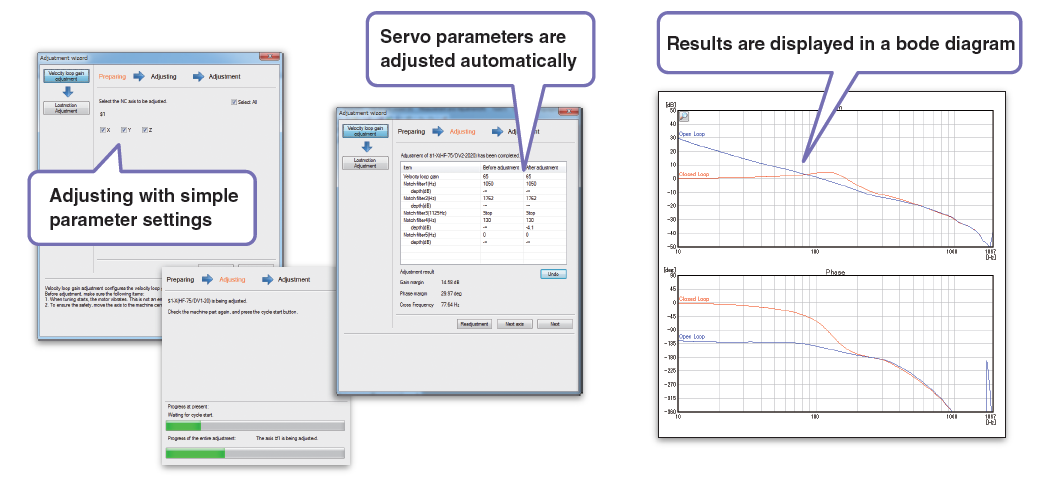

Adjusting with simple parameter settings | Servo parameters are adjusted automatically | Results are displayed in a bode diagram

Functions

  • Adjustment wizard
    Speed loop gain adjustment
    Notch filter setting
    Circularity adjustment
    Display adjustment progress
  • Graph
    Bode diagram measurement display
    Servo waveform measurement
    Display waveforms before/after adjustments
  • Project management
    Measured waveforms batch management

Specifications

Supported OS WindowsⓇ10/WindowsⓇ11
Supports 32- and 64-bit OS (WOW64 available for 64-bit)
Languages English/Japanese/Simplified Chinese/Traditional Chinese/Korean
CNC connections CNCs supported: M800V/M80V/M800/M80/E80/C80/M700V/M70V/M700/M70/E70/C70 Series
Connection configuration: Ethernet
