System configuration



Network configuration

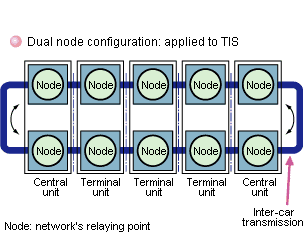

There are two types of inter-car transmission network configuration: the bi-directional loop type (Monitor/TIS) and the ladder type (TIMS).
Transmission speed: 2.5 Mbps (5.10 Mbps under development)
System redundancy: TIMS > TIS Monitoring
